Description

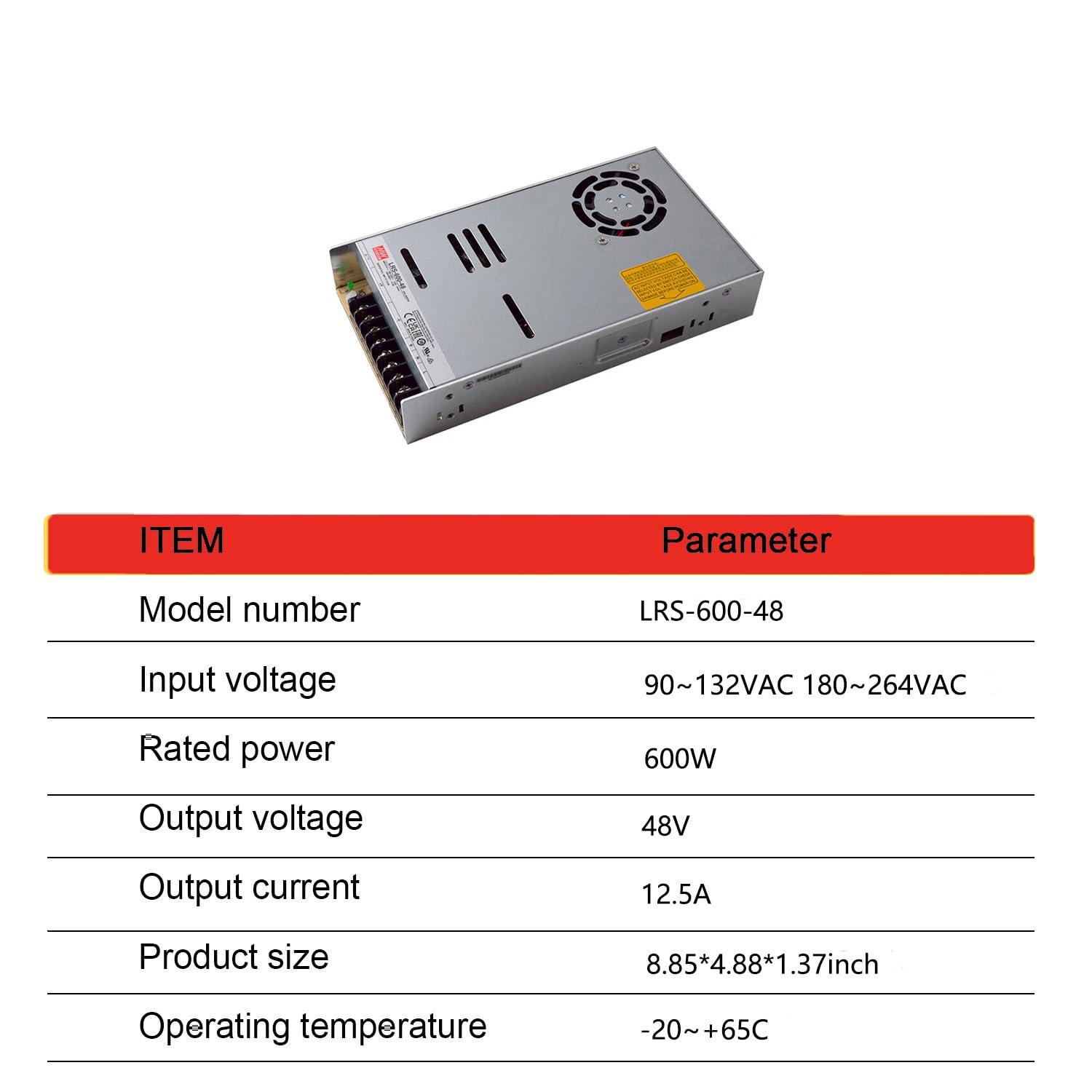

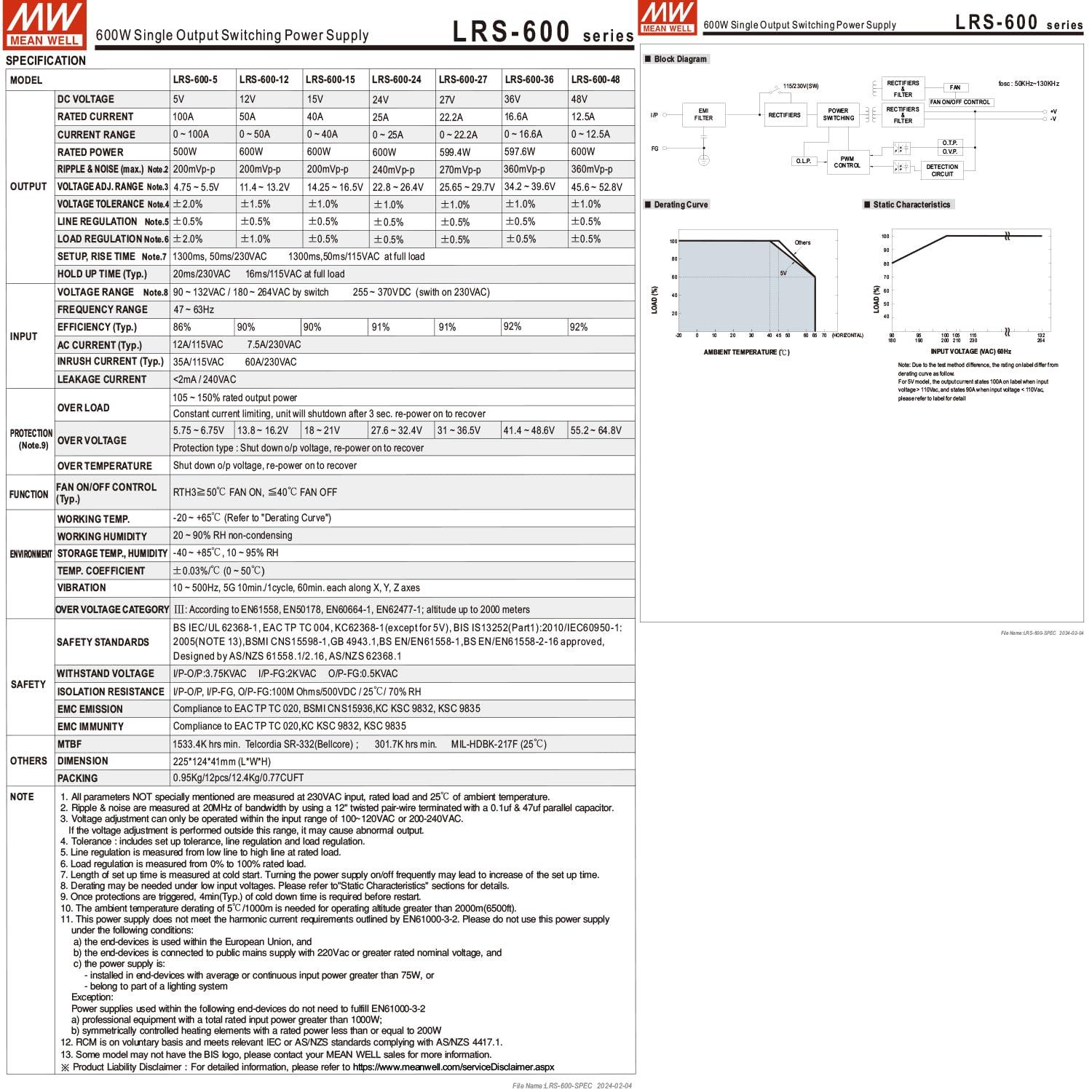

- Reliable Performance: 90-132VAC/180-264VAC (switch selectable) or 255-370VDC input, 48V single output, 12.5A rated current, 600W rated power. DC fan forced air cooling with on/off control ensures stable output and long lifespan (MTBF > 1KK hrs).
- Safety Certified: Comprehensive protection features including short circuit, overload, overvoltage, and over-temperature protection. Meets UL/BS/IEC 62368-1, BSMI CNS14336-1, EAC TP TC 004, BIS IS 13252(Part1):2010/IEC 60950-1:2005, AS/NZS62368.1 safety standards. Withstands 300VAC surge input for 5 seconds.
- High Efficiency & Eco-Friendly: Up to 92% efficiency minimizes energy waste and reduces operating costs. Compliant with various global environmental regulations.
- Easy Installation & Compact Design: 1U low profile (8.86" x 4.88" x 1.61") design for space-saving installation.
- Wide Application & Adaptability: Suitable for industrial automation machinery, industrial control systems, mechanical and electrical equipment, electronic instruments, devices, and apparatus. Operates at altitudes up to 16,404 ft (5000m) and withstands 5G vibration testing. Wide operating temperature range: -4~149 (-20~+65).
