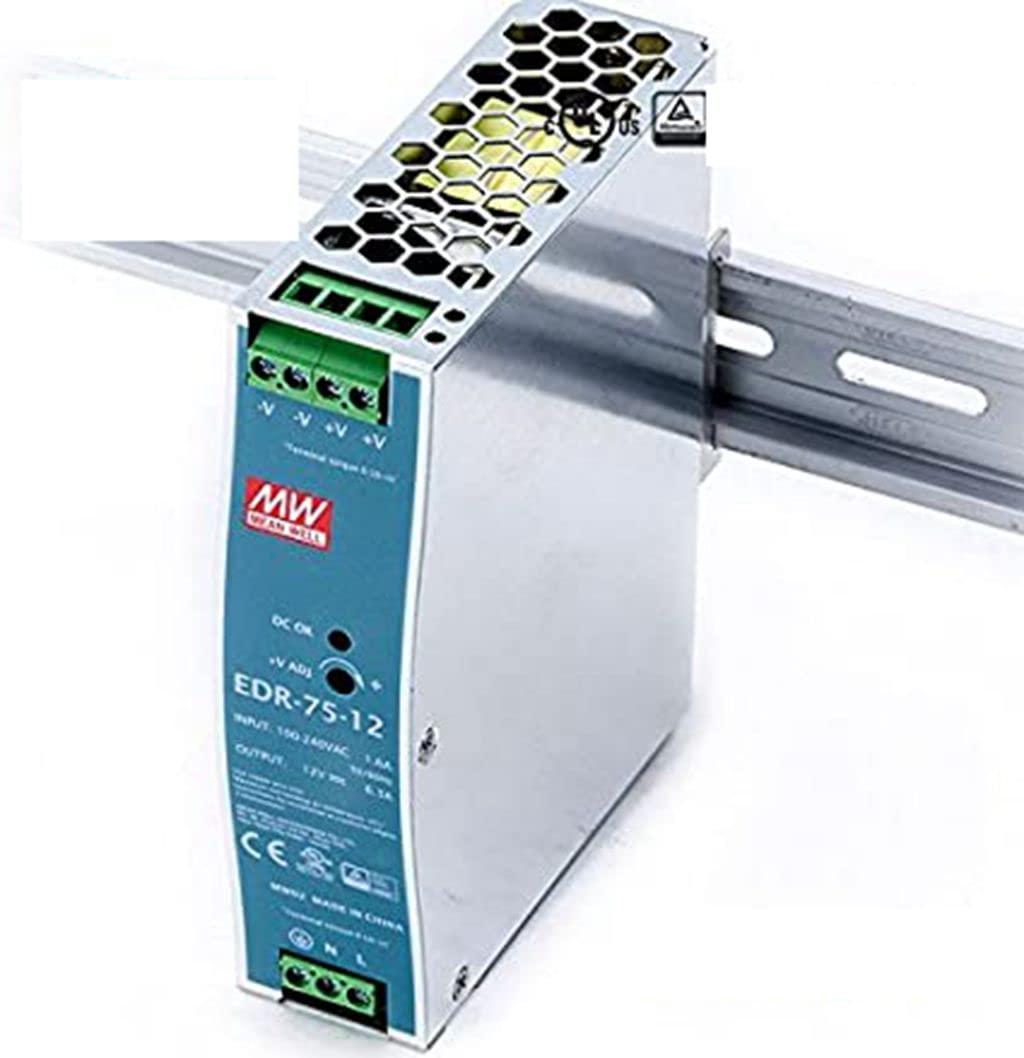

Description
- Output Voltage: 12V
- Approx. Wattage: 75W
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Can be installed on DIN rail TS35 / 7.5 or 15
- Warranty: 2 Years Warranty
Features:
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS35 / 7.5 or 15
UL508 (industrial control equipment) listed
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
Low cost
2 years warranty for EDR series
General Specification:
AC input voltage range: 90~264VAC; 127~370VDC
AC inrush current (max.): Cold start, 35A at 230VAC
DC adjustment range 12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Current adjustment range:10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
Overload protection:105%~130% Constant current limiting, auto-recovery
Over voltage protection:14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover
Over temperature protection:Shut down o/p voltage, re-power on to recover
Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature:-20~+60!aC (refer to output derating curve
Safety standards:UL60950-1, TUV EN60950-1 approved
EMC standards:EN55022 classA, EN61000-3-2(125W for EDR-150),3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)
Connection (screw DIN terminal):I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm):32x 125.2x 102
