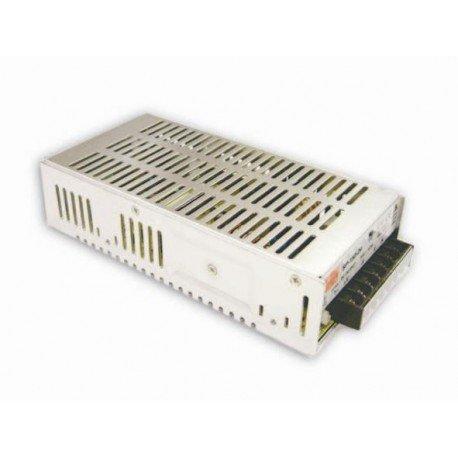

Description
- Output Voltage: 15V
- Approx. Wattage: 150W
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Warranty: 3 Years Warranty
Features:Universal AC input / Full rangeBuilt-in active PFC functionProtections: Short circuit / Overload / Over voltage / Over temperatureCooling by free air convectionOptional remote ON/OFF control100% full load burn-in test3 years warrantyGeneral Specification (Please refer to images below for detailed datasheet)AC input voltage range:85~264VAC; 120~370VDCAC inrush current (max.):Cold start, 45A at 230VACDC adjustment range:-5%~+10% rated output voltageOverload protection Range:105%~150%Overload protection Type:Constant current limiting, auto-recoveryOver voltage protection Range:110%~135%Over voltage protection Type:Shut off, AC recycle to re-startWithstand voltage:I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minuteWorking temperature:-10~+55CSafety standards:UL60950-1, TUV EN60950-1,EMC standards:EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3Connection:7P / 9.5mm pitch terminal block with coverDimension (LxWxH):199x 99x50Case No.:916APacking:20pcs/16.4kg
