Description
- Output Voltage: 15V
- Approx. Wattage: 750W
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Warranty: 3 Years Warranty
Features:
Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Optional remote ON/OFF control
100% full load burn-in test
With PG/PF signal output
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:90~264VAC
AC inrush current (max.):Cold start, 45A at 230VAC
DC adjustment range:10% rated output voltage
Overload protection Range:105%~125%
Overload protection Type:Constant current limiting, auto-recovery
Over voltage protection:115%~140%
Withstand voltage:I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC(short for SP-480), 1 minute
Working temperature:-20~+60C
Safety standards:UL60950-1, TUV EN60950-1 approved; GB4943 approved also for SP-320 (expect for 3.3V/ 5PNC/ 36V)
EMC standards:EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2

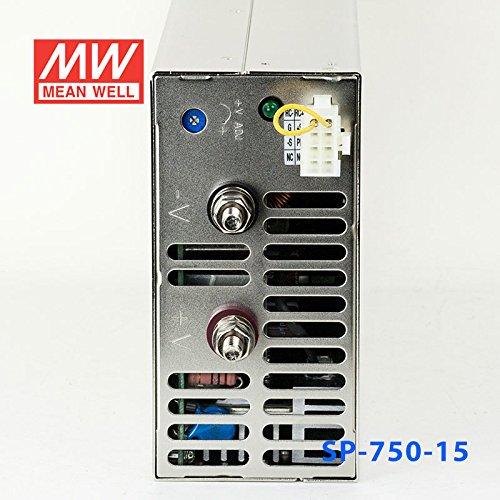

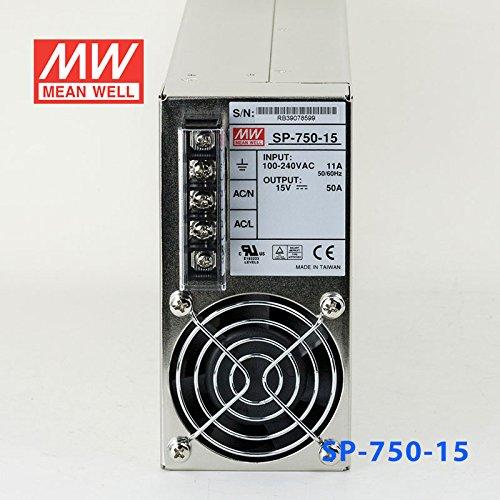

Connection:5P / 10mm pitch terminal block with cover for input; copper pillars for output
Dimension:(LxWxH):278x127x63.5
Case No.:919A
Packing:6pcs / 18.4kg
