Description

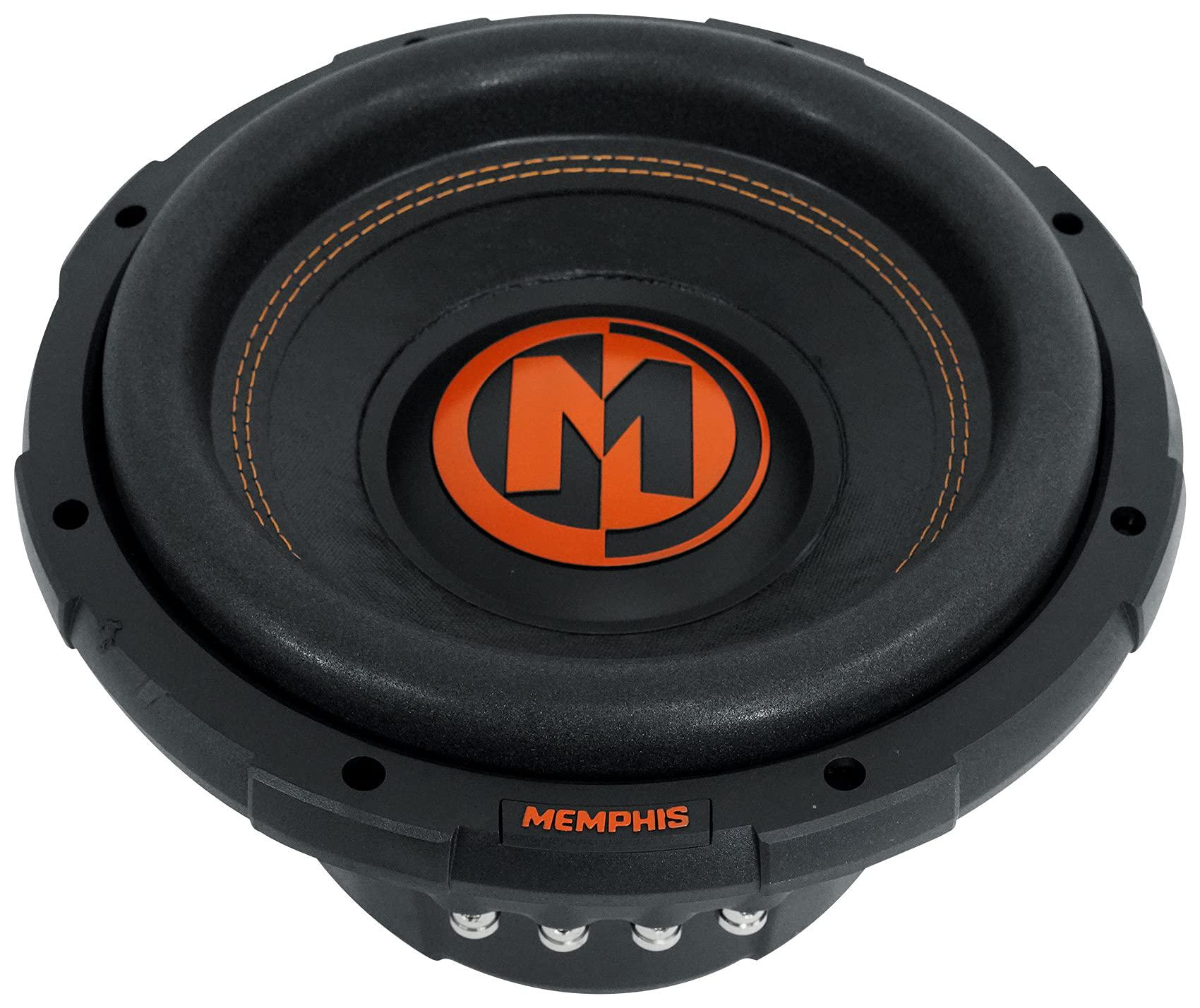

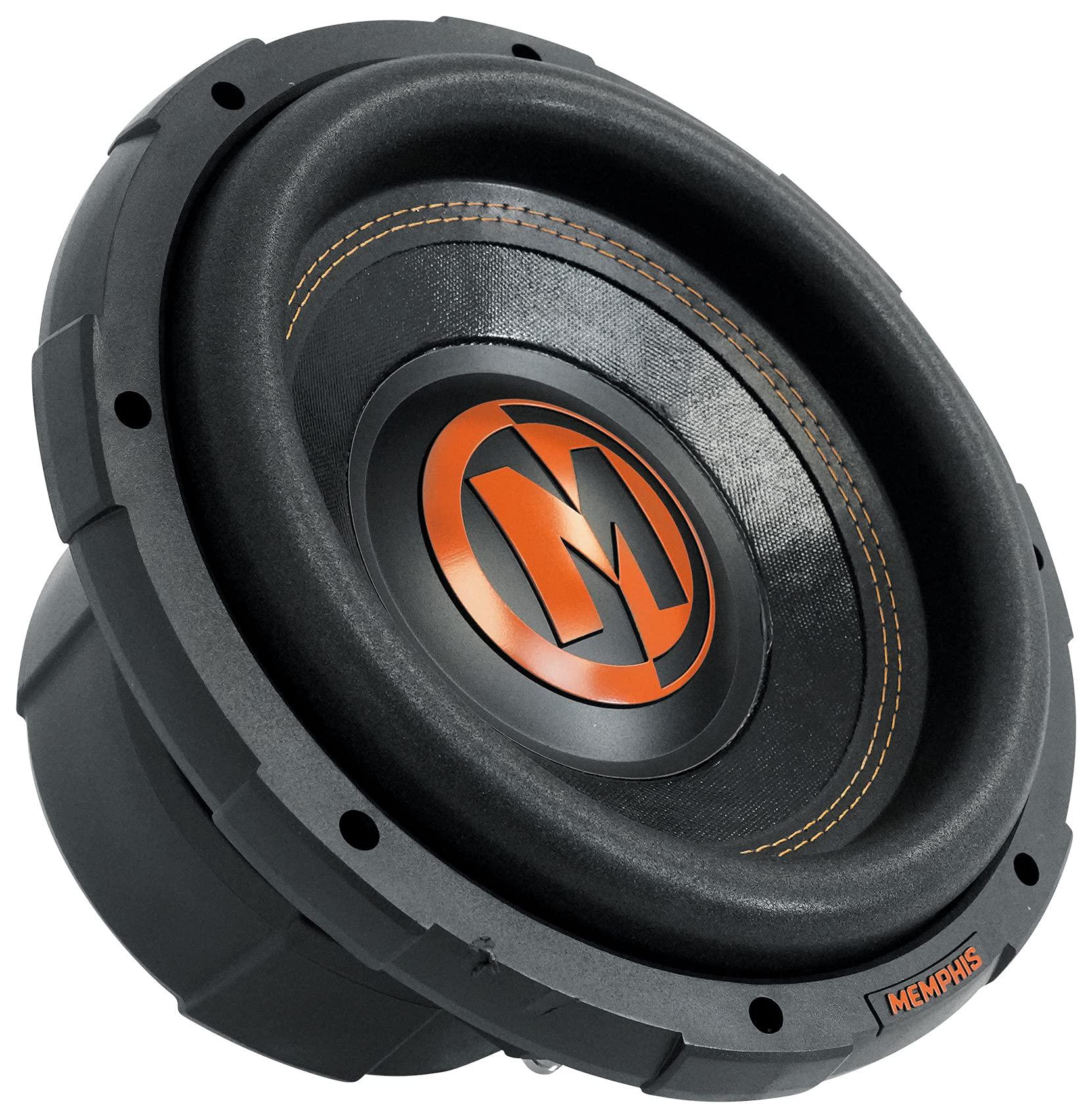

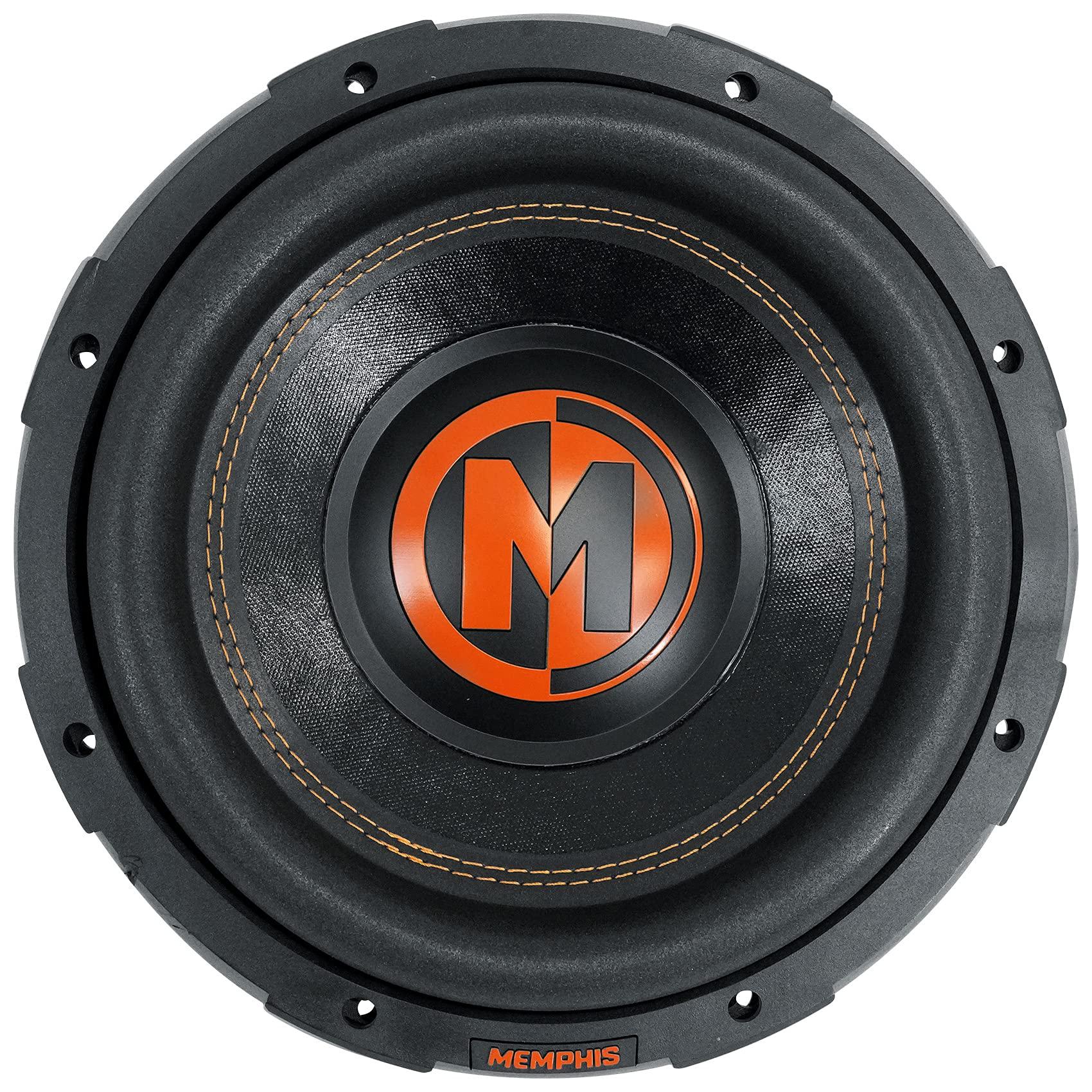

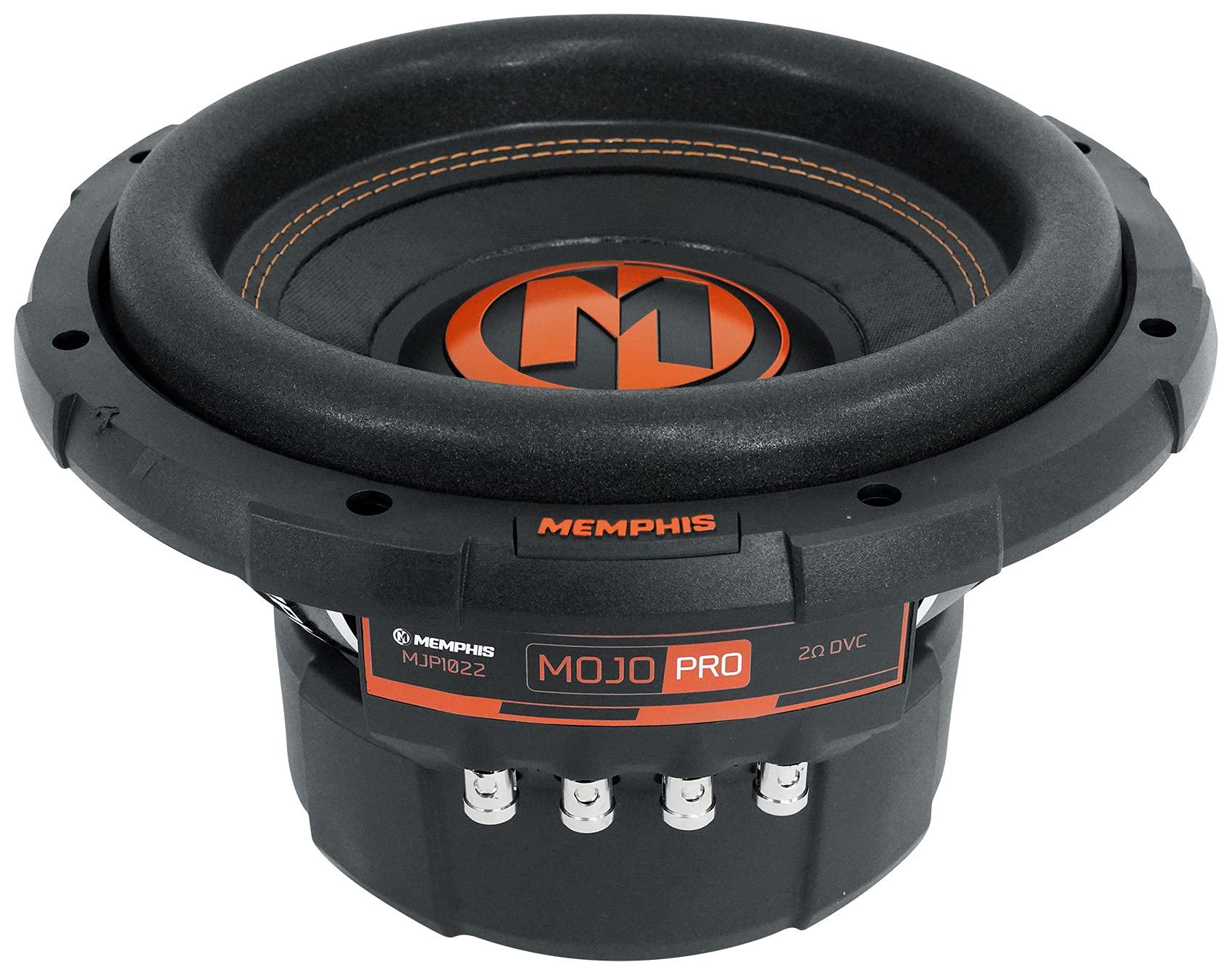

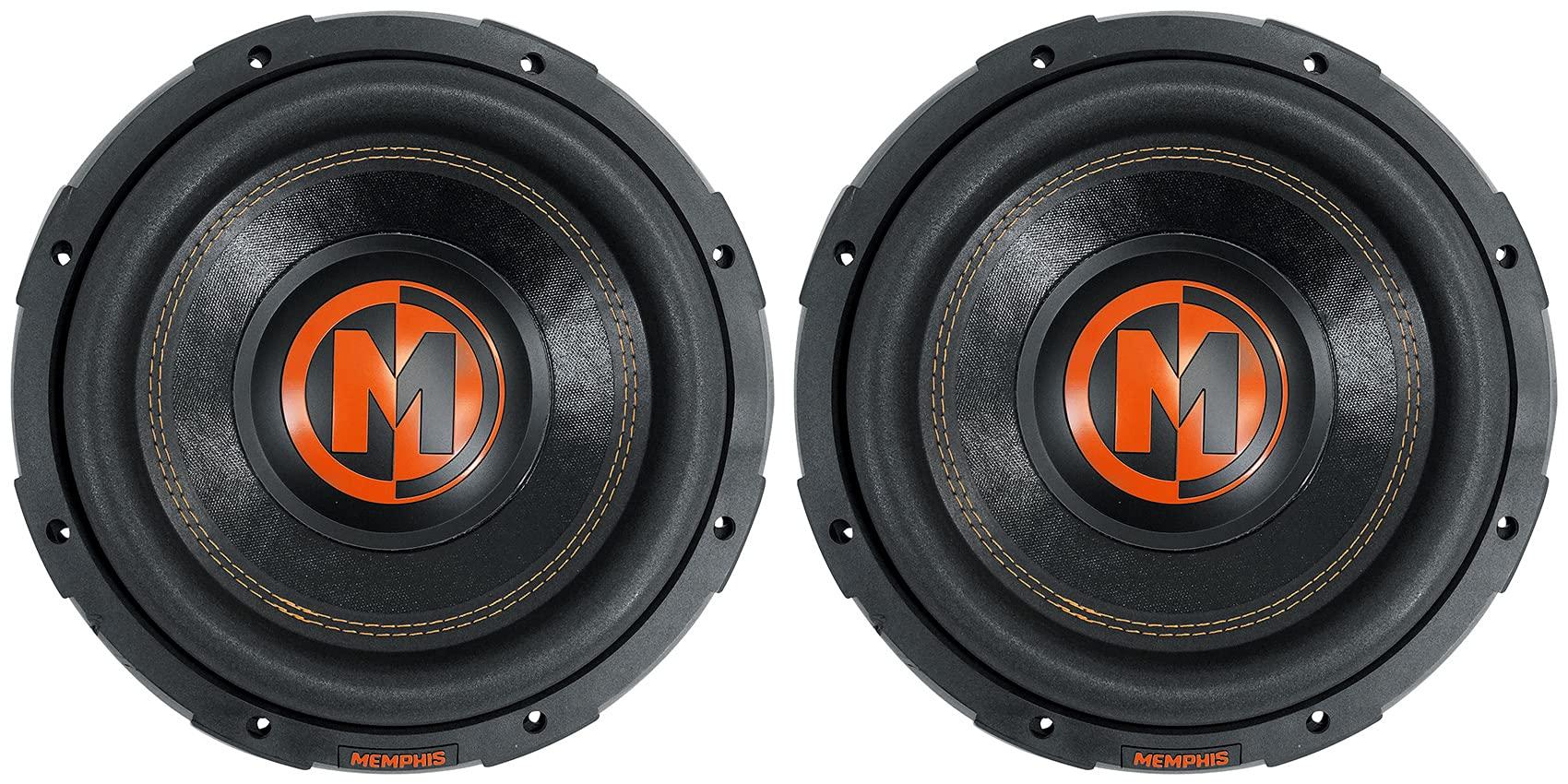

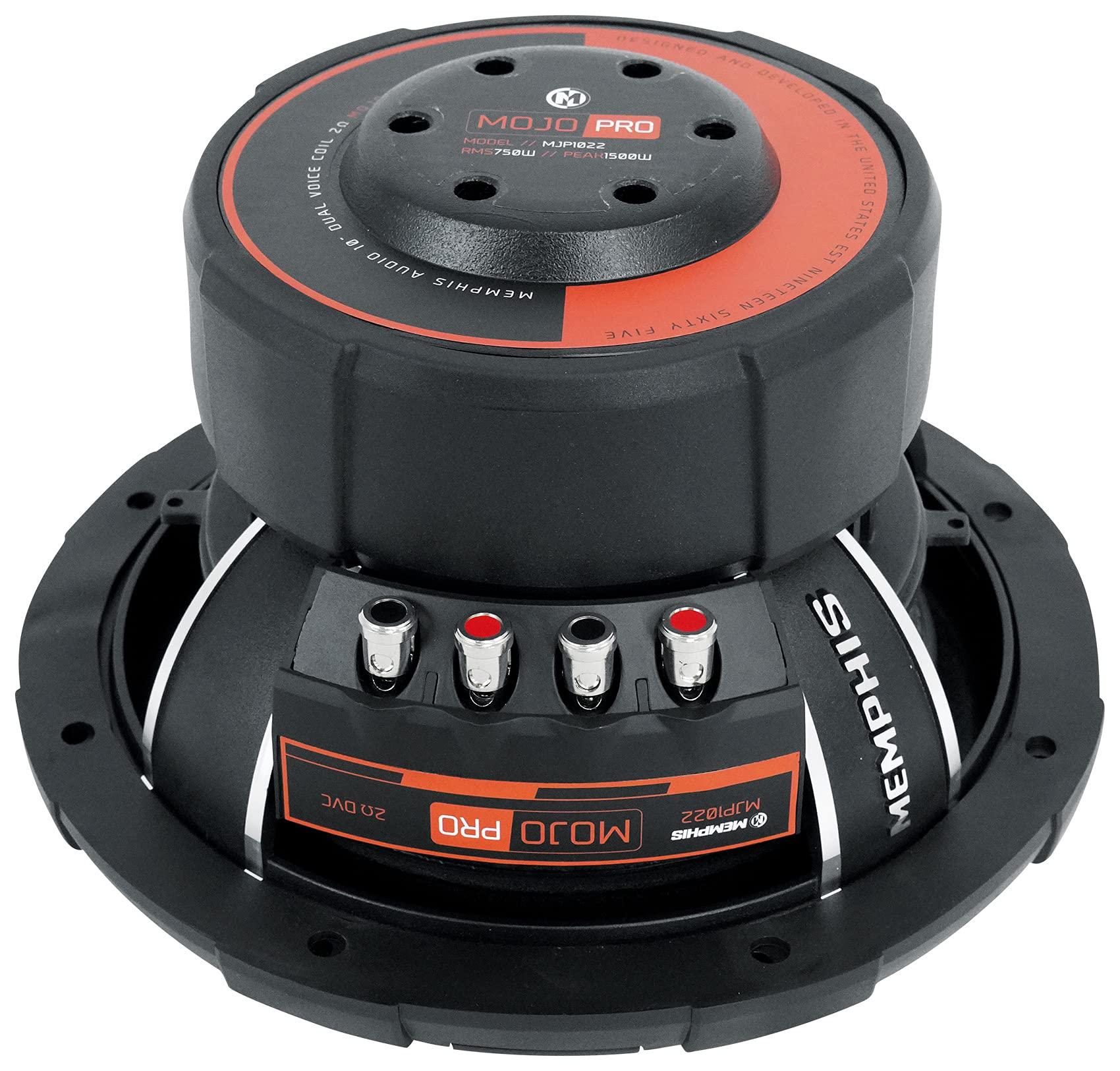

- Package Includes: (2) Memphis Audio MJP1022 10" 1500 Watt MOJO Pro Car Audio Subwoofer DVC 2 ohm

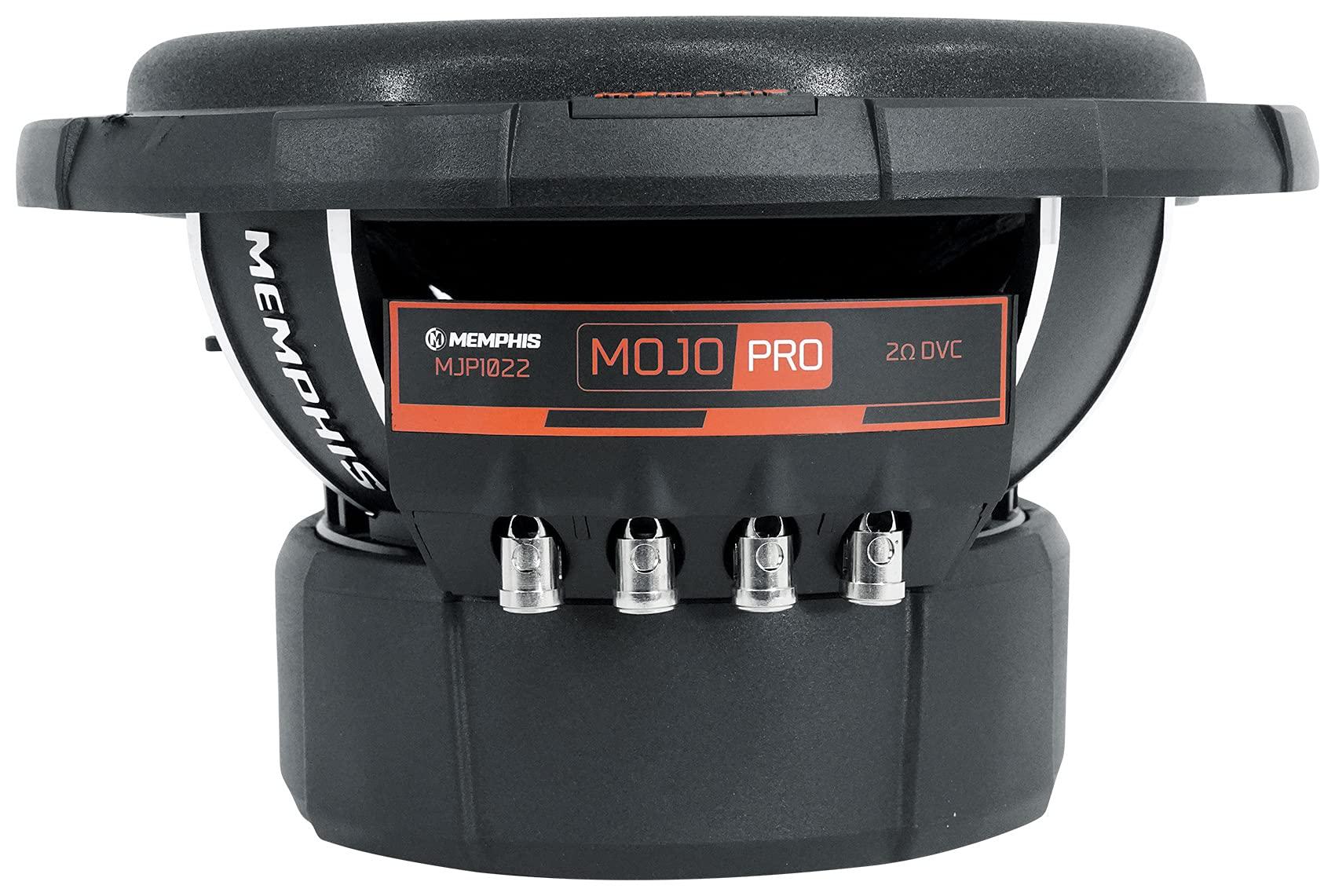

- Features: Specifically designed for high SPL performance DVVC Direct Vent Voice Coil Cooling Cross drilled front plate venting Aluminum shorting ring for reduced inductance Foam surround Rigid paper cone Progressive spider Diecast basket Single Sided compression terminals Size: 10 Inch Voice coil: DUAL 2 RMS/PEAK: 750/1500 Watts SENS: 82.66 dB DEPTH: 5.72 Inch CUT OUT: 9.45 Inch
- Thiele Small Parameters: Resonant Frequency (fs): 35.3 Hz Mechanical Q (Qms): 6.19 Electrical Q (Qes): 0.63 Total Q (Qts): 0.571 Sensitivity: 82.6 dB Xmax Linear: 0.51 in Displacement: 0.12 cf Air Volume of Suspension (Vas): 0.58 cf Moving Mass (Mms): 227.38 g Suspension Compliance (Cms): 0.09 mmN Effective Piston area (Sd): 359.68 SqCm Motor Strength (Bl): 8.96 TM DC Resistance: 1 Ohms

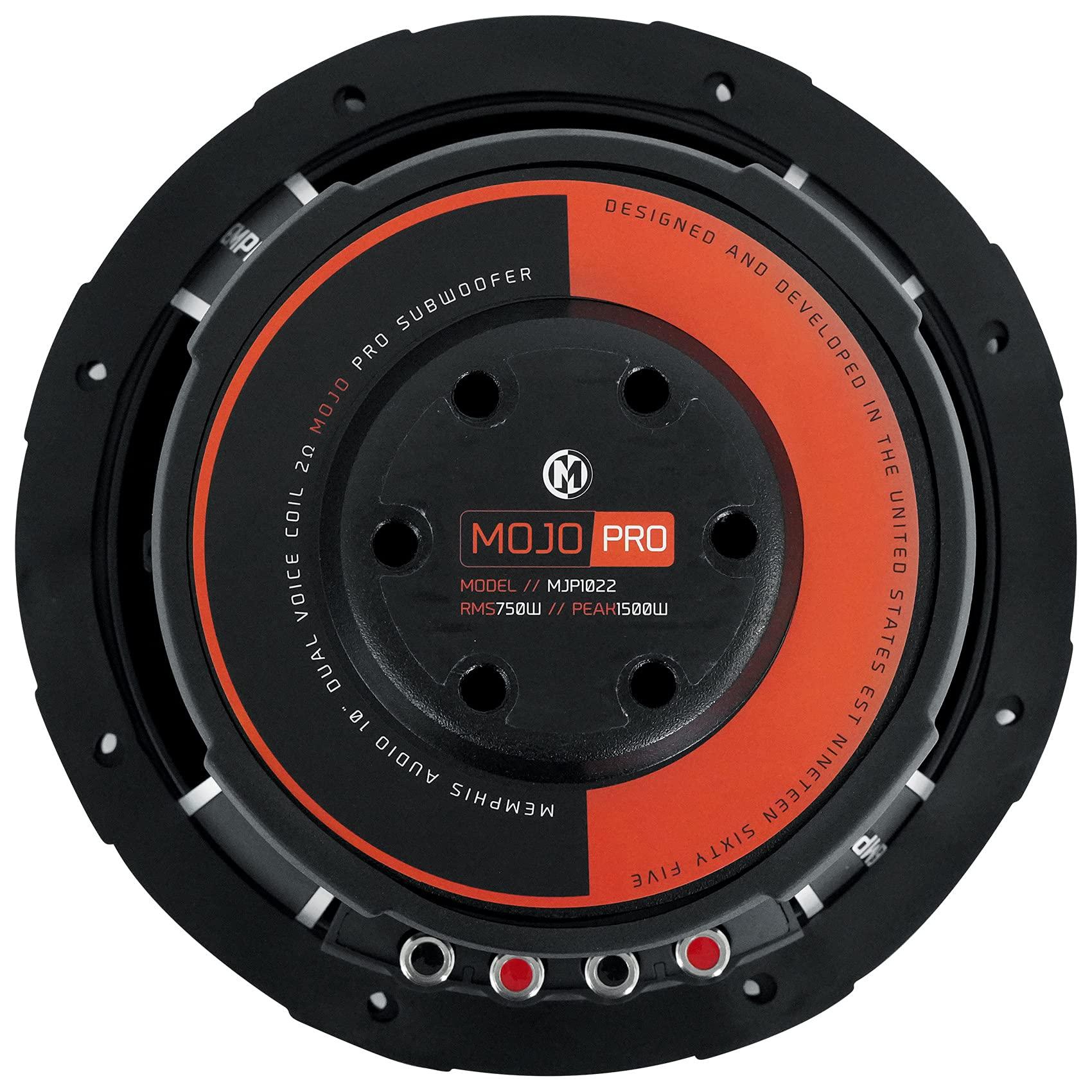

- Voice Coil & Magnet: Impedance Series: 4 ohms Impedance Parallel: 1 ohms Voice Coil Diameter: 2.5 in RMS Power: 750 watts Peak Power: 1500 watts Magnet Weight: 120 oz Magnet Diameter: 6.69 in
- Physical Dimensions: Mounting Depth: 5.72 in Cutout Diameter: 9.45 in Frame Outside Diameter: 11.23 in Enclosure Recommendations: Single Sub Sealed: 0.75 cf Dual Subs Sealed: 1.5 cf Single Sub Vented: 1.6 cf Port Dimensions: 4" x 3" x 20"L in Tuning Frequency: 37 Hz Dual Sub Vented: 2.8 cf Port Dimensions: 5" x 5" x 22"L Tuning Frequency: 37
Description: Memphis Audio MOJO Pro Series Component Subwoofers. Memphis Has Design These As a Perfect Complement To The Rest Of Their MOJO Pro Series Of Speakers. These Are Basically Old-School SPL Subwoofers, Designed To Play Loud And Move A Lot Of Air . As They Are Dual Voice Coils, Memphis Audio Has Designed A Nice Way To Keep Them Cool Using Direct-Vent Voice Coil Cooling Technology As Well As A Cross-Drilled Front Plate Which Allows Plenty Of Air To Move Freely Around Those Voice Coils.
