Description

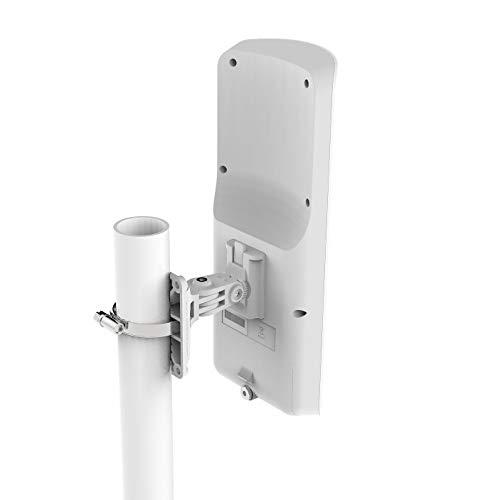

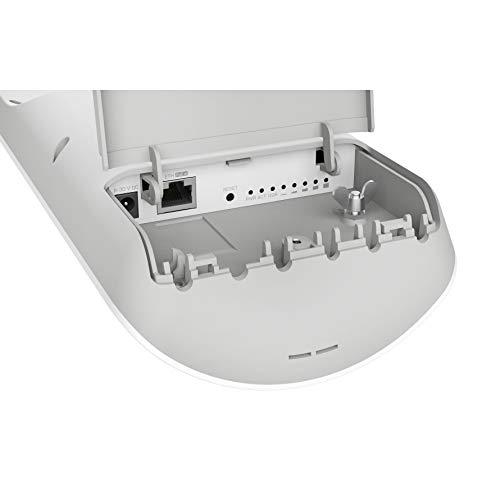

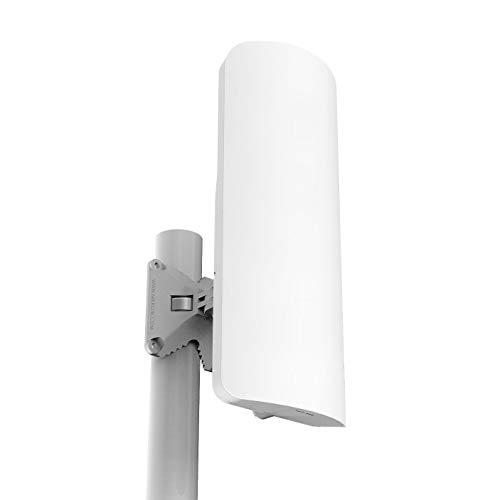

- Mikrotik mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz.
- The Mikrotik mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in.
- Mikrotik powered by the RB911 device, the mANTBox comes ready to use with everything included.
- The Mikrotik device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.
- Mikrotik mANTBox 2 12s: 2.4GHz 120 degree 12dBi dual polarization sector Integrated antenna with 600Mhz CPU, 64MB RAM, Gigabit Ethernet, PSU and PoE.
SKU: RB911G-2HPnD-12S
mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz.
The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.
Technical Description
Product code RB911G-2HPnD-12S
CPU AR9342
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 140 x 348 x 82 mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40C to 70C
Powering
PoE in Passive PoE
PoE in input Voltage 10-28 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 11 W
Wireless
Wireless 2.4 GHz number of chains 2
Antenna gain dBi for 2.4 GHz 12
Ethernet
10/100/1000 Ethernet ports 1
Other
PCB temperature monitor Yes
Voltage Monitor Yes
