Description
Specification:

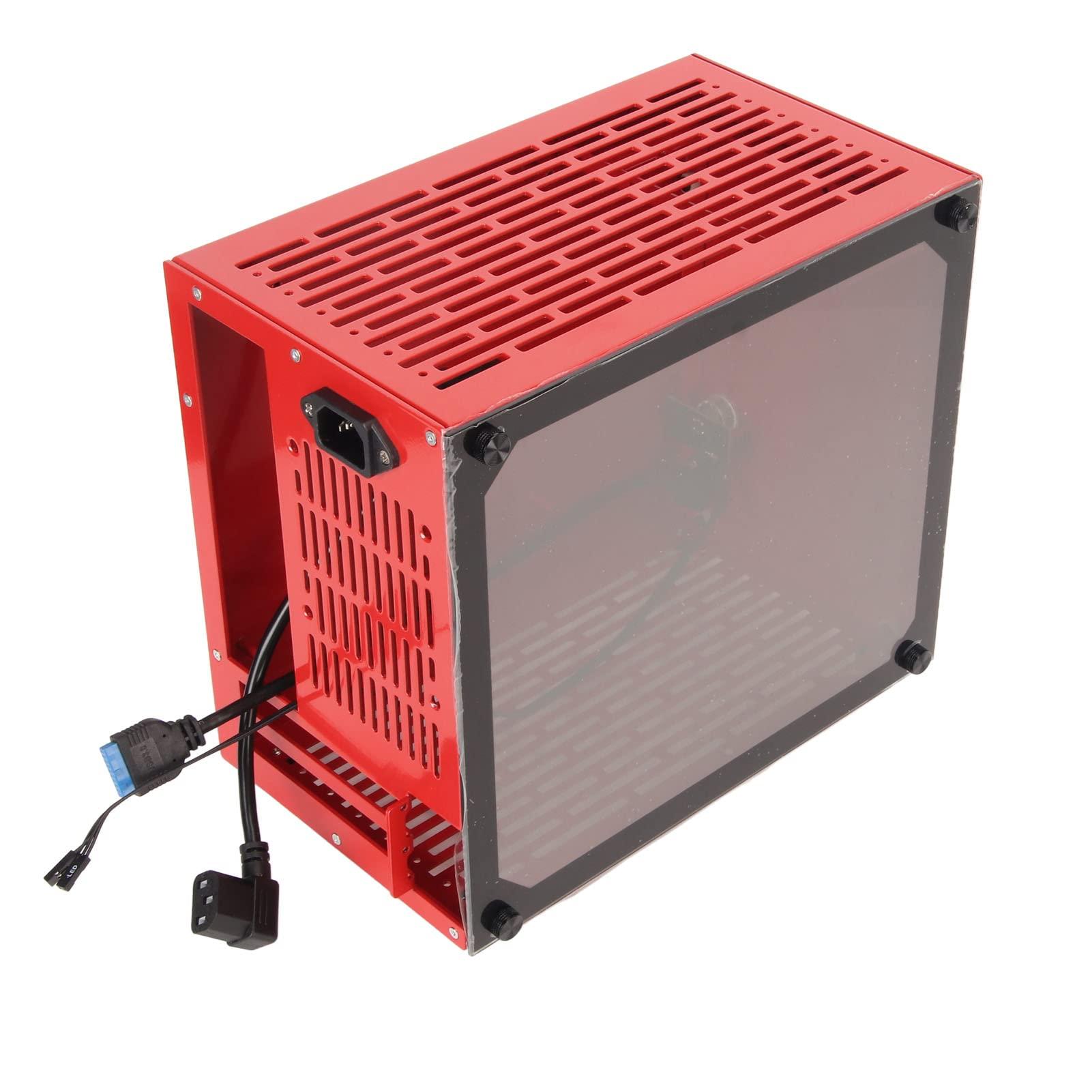

Item Type: Mini ITX Case
Material: Aluminium Alloy
Chassis Type: HTPC Chassis
Supported Motherboard: Standard ITX Motherboard 17 x 17cm / 6.7 x 6.7in
CPU Cooler: Support CPU Cooler (Not Higher Than 42.5mm / 1.67in)
Memory Height Limit: <42.5mm / 1.67in
Hard Disk: Supports 2 SSD Installation

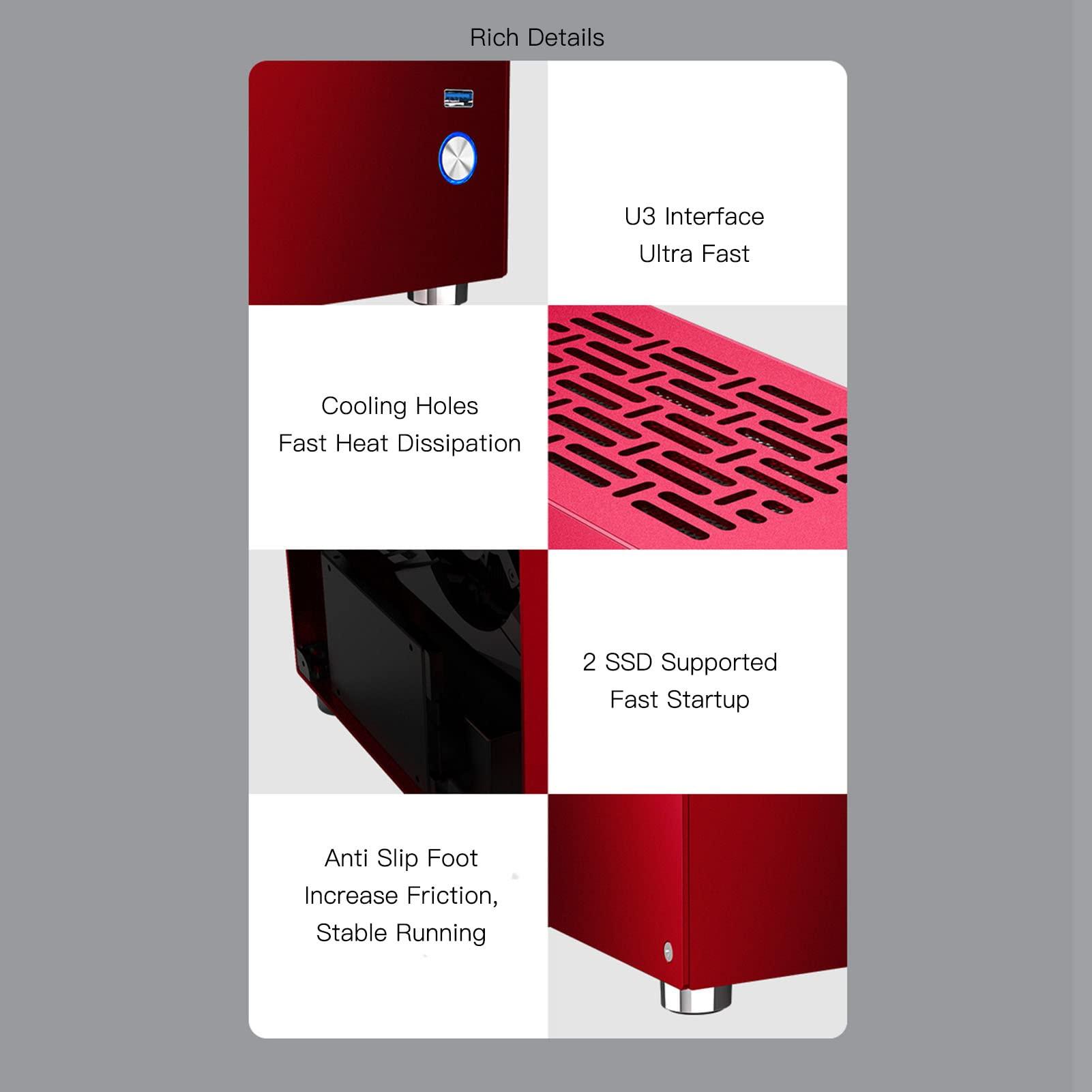

Interface: 1 x USB3.0
Power Supply: Support FLEX (Small 1U Power Supply)
Supported Graphics Card Size: Approx. 204 x 142 x 48mm / 8.0 x 5.6 x 1.9in
Case Size: Approx. 26 x 23 x 15.5cm / 10.2 x 9.1 x 6.1in (Manual Measurement, Slight Error May Exist)

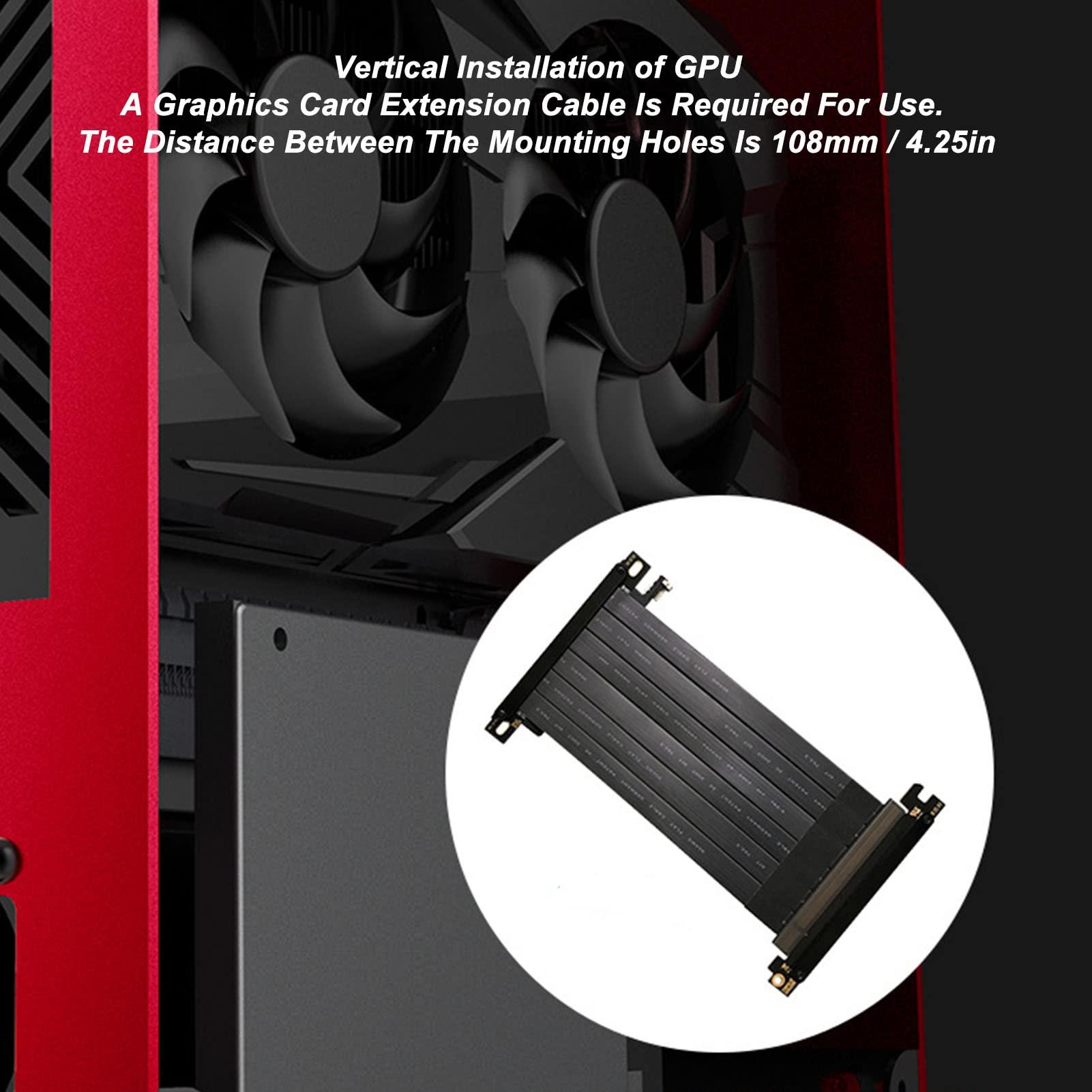

Graphics Card Cable Length Limit(Not Included) : A Graphics Card Extension Cable Is Required For Use. The Distance Between The Mounting Holes Is 108mm / 4.25in
Support: ADT Graphics Card Extension Cable Dual Reverse PCIe X16 3.0 185mm / 7.3in. Support ITX Double Reverse 185mm / 7.3in
Voltage: AC 100-240V
How to Use:

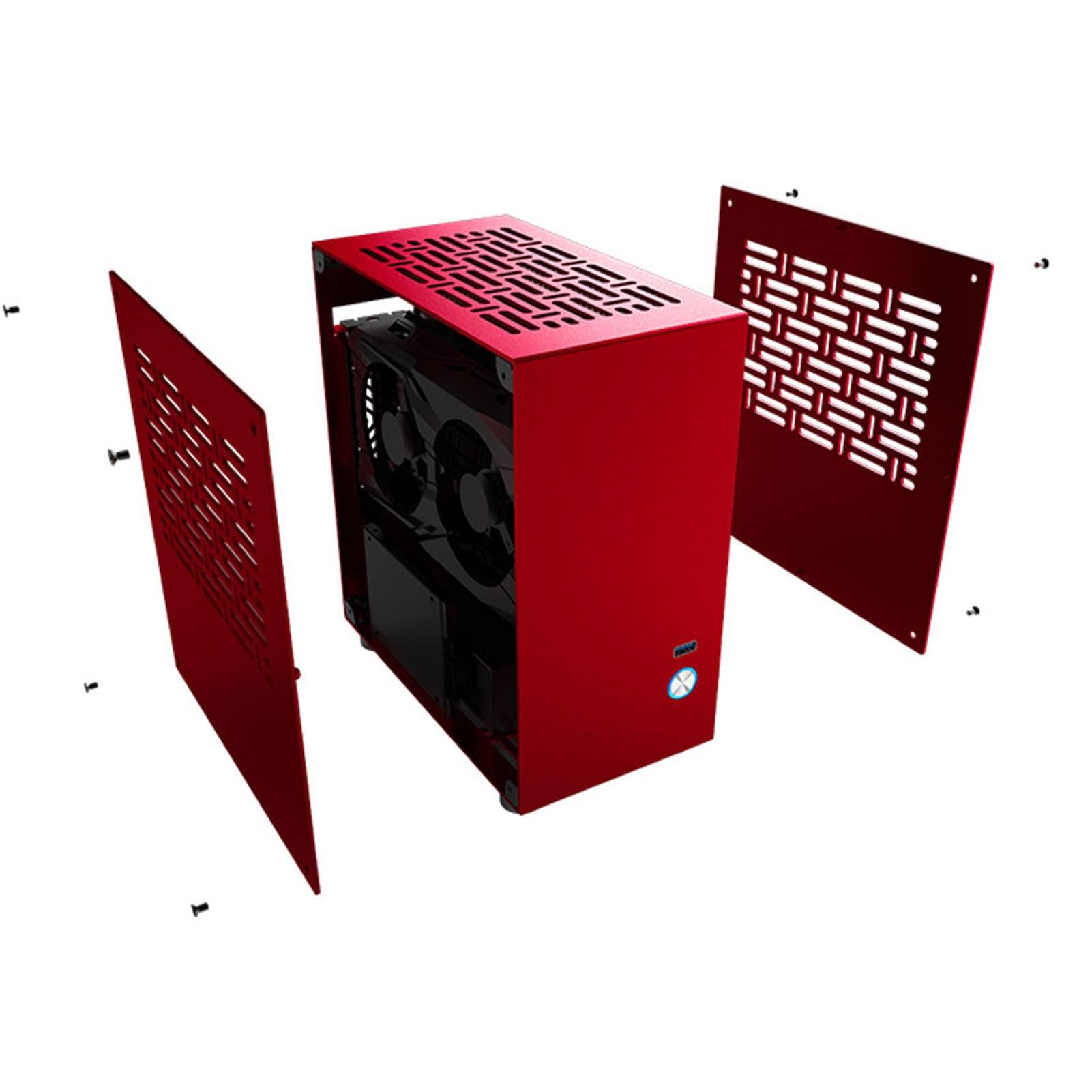

1. Using screwdriver to loosen the screws on both sides of the chassis and remove the side panels.2. Install the sealing plate on the motherboard.3. Install FLEX power supply (small 1U).4. Install a graphics card extension cable.5. Install the motherboard, lock the screws, and insert the extension cable.6. Install the graphics card, adjust the graphics card support, and lock the corresponding screws.7. After connecting cables, lock the side panel.

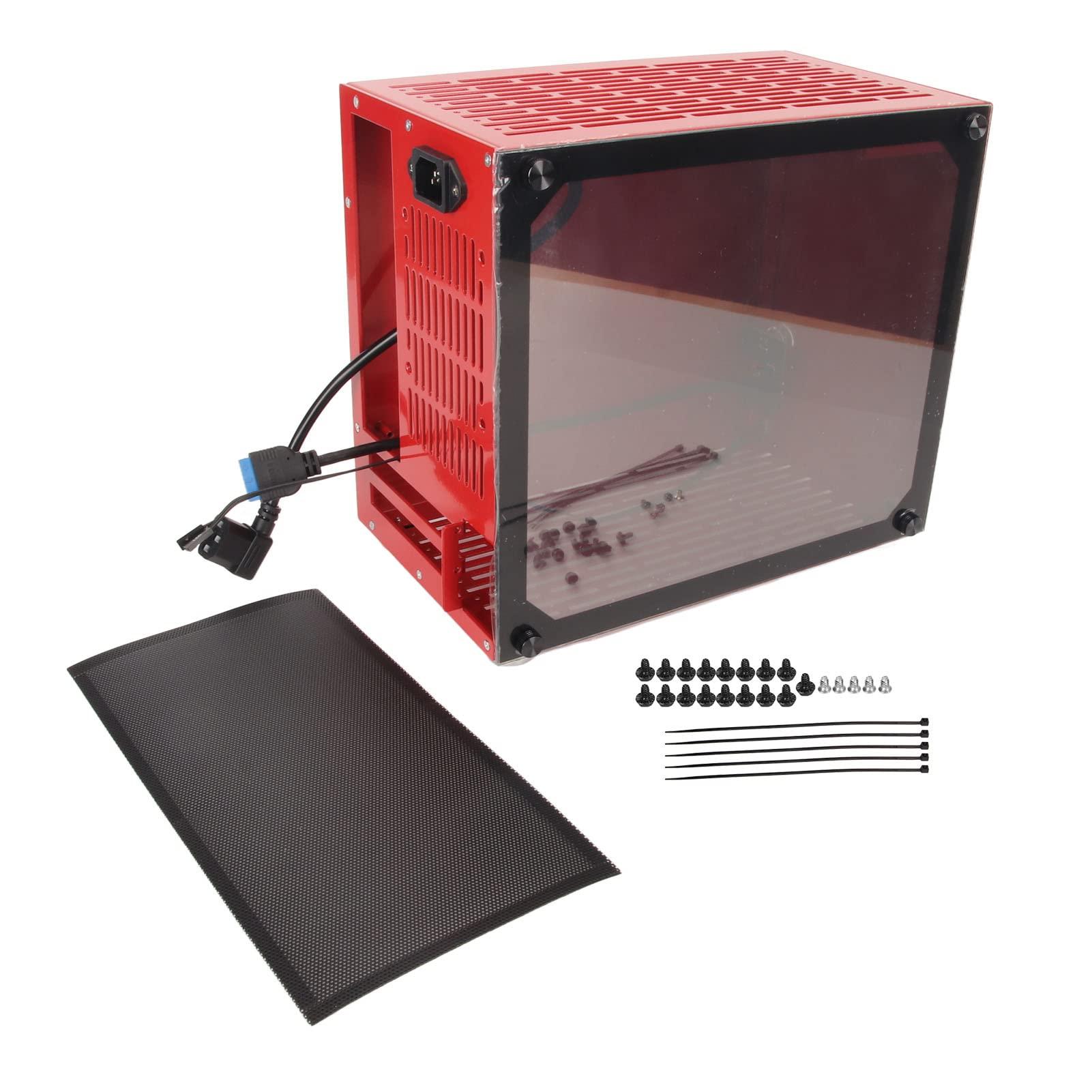

Package List:
1 xMini ITX Case
1 x Dust Filter
1 x Accessory Kit
