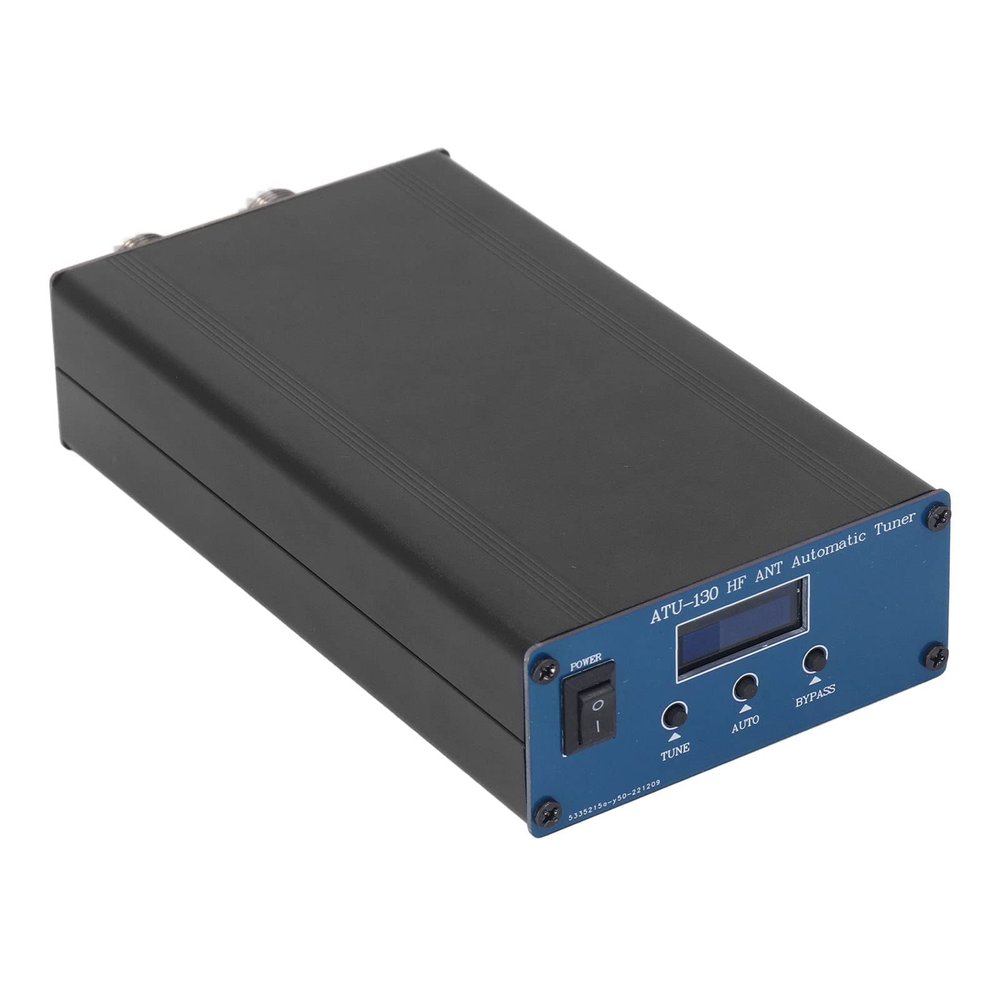

Miniature shortwave Automatic Tuner, 200W, OLED Display, for Home, Vehicle use

Description

• TUNER: Miniature shortwave automatic tuner, without any control line operating, suitable for most radio stations.
• EXCELLENT PARTS: Adopts C channel 1000V high voltage SMD capacitor, advanced PIC chip and UHF connector to ensure
• GOOD PERFORMANCE: Higher level capacitance, larger magnetic ring, thicker wire diameter, greater power bearing capacity, total inductance 12.4uh.
• ALUMINUM ALLOY: The shell of the tuner is made of aluminum alloy, with light weight, fast heat dissipation and erosion proof.
• COMPACT SIZE: The automatic tuner has compact structure, convenient connection, portable design is suitable for home or vehicle use.

Specification:
Item Type: Automatic Tuner
Model: ATU-130
Material: Aluminum Alloy
Power Supply Voltage Range: 10-15VDC (+in the center)
Maximum Current Consumption: 500mA
Maximum Working Power: 150W
Starting Tuning Minimum Power: 5W
Minimum Measurable Power: 0.1W
Measurement Accuracy Up to 10W Power: 0.1W
Measurement Accuracy Greater Than 10W Power: 1W
Maximum Installed Inductance: 8.53H
Minimum Installation Inductancee: 0.05H
Micro Automatic Tuner Features:
Has the function of power meter standing meter (according to BYPASS, straight through mode, one horizontal line in the middle of the screen, the test value is approximate, and the accuracy is lower than that of professional meter, for reference).
PIC18F2520, MCU (faster).
Short machine automatic tuner
The third edition adopts the design of 4 large magnetic ring inductors, which generates less heat than the original edition.
HF32, 10A, HF33, 5A relays are used.
High voltage porcelain chip capacitor is adopted.
The maximum measurable value is SSB 275w. It is recommended that the SSB
