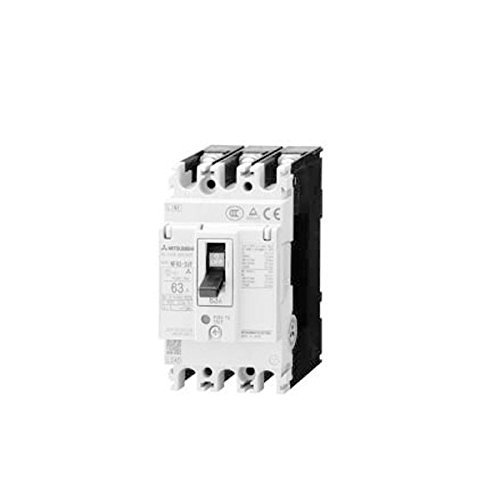

MITSUBISHI ELECTRIC NF63-CVF 3P 50A Circuit Breakers(3 Pole)(Rated Current 50A) NN

Description

Specifications
[Model] NF63-CVF 3P 50A
[Frame (A)] 50
[Rated current In(A) Rated ambient temperature 40 deg. CEL(45 deg. CEL for marine use)] 50A
[Number of poles] 3
[Rated insulation voltage Ui (V)] 440
[Rated short-circuit breaking capacities (kA)]
JIS C 8201-2-1 Ann.1
JIS C 8201-2-1 Ann.2
IEC 60947-2
EN 60947-2(Icu/Ics)
440VAC:2.5/2.5
415VAC:5/5
400VAC:5/5
380VAC:5/5
230VAC:7.5/7.5
200VAC:7.5/7.5
[Rated impulse withstand voltage Uimp(kV)] 6
[Current] AC
[Suitabillity for isolation] Compatible
[Number of operating cycles]
Without current:10,000
With current(440VAC):6,000
[Utilization category] A
[Pollution category] 3
[EMC environment condition (environmet A or B)] N/A
[Mass of front-face type(kg)] 0.4
[CE marking] TUV approval
[CCC recognition] Recognition in process
[Automatic tripping device] Thermal-magnetic
[Trip button] Equipped
