Description
- Using 1/2.8 CMOS image sensor, 3G / HD SDI digital signal and CVBS analog signal output With 3.2mm No Distortion Manual HD Lens
- Multiple resolutions outputSupport 1080@60/50/30/25P, 1080@60/50i, 720@60/50/30/25PIt can better compatibility with switcher or other device
- 1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission
- Ultra-wide dynamic capabilities in a very strong light, can see the features of the image contrast light in a small range, and super wide dynamic , and the highest can reach 60fps.
- The noise reduction is a technologies of between frames, realizing the 3 D image denoising. Make the images more pure and fine details! And closer to the actual effect of the human eye can see.
Camera Specification
*MODEL: SHD60-3.2MM

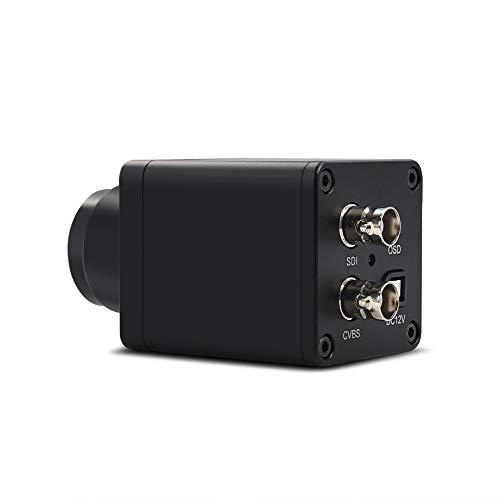

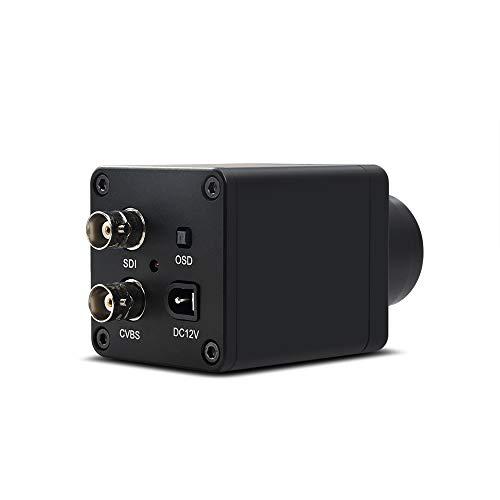

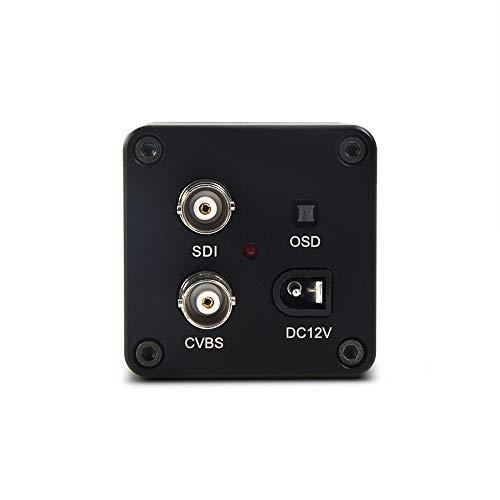

*OutputSDI and CVBS can output same time
*Solution: 1/2.8'' CMOS Sensor
* Effective Pixels: 1920(H)*1080(V)
* Resolution : 1080@60/50/30/25P, 1080@60/50i, 720@60/50/30/25P
* Lens: 3.2MM No distortion manual Lens
* Field of View: 77
* Backlight Compensation: Auto
* White Balance: Auto Tracking White Balance
*DAY/NIGHT function: Without
* Working Temperature: -10C~50C
* Weight: About 175g

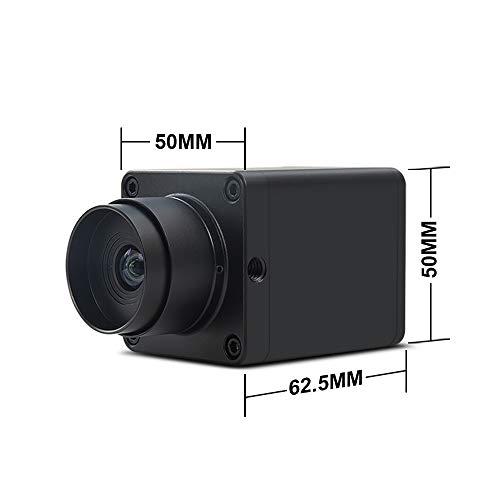

* Size82*50*50MM
