Description
- Cable Conductors Gauge: 28AWG (1P) + 24AWG*2C
- Connector 1: Micro-B 5 pin MALE
- Connector 2: Micro-B 5 pin FEMALE
- Wiring Diagram: 1-1, 2-2, 3-3, 5-5, Ground-Ground (Pin 4 NOT connected)

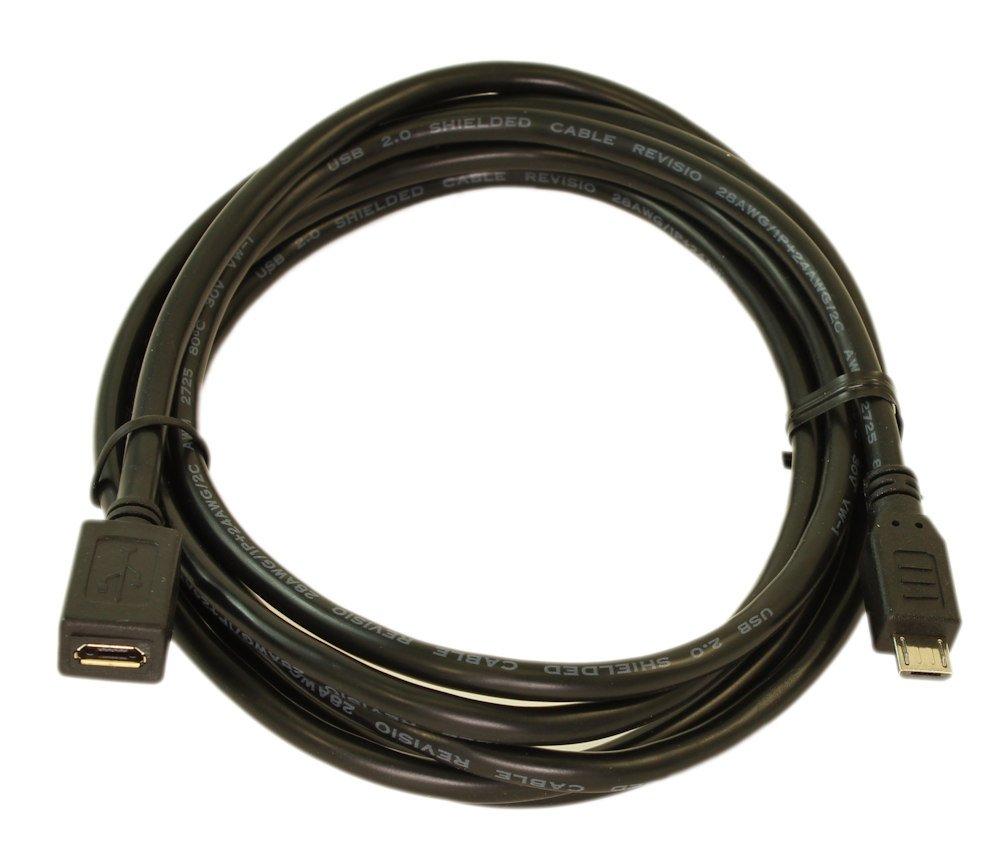

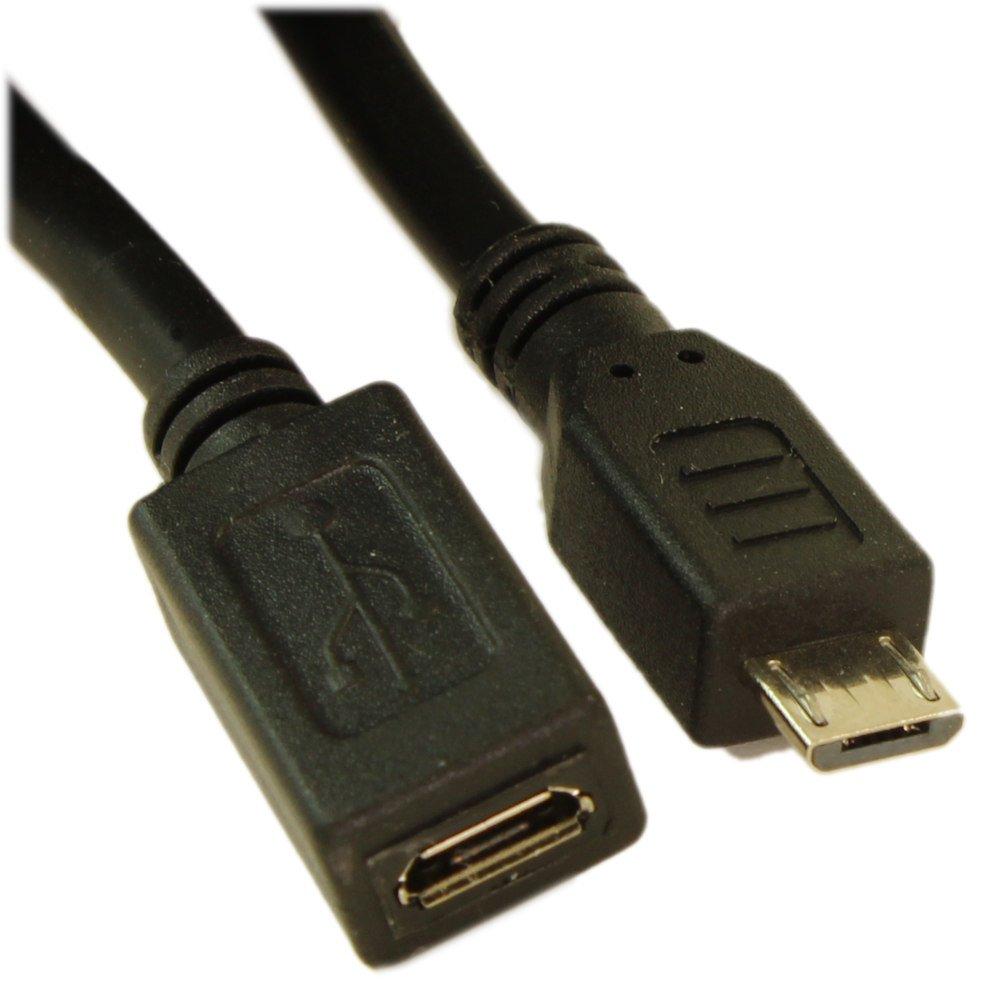

USB 2.0 Micro USB 5 pin Male to Female EXTENSION Cable Black. This Micro USB B 5pin extension Cable provides one Micro USB B MALE connector and one Micro B FEMALE to extend the length of an existing Micro-B 5 pin cable. This cable uses a much thicker 24AWG (for charge) for is conductor cables to ensure proper data transfer and optimal charging.
Cable Specifications:
Cable Conductors Gauge: 28AWG (1P) + 24AWG*2C
Wiring Diagram: 1-1 2-2. 3-3 5-5 Ground-Ground (Pin 4 NOT connected)
Connector 1: Micro-B 5 pin MALE
Connector 2: Micro-B 5 pin FEMALE
Meets the USB 2.0 data specifications
Shielding and Jacket Type: TC / braid 32*0.1mm
Wire: CU (Pure Copper)
Outer Cable Diameter: 3.5mm.
TECH NOTE:Cable compatible with most smart-phones and Blackberry phones (except Apple) manufactured since 2010 using the MICRO-B USB Connector. However extending devices that are using the OTG (On The Go wiring standards are NOT supported - such as many USB Thumb Drives
