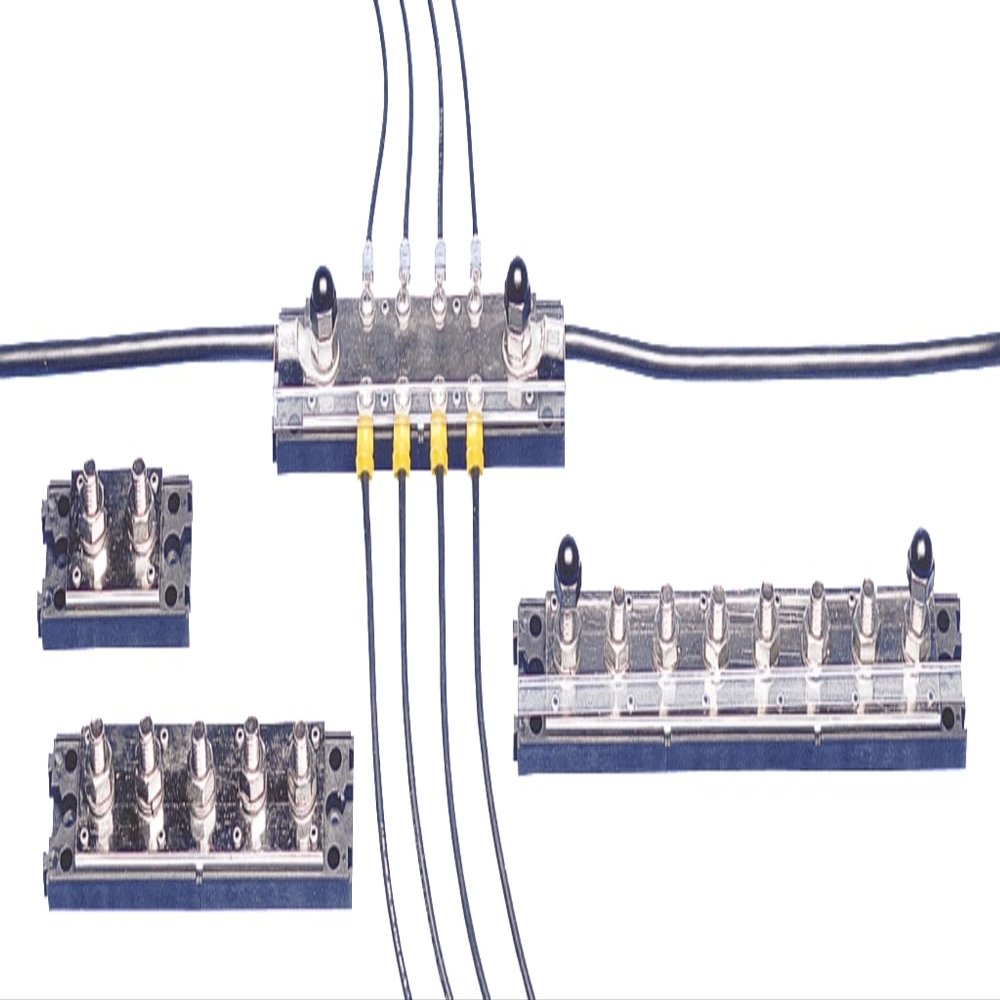

Newmar Bb-5 Buss Bar

Description

• Bus Bars Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16 studs on 1 centers in 1/4 thick copper bar for common
• Insulated base (reinforced nylon resin with clear protective cover) BBA-800 Rackmount Model Qty
• of 5/16 Studs Size BB-2 3 2 1/16 x 1 1/2 BB-2/8 2 plus 8 #8 screws 6-1/16 x 1-1/2 BB-5 5 6-1/16 x 1-1/2 BB-8 8 9-1/16 x 1-1/2 Terminal Strips Use as a common negative/neutral bus for AC or
• Dual terminal strips in 4 or 8 screw positions on 3/4 centers are secured to a high density insulated base
• All hardware, bus material and fasteners are nickel-plated brass

Bus Bars Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16 studs on 1 centers in 1/4 thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16 ring terminals. Insulated base (reinforced nylon resin with clear protective cover) BBA-800 Rackmount Model Qty. of 5/16 Studs Size BB-2 3 2 1/16 x 1 1/2 BB-2/8 2 plus 8 #8 screws 6-1/16 x 1-1/2 BB-5 5 6-1/16 x 1-1/2 BB-8 8 9-1/16 x 1-1/2 Terminal Strips Use as a common negative/neutral bus for AC or DC systems. Dual terminal strips in 4 or 8 screw positions on 3/4 centers are secured to a high density insulated base. All hardware, bus material and fasteners are nickel-plated brass. Interlocking bases allow use of multiple terminal strips and bus bars (described below) to produce secure and neat wiring assemblies. The terminal strip bases have provisions for either #8 or #10 mounting screws, and no conductive parts in the base are exposed to the mounting surface. # 8 screw terminals Bus bars rated to 100 amps
