Description
- Frame Buffer Memory 1 GB DDR3
- Memory Interface 128-bit
- Memory Bandwidth 25.6 GB/s
- CUDA Parallel Processing Cores 96
- Display Connectors DVI-DL + DP
From the Manufacturer

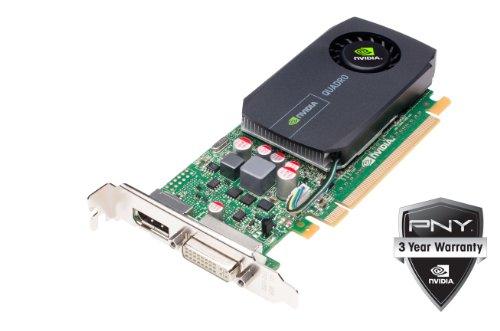

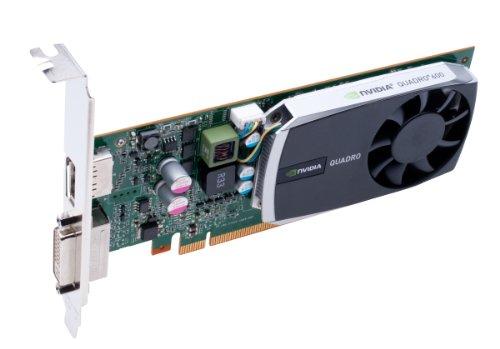

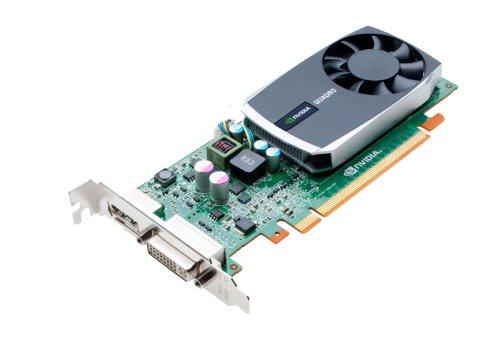

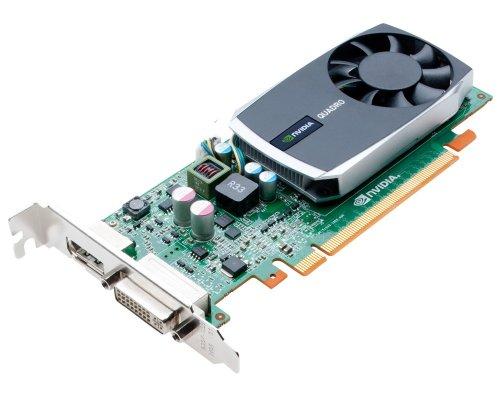

Overview NVIDIA Quadro 600 by PNY Low profile, power efficient, professional graphics solution
Built for Professionals, and certified on leading CAD and DCC applications, NVIDIA Quadro 600 by PNY delivers the best performance per watt in its class, maximizing productivity while conserving energy. Designed for both small form factor and full height workstations, the NVIDIA Quadro 600 by PNY delivers advanced capabilities, allowing you to design, iterate and deliver higher quality results in less time.
The NVIDIA Quadro 600 supports Microsoft DirectX 11.0, OpenGL 4.1 and Shader Model 5.0 hardware acceleration, and drives a variety of displays including: CRTs, Digital Flat Panels, Projectors, and HDTVs.
PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3 year warranty, pre and post-sales support, dedicated Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, driver CD and documentation to ensure a quick and successful install.
Product Details Frame Buffer Memory 1 GB DDR3 Memory Interface 128-bit Memory Bandwidth 25.6 GB/s CUDA parallel processing cores 96 Max Power Consumption 40 W Energy Star Compliant Yes Physical Dimensions 2.713" H x 6.60" L Single Slot Low Profile Form Factor Yes Display Connectors DVI-I (1), DP (1) Number of Displays Supported 2 DisplayPort Yes DVI Yes VGA Yes Graphics Bus PCI Express 2.0 x16 Thermal Solution Active 3D Vision Pro Support Via USB Warranty 3 Year Warranty PNY Part # VCQ600-PB
Features and Benefits
Next-Generation NVIDIA CUDA Architecture
Breakthrough NVIDIA Fermi architecture incorporates CUDA parallel computing capabilities and advanced visualization to deliver performance that greatly accelerates professional workflows.
NVIDIA Scalable Geometry Engine
Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.
NVIDIA GigaThread Engine
Provides up to 10x faster context switching compared to previous generation architectures, concurrent kernel execution, and improved thread block scheduling.
Fast 3D Texture Transfer
Fast transfer and manipulation of 3D textures resulting in more interactive visualization of large volumetric datasets.
Full-Scene Antialiasing (FSAA)
Up to 64X FSAA dramatically reduces visual aliasing artifacts or jaggies, resulting in unparalleled image quality and highly realistic scenes.
GPU Tessellation with Shader Model 5.0
Quadro Tessellation Engines automatically generate finely detailed geometry, for cinematic quality environments and scenes, without sacrificing performance.
16K Texture and Render Processing
The ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing.
NVIDIA High Precision High Dynamic Range (HDR) Technology
Sets new standards for image clarity and quality through floating point capabilities in shading, filtering, texturing, and blending. Enables unprecedented rendered image quality for visual effects processing.
High-Quality Display Connectors
Attaches to ultra-high-resolution digital panels producing phenomenal photorealistic image quality from a range of display connectors. The Quadro 4000 GPU simultaneously supports two active display channels including DVI-DL and DisplayPort at resolutions up to 2560 x 1600 at 60Hz. The included DVI to VGA adapter supports resolutions up to 2048 x 1536 at 85Hz. HDMI 1.3a compliant displays can be driven with a 3rd party adapter (must be purchased separately) at resolutions up to 1920 x 1080 at 60Hz.
OpenGL Quad Buffered Stereo Support
OpenGL Quad Buffered Stereo offers professional applications the ability to deliver a smooth and immersive 3D stereo experience. NVIDIA 3D Vision Pro support is also available by connecting the 3D Vision Pro hub to an available USB port.

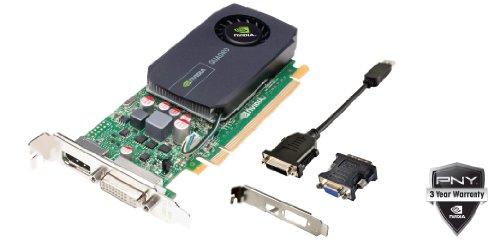

Package Contains NVIDIA Quadro 600 by PNY professional graphics board Low profile bracket (attached) Standard height bracket (unattached) DVI to VGA adapter DisplayPort to DVI adapter Driver CD (Windows 7, Vista, XP) with PDF documentation Printed Quick Install Guide
Minimum System Requirements Windows 7, Vista, XP SP3, Linux, or Solaris PCIe x16 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray, DVD-ROM or CD-ROM drive DisplayPort, DVI or VGA compatible display(s)
Product Description
NVIDIA Quadro 600 by PNY Technologies - Low-profile, power-efficient, professional graphics solution. Built for professionals, and certified on leading CAD and DCC applications, NVIDIA Quadro 600 by PNY delivers the best performance per watt in its class, maximizing productivity while conserving energy. Designed for both
