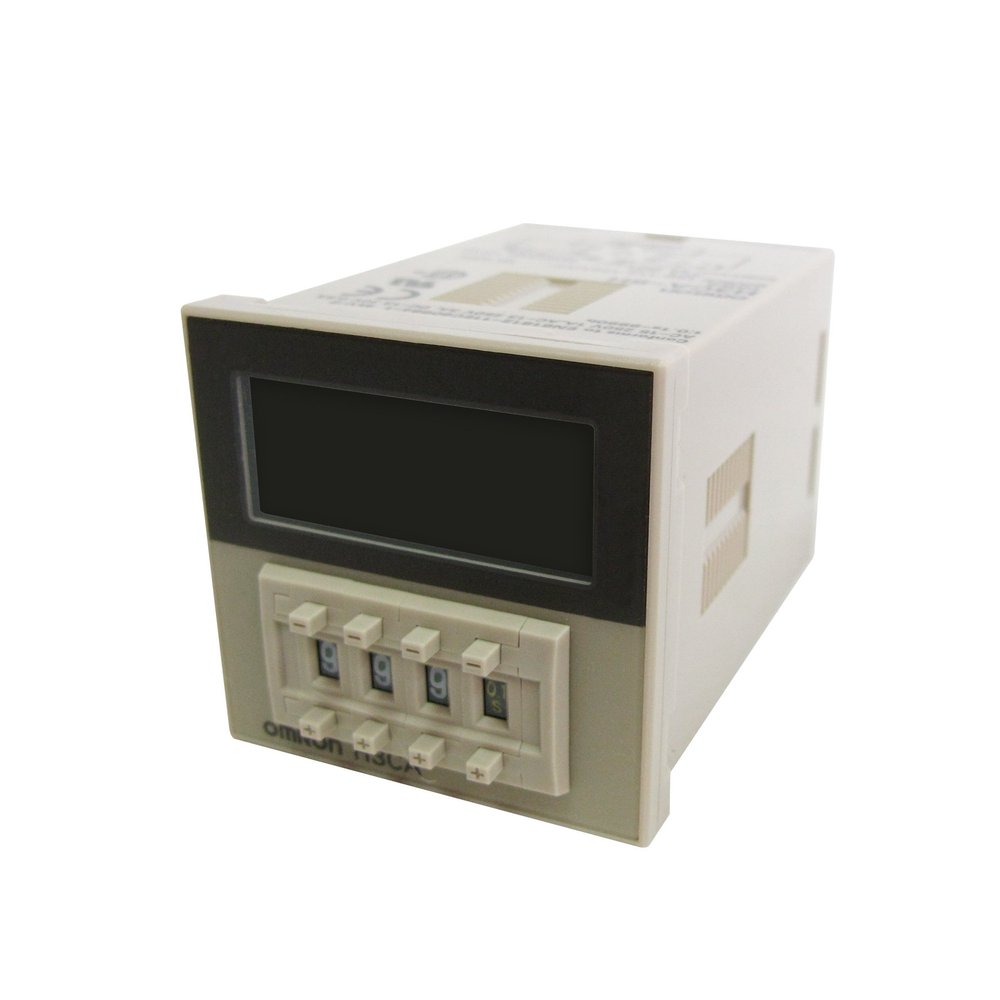

OMRON H3CA-8 DC24 Solid-State Timer (ON-delay Operation)(Supply Voltage: DC24V) NN

Description

• Products that we ship is a Japan version. There may be only a Japanese manual, if manufacture produced only for using in Japan. Even if you are injured using this, we shall not be responsible for any loss, damages and troubles. Since the shipment from Japan, it will take time to delivery. We have the case that we cannot ship depending on a delivery place.
• It is not in stock or the case of shipping in the next business day after, we will contact you by e-mail. 9:00 to 18:00(JST): Business hours (Saturday and Sunday, Spring holidays , Summer holidays, the New Year will be closed)

[Rated supply voltage] DC24V
[Operating voltage range] 85% to 110% of rated supply voltage
[Power consumption] Approx. 1W
[Time ranges(Number of ranges)] 7
[Time ranges]
0.1 s to 99.9 s / 1 s to 999 s / 0.1 min to 99.9 min /
1 min to 999 min / 0.1 h to 99.9 h / 1 h to 999 h / 10 h to 9990 h
[Select method] Thumbwheel Switch
[Output modes] A (Power ON delay)
[Control output (Contact output)]
Type: Time-limit contact: DPDT
Switching capacities (Resistive load): 3 A at 250 VAC
Switching capacities (Inductive load): 1 A 250 VAC (cos phi=0.4) / 2.5 A 24 VDC (L/R=7 ms)
Minimum applicable load: 10 mA at 5 VDC (failure level: P)
[Reset system] Self-reset
[Power reset] Reset time: 0.1 s max.
[Display method] LCD
[Mounting method] Flush mounting / Surface mounting
[External connection method] 8-pin round socket
[Case color] Light gray (Munsell 5Y7/1)
[Weight] Approx. 110g
