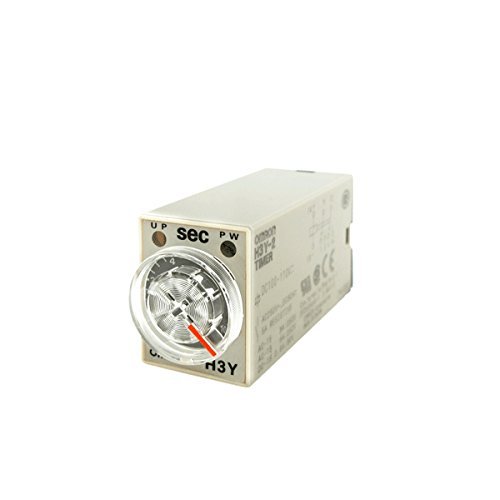

OMRON H3Y-2 DC24V 30M Solid-State Timer (DPDT)(Supply Voltage DC24V) NN

Description

[Rated supply voltage] 24VDC If power supply incorporates a single-phase full-wave rectifier. [Operating voltage range] 85% to 110% of rated supply voltage [Power consumption (Relay ON)] 1.1W [Power consumption (Relay OFF)] 0.1W [Reset voltage] 10% max. of rated supply voltage [Number of time ranges] 1 [Time ranges] 1min to 30min [Operating mode] Power ON-delay [Control output (Type)] Time-limit: DPDT [Control output (Contact output)] Switching capacities (resistive load (cos (phi) = 1)): 250VAC 5A Minimum applicable load: 1 mA at 5 VDC (failure level: P) [Operating resetting] Time-limit operation/Self-reset [Weight (Main)] Approx. 50 g [External connection method] Plug-in terminal [Case color] Munsell 5Y7/1 (Light gray) (1)
