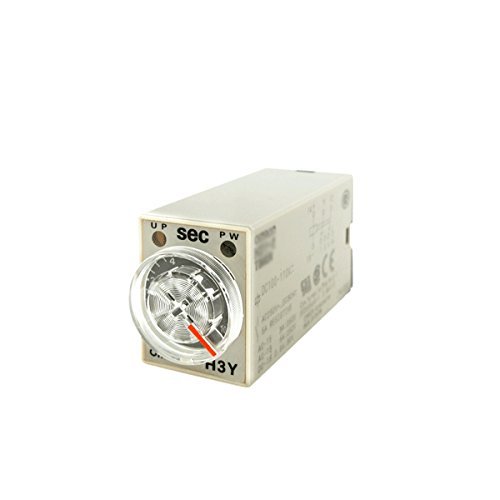

OMRON H3Y-4 AC100-120 60S 50/60Hz Solid-State Timer (4PDT)(Supply Voltage 100 to120VAC) NN

Description

[Operation/resetting system] Time-limit operation/self-resetting
[Time-limit contact] 4PDT
[Supply voltage] 100 to 120VAC(50/60Hz)
[Mounting] Surface/DIN-track mounting(with socket)

Time Ranges
[Rated time] 60 s
[Time setting range] 2.0 to 60 s

[Item] H3Y-4

?Rated supply voltage *2
[Reset voltage] 10% min. of rated supply voltage *2
[Power consumption]
Relay ON: Approx. 1.8 VA (1.6 W) at 120 VAC, 60 Hz
Relay OFF: Approx. 1 VA (0.6 W) at 120 VAC, 60 Hz
[Control outputs] 3 A at 250 VAC, resistive load (cos phi = 1)
The minimum applicable load is 1 mA at 1 VDC (P reference value).
Contact materials: Au-clad + Ag-alloy
*1. Do not use the output from an inverter as the power supply. Refer toSafety Precautions for All Times for details.
*2. Use the Timer within 90% to 110% of the rated supply voltage (95% to110% for 12 VDC) when using it continuously
under an ambient operating temperature of 50 deg.(C).
*3. Set the reset voltage as follows to ensure proper resetting.
100 to 120 VAC:10 VAC max.
200 to 230 VAC:20 VAC max.
100 to 110 VDC:10 VDC max.
*4. Refer to Safety Precautions for All Times when combining the Timerwith an AC 2-wire proximity sensor.
*5. A diode to prevent reverse voltages is provided only on models witha DC power supply.

(1)
