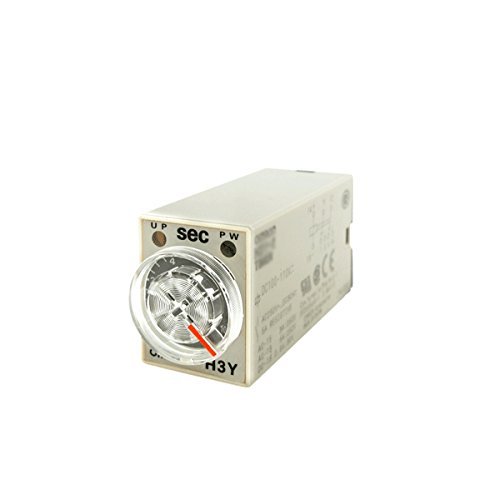

OMRON H3Y-4 AC200-230 30M 50/60Hz Solid-State Timer (4PDT)(Supply Voltage 200 to 230VAC) NN

Description

[Operation/resetting system] Time-limit operation/self-resetting [Time-limit contact]4PDT [Supply voltage] 200 to 230 VAC(50/60Hz) [Mounting] Surface/DIN-track mounting(with socket) Time Ranges [Rated time] 30 min [Time setting range] 1 to 30 min [Item] H3Y-4 [Rated supply voltage *2 [Reset voltage] 10% min. of rated supply voltage *2 [Power consumption] Relay ON: Approx. 1.8 VA (1.6 W) at 120 VAC, 60 Hz Relay OFF: Approx. 1 VA (0.6 W) at 120 VAC, 60 Hz [Control outputs] 3 A at 250 VAC, resistive load (cos phi = 1) The minimum applicable load is 1 mA at 1 VDC (P reference value). Contact materials: Au-clad + Ag-alloy *1. Do not use the output from an inverter as the power supply. Refer toSafety Precautions for All Times for details. *2. Use the Timer within 90% to 110% of the rated supply voltage (95% to110% for 12 VDC) when using it continuously under an ambient operating temperature of 50 deg.(C). *3. Set the reset voltage as follows to ensure proper resetting. 100 to 120 VAC:10 VAC max. 200 to 230 VAC:20 VAC max. 100 to 110 VDC:10 VDC max. *4. Refer to Safety Precautions for All Times when combining the Timerwith an AC 2-wire proximity sensor. *5. A diode to prevent reverse voltages is provided only on models witha DC power supply. (1)
