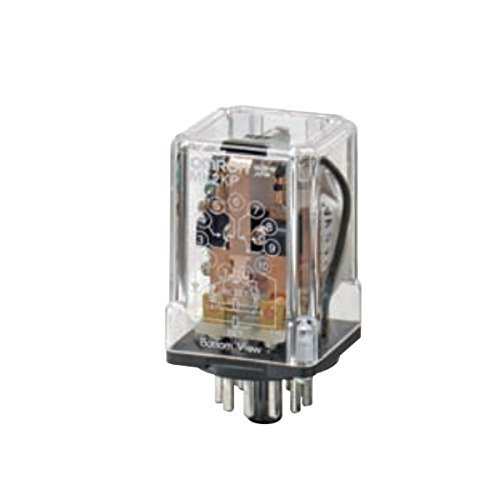

OMRON MK2KP AC100/(110) Latching Relay(DPDT)(Plug-in Type)(AC) NN

Description

• Products that we ship is a Japan version. There may be only a Japanese manual, if manufacture produced only for using in Japan. Even if you are injured using this, we shall not be responsible for any loss, damages and troubles. Since the shipment from Japan, it will take time to delivery. We have the case that we cannot ship depending on a delivery place.
• It is not in stock or the case of shipping in the next business day after, we will contact you by e-mail. 9:00 to 18:00(JST): Business hours (Saturday and Sunday, Spring holidays , Summer holidays, the New Year will be closed)

Time Ratings [Rates Voltage(V)]AC100/(110) [Set coil] Rated current(mA): 17.8 Coil resistance(W): 1,670 [Reset coil] Rated current(mA) AC100/(110)3.6 Coil resistance(W) AC100/(110)13,350 [Must set voltage][Must reset voltage] (% of rated voltage) 80 max. [Maxium voltage]110 [Power consumption(VA,W)] Set coil Approx. 1.5 to 2 Reset coil Approx. 0.1 to 0.7 Note1. The rated current and coil resistance are measured at a coil temperature of 23%C with tolerances of +15%,-20% for rated current, and +15% for rated coil resistance. 2. The rated current and performance characteristics are measured at a coil temperature of 5 to 35%C. 3. Peak reverse voltage of the built-in diode is 1,000 V. Contact Ratings [Rated load] Resistive load(cos?phi =1): 220 VAC: 5A, 24VAC: 3A Inductive load(cos?phi =0.4;L/R=7ms) 220VAC: 2A, 24VDC: 2.5A [Carry current] 5A [Max. operating voltage] 500VAC,250VDC [Max. swiching capacity] Resistive load(cos phi =1) 1,100VA,72W Inductive load(cos phi =0.4;L/R=7ms) 440VA,60W [Minimum permissible load]1VDC 1mA(reference value) (1)
