Description
- Copies one (1) signal up to 16 times with optical passive splitter (Securing the distance without any signal loss)
- Reads and restores the targeted EDID in the transmitter (Self-EDID)
- Provides Power, Status (Signal transmission in the transmitter and signal detection in the receiver) LED indicators
- Supports up to WUXGA (1920x1200), 60Hz; Supports bit rate up to 1.65Gbps/ch

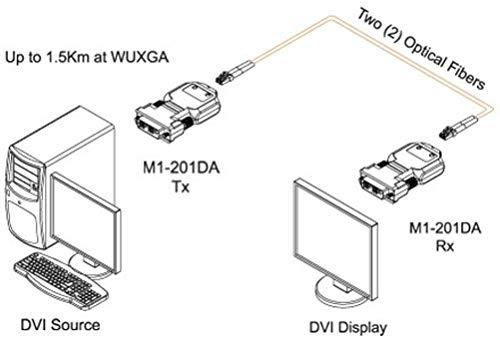

- Uncompressed DVI signal up to 1,500m (4,920feet) over a duplex single-mode fiber or 500m (1,640feet) over a duplex multi-mode fiber with LC terminated connector

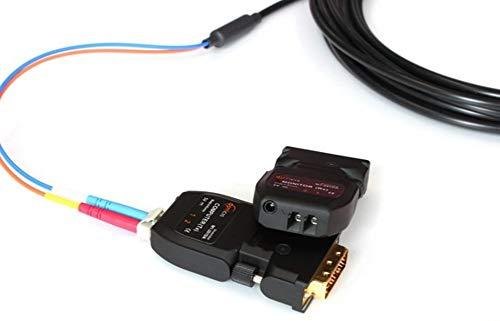

Opticis M1-201DA-TR Two Fiber Detachable Optical DVI Module (Small Form Factor), Auto-power Switching, Supports Up to WUXGA (1920x1200), Supports Bit Rate Up to 1.65Gbps/ch
The detachable DVI extender, M1-201DA-TR offers easy connection to your existing system with minimum efforts and no modification, since it is designed compactly enough and compatible with all industry standard connectors. The metallic die-casting enclosure gives reliable installation, excellent EMI shields and heat dissipation in harsh and noisy environments. For better installation flexibility, it features patent pending Self-EDID management, reading and restoring by just plugging transmitter module to the display. Key Features Small and solid aluminium enclosure Easy and simple installation Copies one (1) signal up to 16 times with optical passive splitter (Securing the distance without any signal loss) Reads and restores the targeted EDID in the transmitter (Self-EDID) Provides Power, Status (Signal transmission in the transmitter and signal detection in the receiver) LED indicators Auto-power switching Supports up to WUXGA (1920x1200), 60Hz Supports bit rate up to 1.65Gbps/ch Uncompressed DVI signal up to 1,500m (4,920feet) over a duplex single-mode fiber or 500m (1,640feet) over a duplex multi-mode fiber with LC terminated connector Specifications Operating temperature: 0 ~ 50C Storage temperature: -30 ~ 70C Humidity: 10% to 85% Power Input: AC 100-240V, 50/60Hz 0.1A Power Output: +5 V, 1A SMPS DC-power Adapter Cord DC Jack: Core is 5 V and outer is GND Dimensions (WxDxH): 39 x 69 x 15mm Certifications: CE/FCC, IEC/EN 60601-1-2:1994, Class 1 Laser Eye Safety
