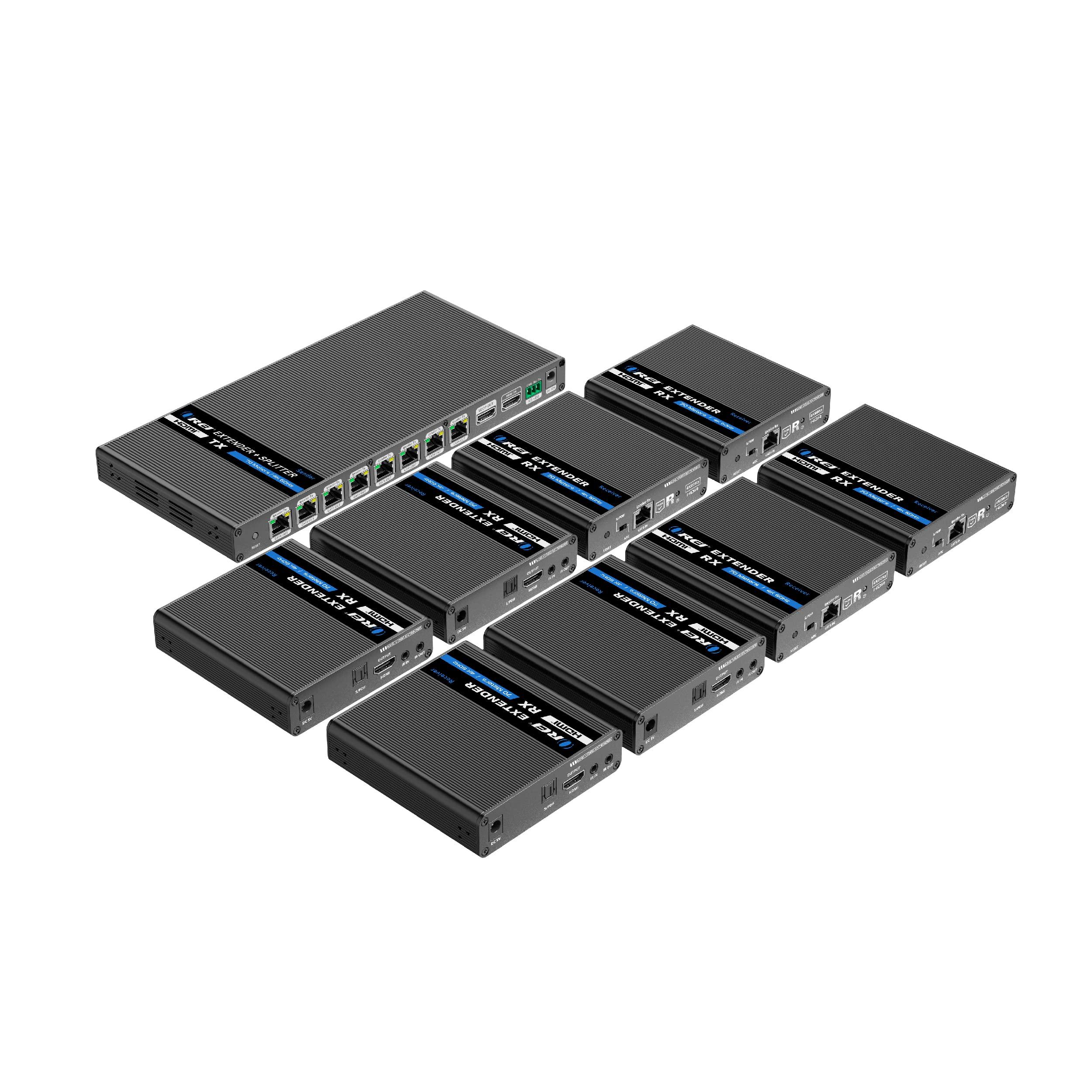

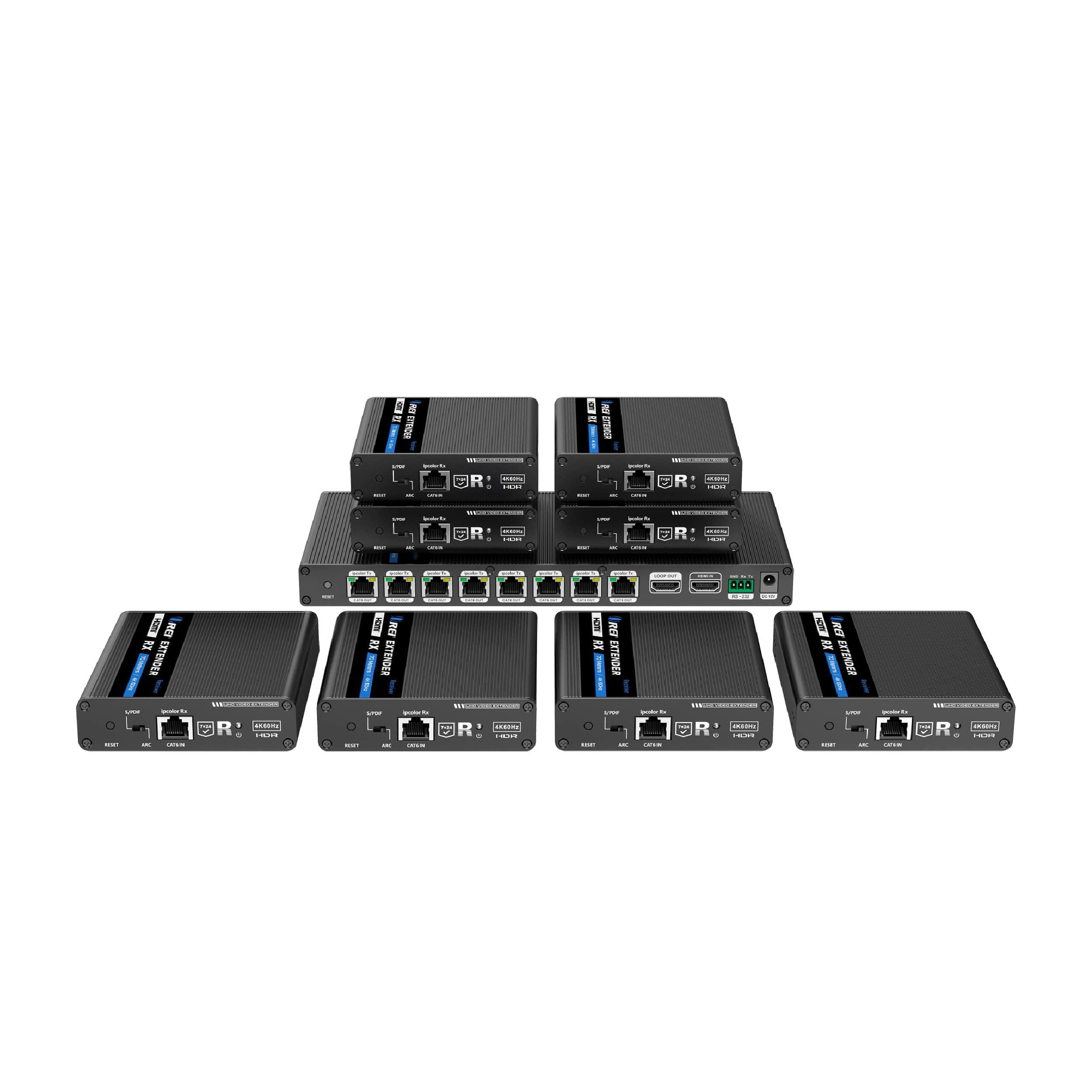

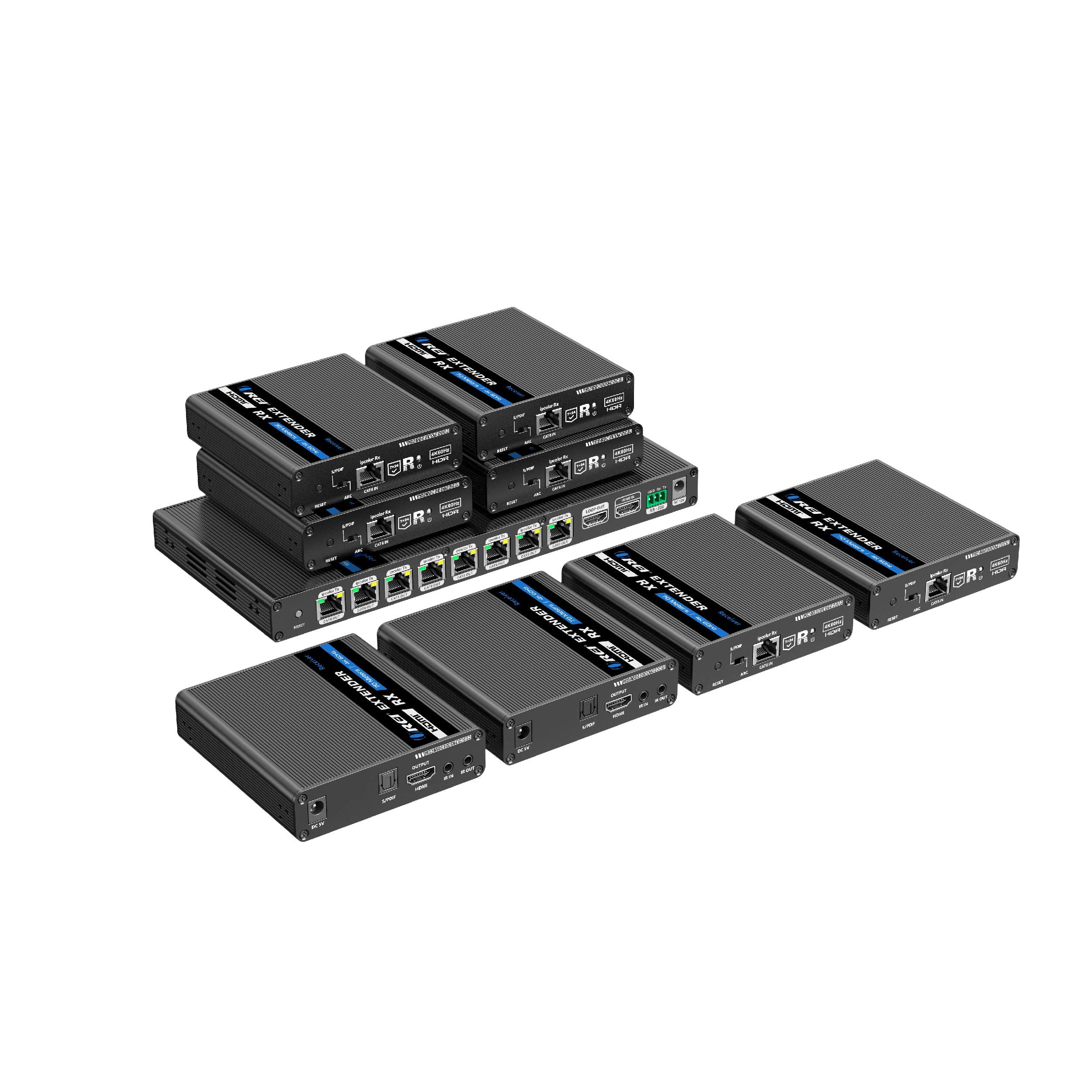

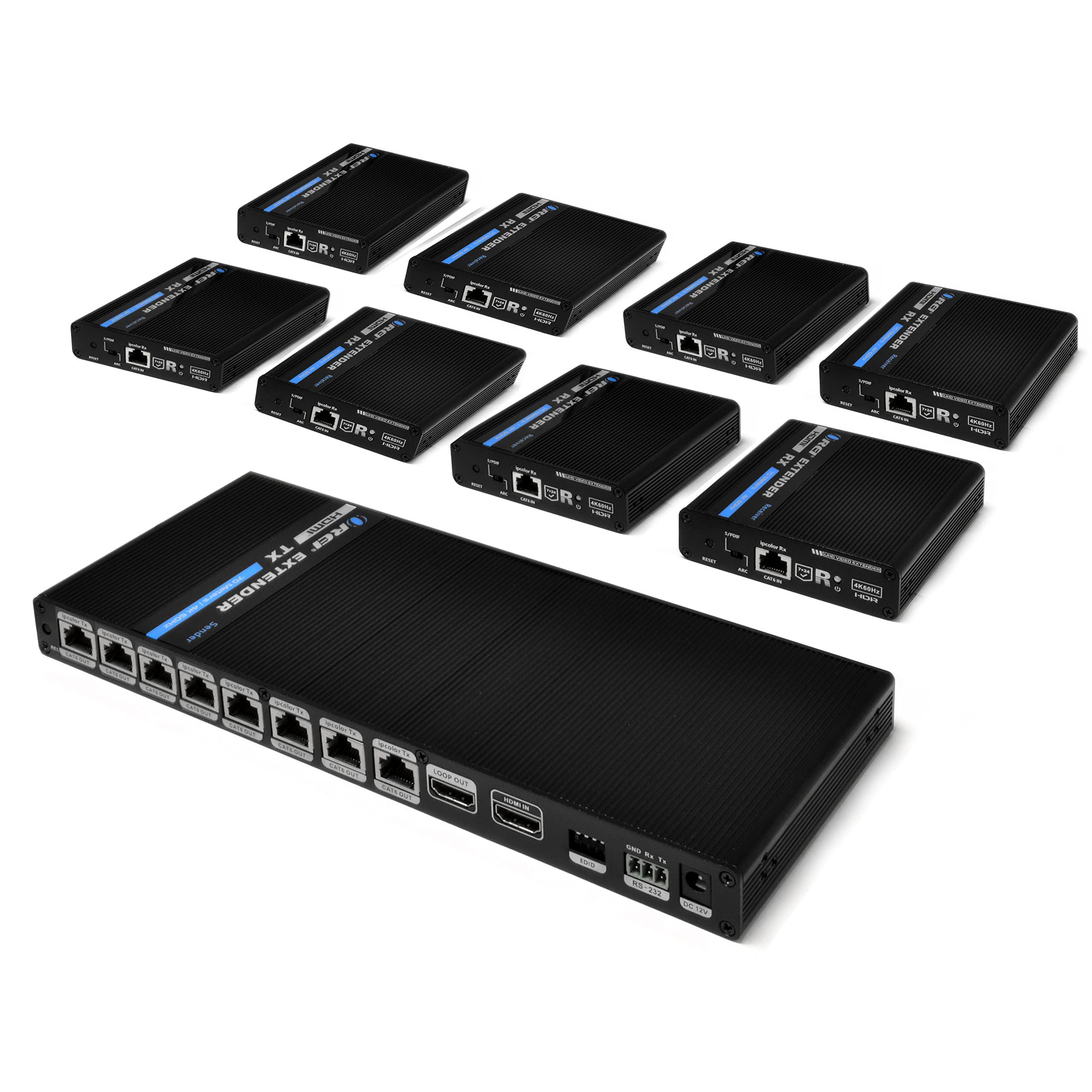

OREI 1x8 HDMI Extender Splitter 4K Multiple Over Single Cable CAT6/7 4K@60Hz 4:4:4 HDCP 2.2 with IR Remote EDID Management - Up to 230 Ft - Loop Out - Low Latency - Full Support IR RS-232 Control

$ 1,165.44
Pseudo Checkbox Icon
Order within 0 hours and 0 minutes to get between -
Buying Bulk?
Delivery Truck IconTracked Shipping on All Orders Secure Payments
Headphones Icon 24/7 Customer SupportReturn Product Arrow Icon14-Day Returns
Description

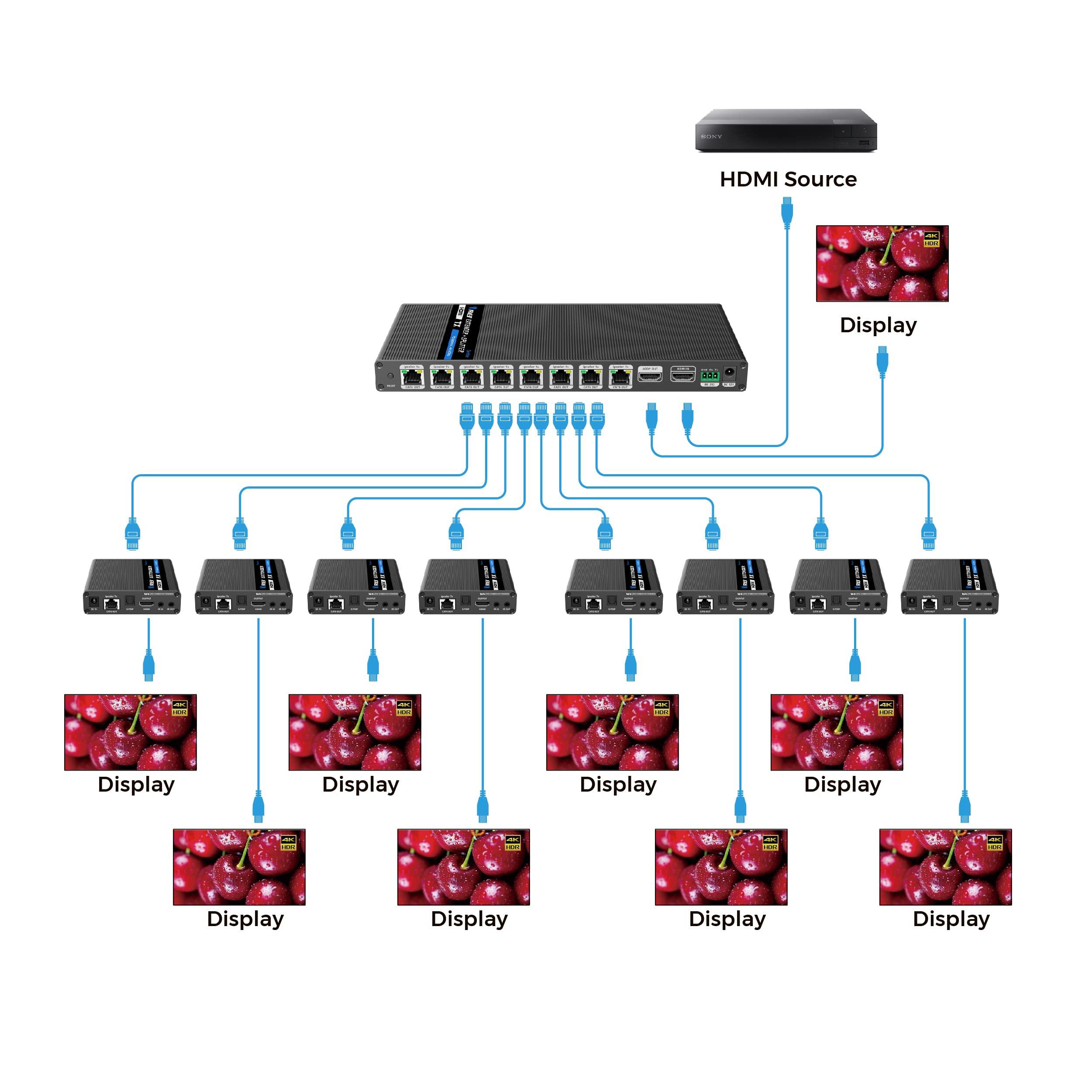

  • Distribute 4K 1 HDMI source to 8 HDMI displays over Cat6/7/8 Network Cable Simultaneously, Splitter Included - No Switcher Needed - Adapter needed on Receiver Side
  • Output 4K signal upto 230 Feet with Cat6/7 cable and 1080P signal upto 165 Feet. HDMI Transmitter is equipped with 8 Port CAT6 Output. And 1 Additional HDMI Output to connect to a local display or monitor. Supports HDR, HDR10, HDR10+, Dolby Vision, HLG
  • Loop Out on Sender Unit, Full IR Remote Control Input, Uni Directional IR. Supports 20~60Hz IR Pass Back, Control a DVD Player or Other HDMI Video Source from a Remote Location with the included IR cables that forward commands over a dedicated DDC Channel. Support EDID Passthrough or Manual Set the EDID.
  • Supports 18Gbps Bandwith, Plug & Play Setup without any Software Installation. Compatible with CAT6/6a/7 Network Cables. The highest Resolution Supported is 3840x2140p@60Hz, Ideal Solution for HDMI Exhibition, Video Conference, Meeting rooms and Bars, ect.
  • Includes: 1 x Transmitter, 8 x Receivers, 9 x Power Adapter, 1 x IR Blaster Cable, 8 x IR Receiver Cables, 36 x Mounting Brackets, 1 x User Manual. 1 Year OREI Manufacturer's Warranty


Product Description

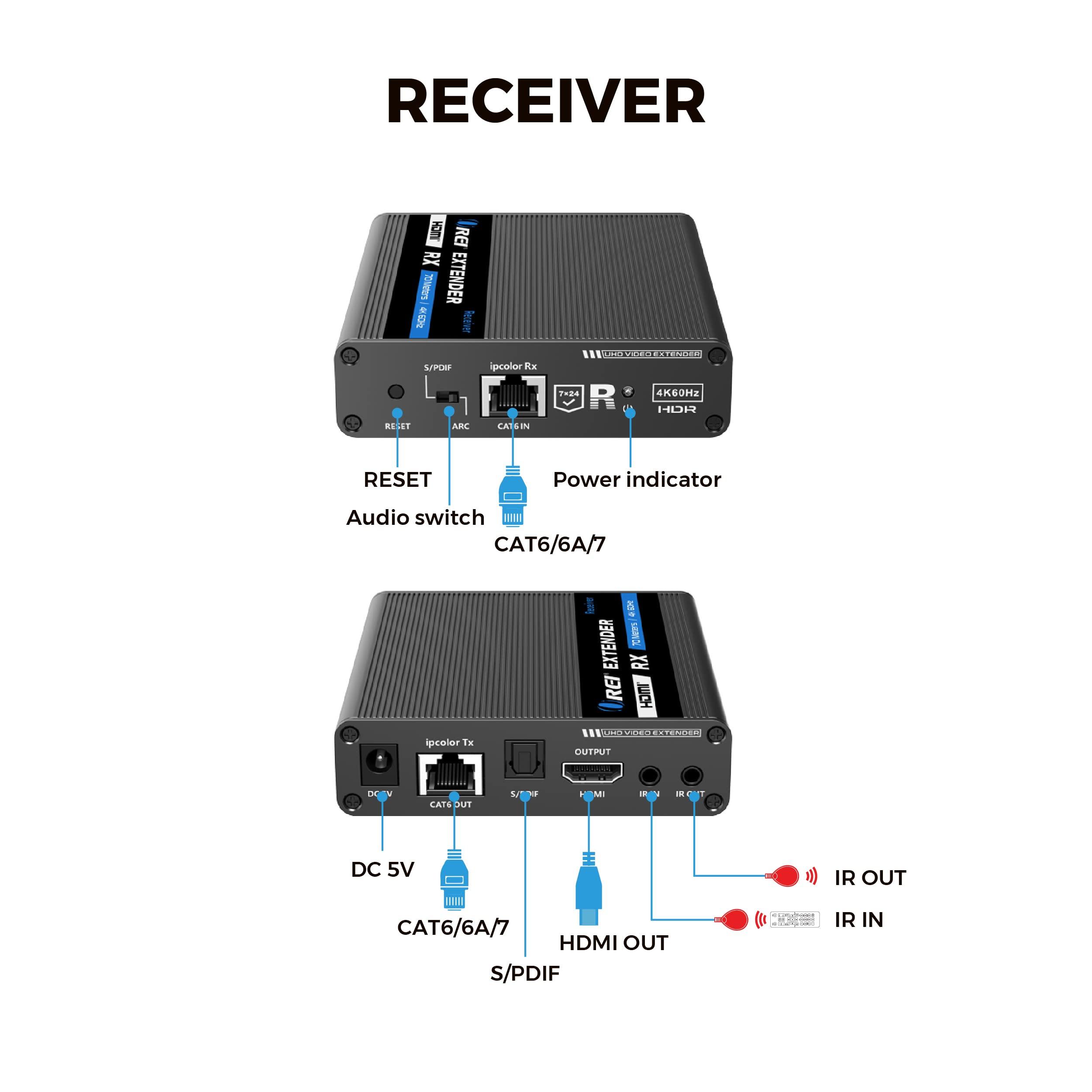

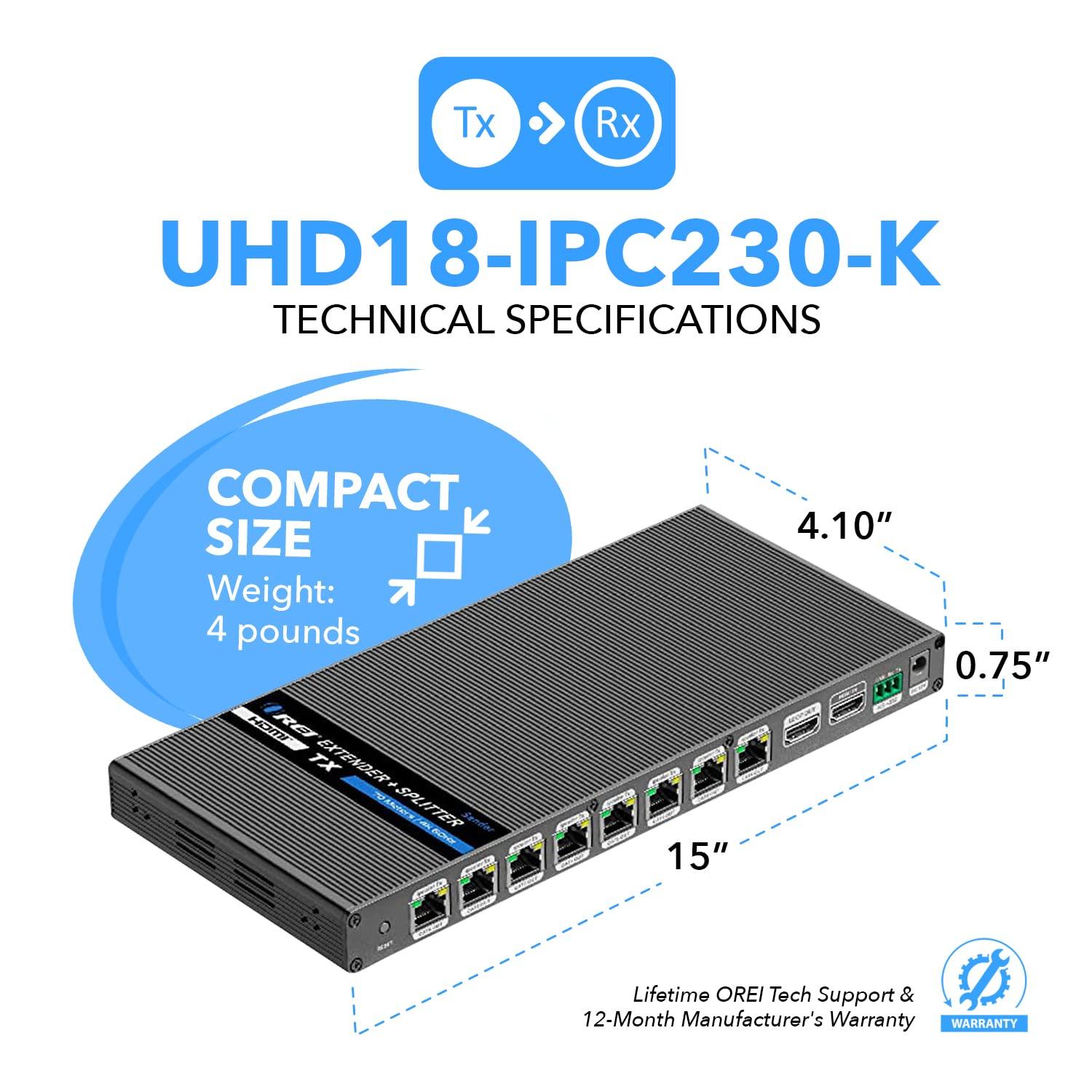

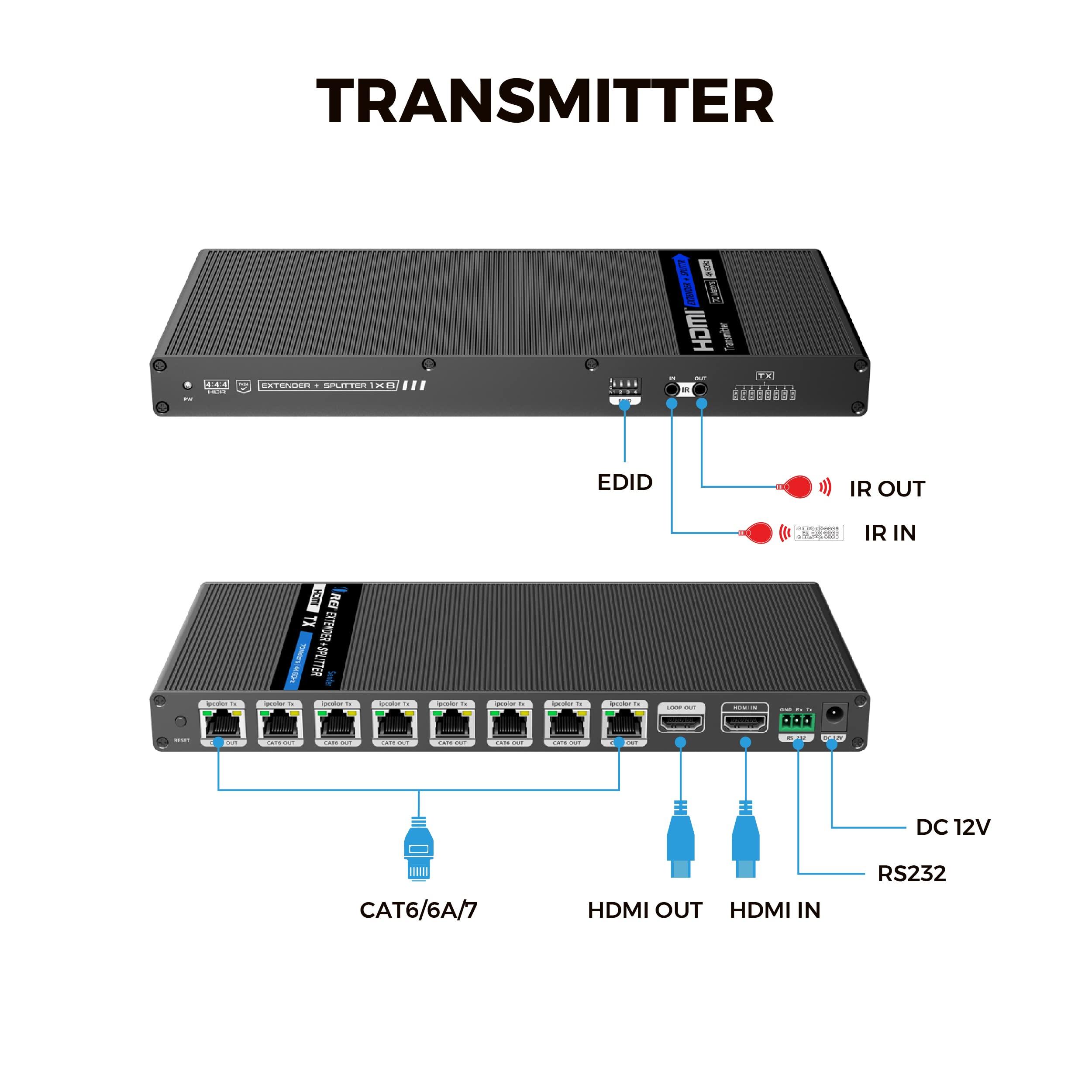

UHD18-IPC230-K is 1 Input 8 Outputs Extender Splitter Kit, which integrates the functions of distribution and extension. You can enjoy seamless videos with zero latency. It distributes 1 HDMI input signal to 8 identical signal outputs, extends these signals up to 230 feet, and supports 18 Gbps video bandwidth 4K@60Hz resolution with ipcolor technology. It also supports bi-directional IR pass back, RS-232 control and advance EDID control settings This product has an HDMI loop out port so that you can connect a local display to the transmitter & enjoy the video. It is suitable for studios, multimedia classrooms, rail transit, etc. We recommend you using shielded CAT6 cables & high-quality HDMI cables for optimum performance.
