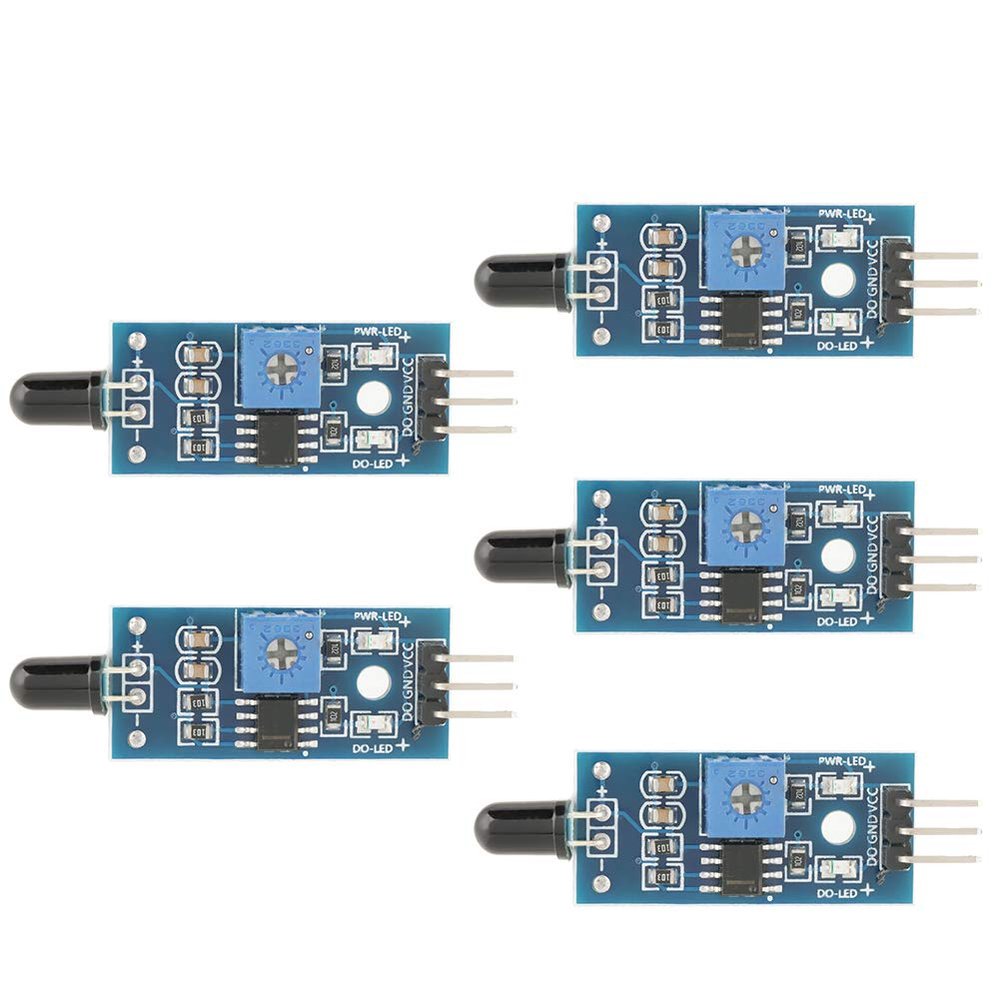

Oumefar 5 Pcs Compatible IR Infrared Flame Sensor Detection Module 3.3V-5V IR Flame Sensor Detector Module for Detecting Flame

Description

• LONG TESTING DISTANCE: This compatible IR infrared flame sensor detection module can detect a flame or the light of 760~ 1100nm wavelength, lighter flame test distance of 80cm, for the greater flame, the farther the distance test
• GREAT DRIVING ABILITY: Our 3.3V-5V flame sensor module has comparator output, which has wonderful properties of clean signal, good waveform, and strong driving ability. This current is more than 15mA
• SIXTY DEGREE DETECTION ANGLE: The detection angle of our flame sensor detector module is about 60 degrees, and our IR infrared flame sensor detection module is particularly sensitive to the flame spectrum
• ADJUSTABLE SENSITIVITY: The sensitivity of this 3.3V-5V flame sensor module is adjustable. Our infrared flame sensor module with adjustable precision potentiometer is for sensitivity adjustment
• CONVENIENT INSTALLATION: Our IR flame sensor module with fixed bolt holes is convenient for you to install easily, so you can rest assured to use this adjustable IR flame sensor detector module when you own our products

Specifications:
The working voltage: 3.3V-5V
The output format: DO digital switching outputs (0 and 1) and AO analog voltage output
Comparator: wide voltage LM393
Length: 4.5cm / 1.77in
Weight: 4g

Wiring instructions:
Product wiring description:
VCC: 3.3-5V power supply "+"
GND: power supply "-"
DO: TTL switch output.
AO: analog output (voltage )

Instructions for use:
1. the flame sensor is most sensitive to flame, for ordinary light, it is also responsive
, generally used as a flame alarm purposes.
2. the output interface can be directly connected to the micro-controller IO port.
3. The sensor must be kept at a distance from the flame to avoid damage to the sensor.
lighter flame test distance of 80cm, for the greater flame, the farther the distance test
4. Analog output and the AD conversion process, can achieve higher accuracy
5. When the sensor detects a flame, sunlight, or infrared light, if achieve potentiometer setting threshold, the green indicator light will ON, the DO output low level (0-0.1 - V), the green light is OFF, the DO output about 3 V high voltage level

Package included:
5 x IR Flame Sensor Module
