Description
- Modular design allows flexibility to assemble system in multiple configurations
- Unique chaining bracket design creates a strong metal backbone and allows expansion of the system without disturbance of an existing installation
- Brackets allow for attachment to ceilings, beams, threaded rods, and drop wires to meet requirements of a variety of applications
- Manufactured from materials that meet UL 2043 and are suitable for use in air handling spaces
- Complete horizontal and vertical 1" bend radius control

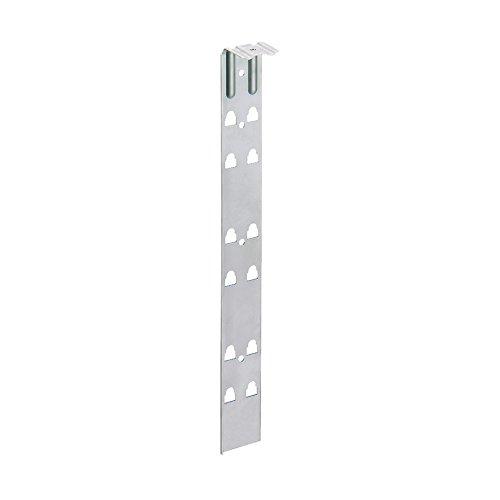

The Panduit JMCMB25-3-X is a three-level ceiling mount bracket with one 1/4 (M6) mounting hole. The bracket has a maximum capacity of six J hooks. The unique chaining bracket design creates a strong metal backbone and allows expansion of the system without disturbance of an existing installation. Offers complete horizontal and vertical 1" bend radius control. Manufactured from materials that meet UL 2043 and are suitable for use in air handling spaces. Suitable for use in air handling spaces and listed in accordance with UL 2043 and CAN/ULC S102.2 when mounted as single units or in pairs. Maximum spacing of 4' (1220mm) required between mount points. (Flame Spread Rating = 0, Smoke Developed Classification = 30)
