Description
- SELECTABLE PULSE TIME: The feature sets the length of time that the pulse relay will be energized for 1 second or 0.5 second, and the pulse relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop
- RESET SWITCH: The reset switch enables the detector to be manually reset during commissioning and testing. This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection
- PRACTICAL: The feature ensures detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods, more convenient to use
- MAINLY USED: The vehicle loop detector is mainly used to detect the existence and passing of vehicles, which could be used for car parking lot, gate, traffic control
- AFTER SALE SERVICE: Except the premium product we provide, we also provide considerate after sale service. Please us for any problem about our product. It is our pleasure to service you
Specifications:
Supply voltage: 220VAC; Power: 4.5VA; Output relays: 240V/5A
Operating temperature: -20~65C; Storage temperature: -40~85C
Frequency range: 20 kHz to 170 kHz; Temperature compensation: 50C/ h
time: 10ms; holding time: Unlimited/limited
Sensitivity: Higher:0.02%; high:0.05%; low:0.1%; lower:0.5%
Loop inductance: Total loop plus connection wiring:50?H to 1000?H. Ideal is 100?H to 300?H
Loop connection: wiring 200 meters long. The total is less than 80hm, twisted at least 20 times per meter
Relative humidity:<90%No condensation; Weight: 283g
Package included:

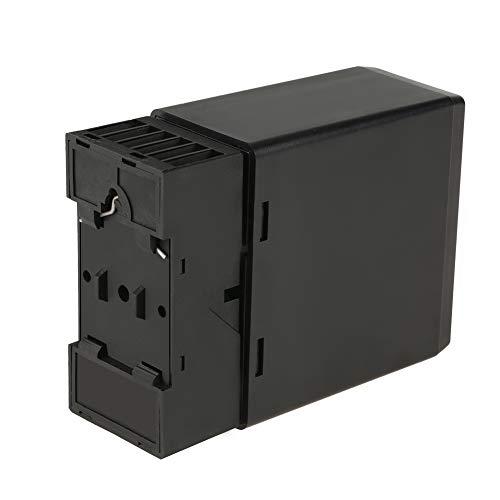

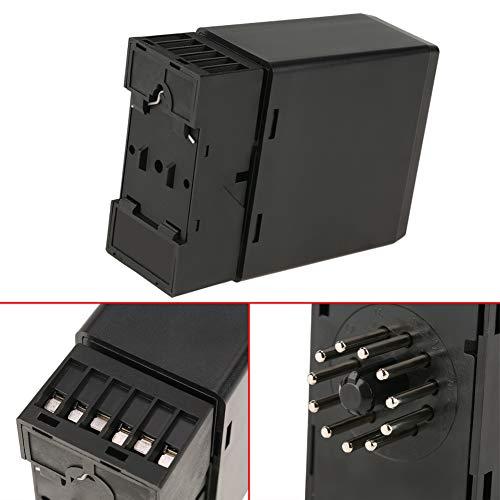

1 Vehicle Loop Detector ;1 manual
