Description
Highlights: / 12 Vdc 3 A 36 W Input1 -phase Input voltage range 85 - 264 V/AC / 90 - 250 Vdc Connections: Screw terminals Ideally suitable for Installation distributor and flat control cabinet
Features: Worldwide use of wide-range output and international approval package High operational reliability thanks to high MTBF >500 000 h Parallel switch bar for increased output and redundancy Simplified operation by LED fault monitoring High reliability through long mains buffering times> 20 ms Snapped onto the DIN rail or screwing-on on flat surface.

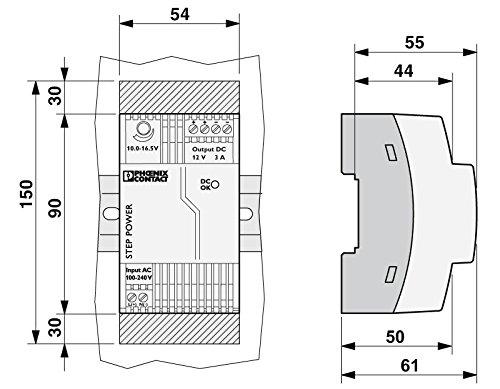

Technical Specifications: Connections: Screw terminals Dimensions: (W x H x D) 54 x 90 x 61 mm Input voltage range: 85 - 264 V/AC / 90 - 250 Vdc Manufacturer part no.: 2868570 Nominal input voltage: 115 V/AC, 230 V/AC, 90 - 250 V/DC Number of outputs: 1 Number of phases: 1 Output current: 3 A Output voltage: 12 Vdc PSU type: Switched PSU Power: 36 W Type (manufacturer type): STEP-PS/1AC/12DC/3 Weight: 0.2 kg

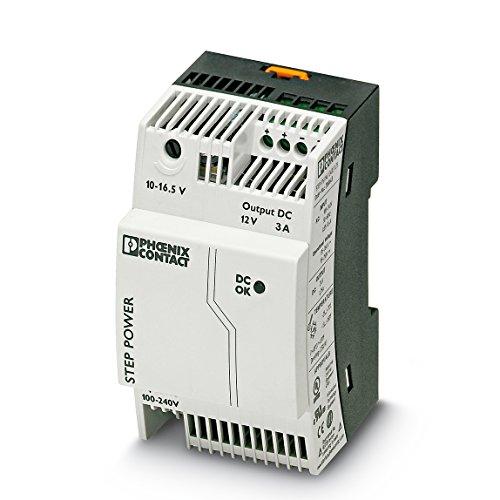

Description: The compact power supply of the STEP-POWER-generation is due to its design specifically for service distribution and flat control panels. At the output, 12 V/DC and max. 3 A are available. Through the high degree of efficiency and low standby losses a high level of energy efficiency is achieved.
Features: Worldwide use of wide-range output and international approval package High operational reliability thanks to high MTBF >500 000 h Parallel switch bar for increased output and redundancy Simplified operation by LED fault monitoring High reliability through long mains buffering times> 20 ms Snapped onto the DIN rail or screwing-on on flat surface.
Technical Specifications: Connections: Screw terminals Dimensions: (W x H x D) 54 x 90 x 61 mm Input voltage range: 85 - 264 V/AC / 90 - 250 Vdc Manufacturer part no.: 2868570 Nominal input voltage: 115 V/AC, 230 V/AC, 90 - 250 V/DC Number of outputs: 1 Number of phases: 1 Output current: 3 A Output voltage: 12 Vdc PSU type: Switched PSU Power: 36 W Type (manufacturer type): STEP-PS/1AC/12DC/3 Weight: 0.2 kg
Description: The compact power supply of the STEP-POWER-generation is due to its design specifically for service distribution and flat control panels. At the output, 12 V/DC and max. 3 A are available. Through the high degree of efficiency and low standby losses a high level of energy efficiency is achieved.
