Description
- Ports: 16 10/100TX 802.3at PoE + 2 10/100/1000TX TP/SFP
- Total PoE Budget: 300 Watts
- Power Consumption: Max. 330 Watts/ 1132BTU
- Throughput: 8.3Mpps @ 64Bytes
- Operating Temperature: -10 to 60C

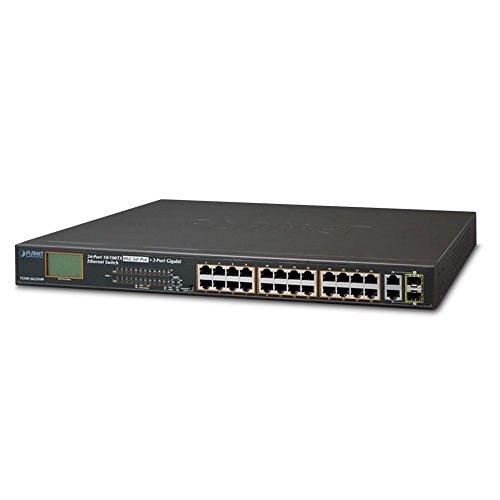

Planets FGSW-1822VHP is a Plug and Play Power over Ethernet (PoE) switch that provides real-time PoE status monitoring with its LCD display without requiring any PC or software. The FGSW-1822VHP features 16 10/100BASE-TX ports that support up to 30 Watts (30W) of 802.3at Power over Ethernet Plus (PoE+) power. With a total PoE power budget of up to 300 watts and non-blocking data switching performance, the FGSW-1822VHP fulfills the demand of sufficient PoE power for HD IP surveillance. The PoE Switch also features 2 Gigabit TP/SFP combo interfaces.
The desktop-sized unit offers a reliable solution for small and medium-sized businesses and system integrators seeking to deploy Power over Ethernet networks.The LCD monitor of the FGSW-1822VHP displays PoE loading of each port, total PoE power usage and other system status indicators such as overload, low-voltage, over-voltage and high-temperature. Network Installers and System Integrators can easily obtain detailed information about real-time PoE working condition of the FGSW-1822VHP with the units new LCD monitor. In addition, the Power Budget Control function helps to prevent power budget overloading.
The units built-in solid DIP switch provides Standard and VLAN operation modes. The FGSW-1822VHP operates as a normal IEEE 802.at/af PoE Switch when working in the Standard operation mode. The VLAN operation mode features the port-based VLAN function that can help prevent the IP cameras multicast or broadcast storm from influencing each other. The FGSW-1822VHP provides 2 extra Gigabit TP/SFP combo interfaces that support 10/100/1000BASE-T RJ45 copper interfaces ideal for surveillance network devices such as NVR, video streaming server or NAS to facilitate surveillance management.
