Description
- Ports: 5 10/100/1000TX Shared 4 802.3at PoE+
- Type: Unmanaged | Console: No
- Max Watts per port: 30
- Operating Temperature: -40 to 75C

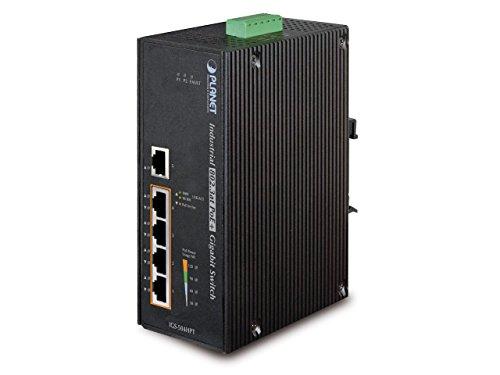

The IGS-504HPT from Planet Technology is a Industrial Gigabit 802.3at PoE+ Switch that offers Power over Ethernet ability and non-blocking wire-speed Gigabit performance in environments that are harsh. It provides 4-port 10/100/1000Base-T copper with 802.3af/at PoE injector delivered in an IP30 rugged strong case with redundant power system. The IGS-504HPT features versatility for applications and allows users to manage wireless systems in environments that experience different temperatures ranging from -40 to 75 degrees C.
The IGS-504HPT showcases 4 10/100/1000Mbps ports that feature IEEE 802.3af and IEEE 802.3at Power over Ethernet Plus (PoE+). For each port, the unit features 30 watts of power output and data over a single Cat.5E / 6 Ethernet cable. The unit features a total of 120-watts of PoE budget and offers powered devices that are crafted to meet the demands of powered devices that require additional power.
The IGS-504HPT allows users to manage and monitor the use of PoE power simply with the advanced LED indication. The PoE Power Usage feature includes four orange LED that display either 30W, 60W, 90W or 120W of power usage.
