Description
- 4-Band Dual Zone Active Equalizer Bass, Mid-Bass, Mid, High
- 3 Zone Volume Control and Output
- Front Panel Selectable Inputs - Bluetooth, Aux, RCA
- Front Panel Track Selector - Track Up / Down
- Conformal Coated PCB

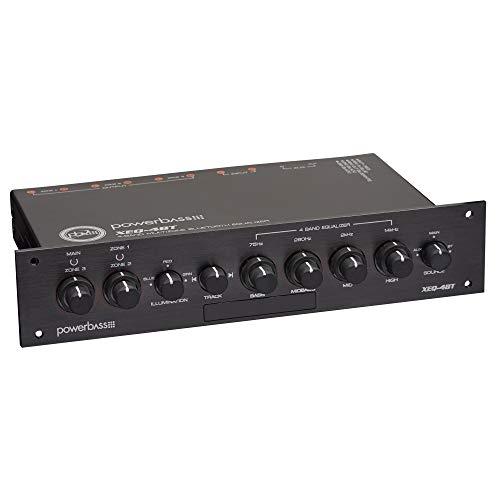

PowerBass XEQ-4BT 4 Band, 3 Zone, Bluetooth Power Sports Equalizer
The XEQ-4BT 4 Band, 3 Zone, Bluetooth Equalizer is the perfect solution to take your UTV, Boat, or RV sound system from good to excellent by giving you dual 4 Band EQ control as well as a 3 zone output with Master Volume control. With built in Bluetooth connectivity, the XEQ-4BT becomes your source unit allowing full front panel control of track up or down as well as a the tri-color front panel selector so you can match the eq's illumination to your OEM or aftermarket lighting color. Switching through inputs is as easy as a turn of the knob with the front panel input selector; you can quickly cycle through your Bluetooth, Aux, or RCA inputs.
Features -
4-Band Dual Zone Active Equalizer Bass, Mid-Bass, Mid, High
3 Zone Volume Control and Output
Variable Master Volume Control
Front Panel Selectable Inputs - Bluetooth, Aux, RCA
Front Panel Tri Illumination Selector - Red, Blue, Green
Front Panel Track Selector - Track Up / Down
6V RMS output
Bi-Polar PWM Power Supply
Frequency Response: 20Hz-40KHz
Selectable 120/80Hz Subwoofer Crossover
Conformal Coated PCB
Specifications -
Pre Graphic Frequency: 70Hz, 250Hz, 2kHz, 1.4kHz
Inputs: switchable, 3-source RCA /3.5mm AUX/Bluetooth
Equalization Boost/Cut: +/- 18dB
Subwoofer Frequency Range: 20Hz - 120Hz
Channel Separation: >75dB
Maximum Output Voltage: 10Vrms
Power Supply: 11-15V DC negative ground
Height: 1.3"
Width: 6.8"
Depth: 4.2"
Dimensions (in Inches): 1.3" x 6.8"x 4.2"
S/N Ratio: >100dB
Total Harmonic Distortion: 0.05%
Frequency Response: 20 Hz - 40 kHz
