Description
- As todays vehicles become smaller they present a challenge to find a place for a big amplifier with big power output.
- The XMA amplifiers are ideal for tight installations making it possible to put this series in places other amplifiers cant go.
- The XMA amplifiers carry on the tradition of looking good and sounding great while taking up less space than any other amplifier PowerBass has ever offered
- Limited space no longer means sacrificing great sound with the new PowerBass XMA Amplifiers.

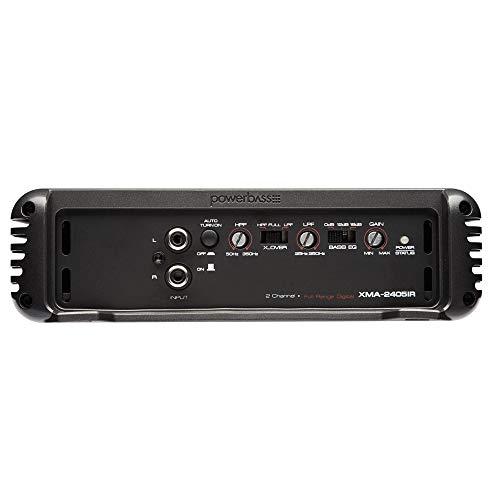

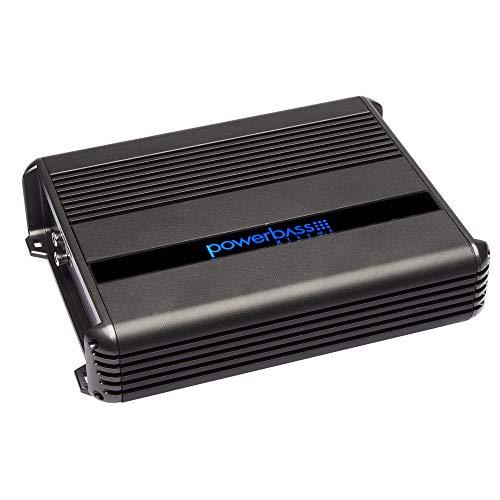

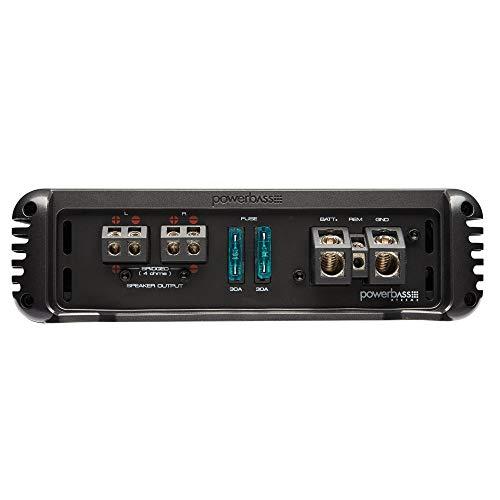

PowerBass XMA-2405IR 2ch 800 Watt Compact Amplifier
The XMA amplifiers carry on the tradition of looking good and sounding great while taking up less space than any other amplifier we have ever offered and smaller than most amps available from the majority of our competitors at the same output levels. High efficiency FRD (Full Range Digital) technology allows these amplifiers to operate at well over 85% efficiency.
Limited space no longer means sacrificing great sound with the new PowerBass XMA Amplifiers.
Features -
800 Watt High Efficiency Full-Range Class D Design
2-OHM Stable Stereo Amplifier
Ultra Low Current Draw
Double Sided Copper Plated PCB
PWM MOSFET Power Supply
Digital Sound Optimization Circuitry
High Damping Control Circuit
Variable Subsonic Filter
High Current Voltage Ripple Rejection Circuitry
Balanced RCA Inputs
Auto Turn On/Off
Remote Soft Delay Turn On/Off Circuit
40 Click Variable Detente High/Low Pass Electronic Crossover
Switchable 0/12/18 dB Bass Boost @ 45 Hz
Variable Gain Control
Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output
Specifications -
Inputs: RCA (speaker level compatible)
Subwoofer Frequency Range: 10 Hz - 250 Hz
Switchable Subwoofer EQ: 0 / +12 / +18dB @ 45 Hz
4-ohm Mono Power: 800 watts x 2
4-ohm Power: 200 watts x 4
2-ohm Power: 400 watts x 4
Subwoofer EQ Frequency: 45 Hz
Low-Pass Crossover Freq: 25 Hz - 250 Hz
High-Pass Crossover Freq: 50 Hz - 350 Hz
Peak Power: 1600 watts
Crossover Slope: 12 dB
Dimensions (in Inches): 9.2" x 7.1" x 2.0"
Input Sensitivity: 0.25 V - 10.0 V
S/N Ratio: >90 dB
Total Harmonic Distortion: 0.04% at Rated Power
Output Power (14.4 V) @ 4 ohm: 200 watts x 4
Output Power (14
