Description
- rca switch,1 set of audio & video input can be converted up to 4 sets of audio & video output.
- video switch box Come with a United States standard plug adapter. Adapter output standard: 9V 500MA
- multi rca switch box Applicable for multi screen monitoring in audio storeshopping mallsupermarketand home.
- Product size: 5.3 * 3.2 * 1.5 in
- audio video selector ,Note: do not support remote sensei.

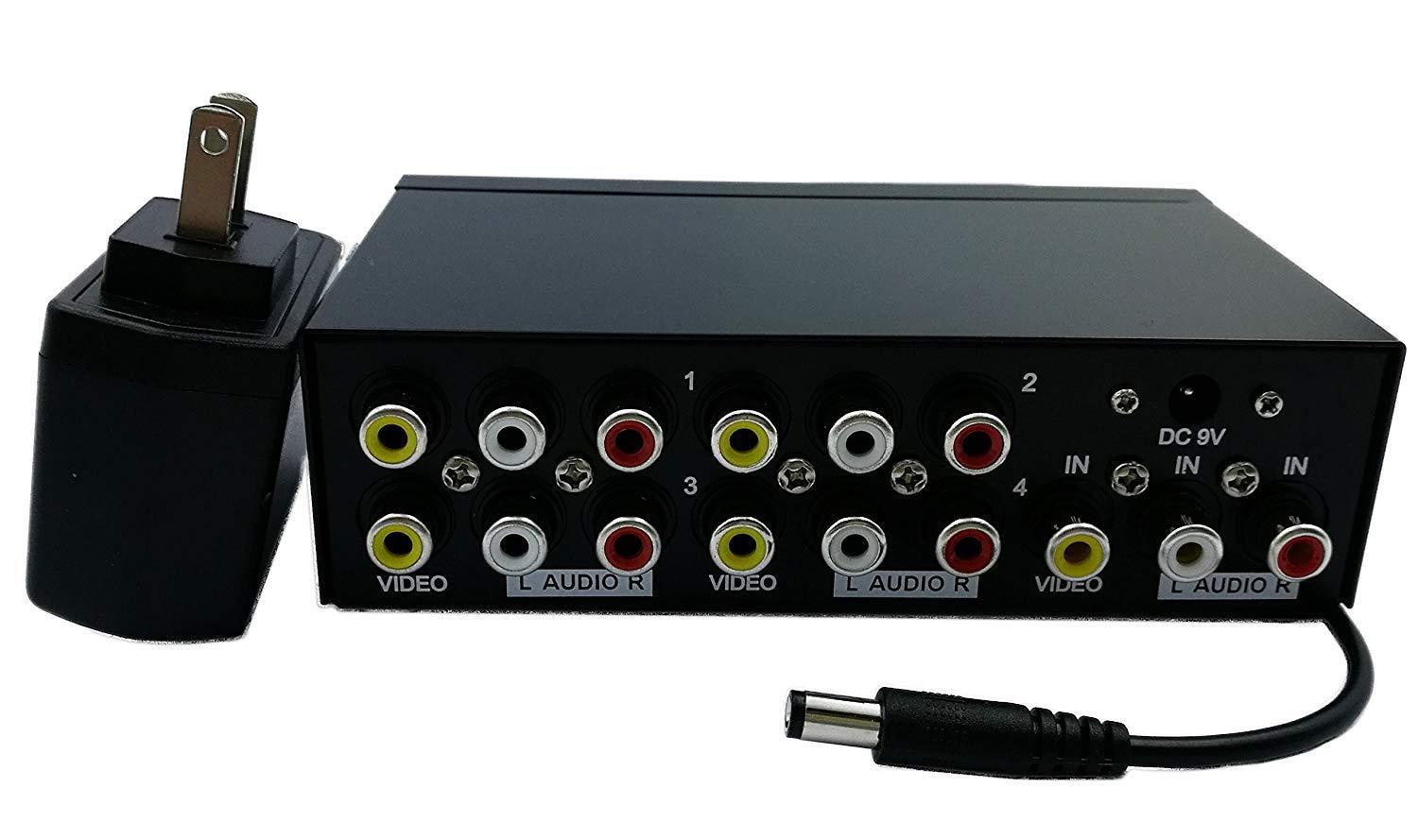

This is 4 Port Video Audio AV 3RCA Switch Splitter Box for HDTV DVD. It enables 4 AV output devices to share 1 AV input. So it can be used in your home, office, restaurant, shopping plaza, hotel, factory, etc, to show the one AV input on 4 different AV output devices like TV or other devices with standard AV (yellow-red-white) connector. Technical Specifications:
Video Input Level Resistance :VS0.8-1.0V p-p/75;
Video Output Level Resistance :VS0.8-1.0V p-p/75
Video Support :50Hz-5.5MHz;
Input Connector:1;
Output Connector:4;
Audio Input Level Resistance :2V(RMS)/47K;
Audio Output Level Resistance :2V(RMS)/1K;
Audio Support :10Hz-20KHz,0db;
Input Connector:1(L+R);
Output Connector:4(L+R);
Note: When using this product, you need to use a signal line with better shielding quality, or you will receive a noise!
