Description
- 2X2 MIMO 410 3800 MHz, 6.2dBi high performance omni-directional antenna // Operational in the 2.4 2.5 GHz Wi-Fi band
- Frequency bands & Gain: 1 dBi @ 410-470 MHz, 2 dBi @ 698-960 MHz, 6.2 dBi @ 1710-2700 MHz, 2 dBi @3400-3800 MHz
- The antenna is future proof as it covers the 450 MHz frequency and 3.5 GHz CBRS band which is gaining popularity in various regions and countries
- The OMNI600 is a cellular / I o T antenna that works from 410 470 MHz | 698 960 MHz | 1710 2700 MHz | 3400 3800 MHz
- Coax Cable Type Twin HDF 195 // Coax Cable Length 16ft // Connector Type SMA (M)

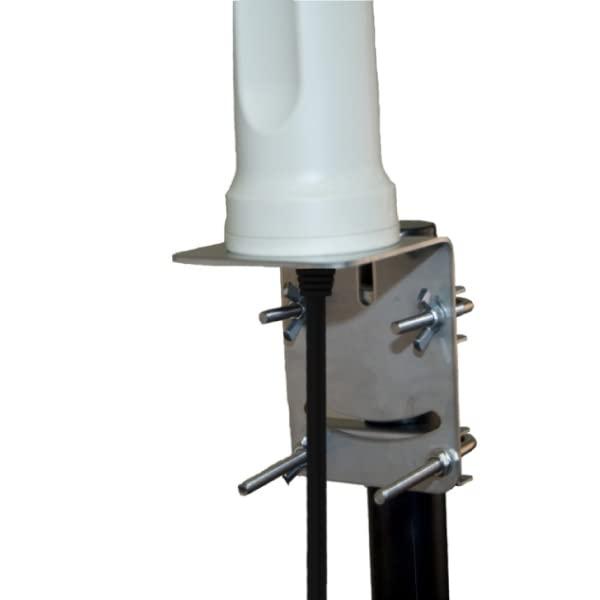

- Mounting Type: Wall/Pole mount
- Wind Survival: 160 km/h // Water ingress protection ratio/standard: IP 65 // Salt Spray: MIL-STD 810F/ASTM B117
- Enclosure Flammability Rating: UL 94-HB // Impact resistance: IK 08
- Product Safety & Environmental: Complies with CE and RoHS standards
- Product Box Contents Antenna: A-OMNI-0600-V1-02, Mounting bracket: For Pole up to 50mm diameter Wall and pole mount stainless steel bracket

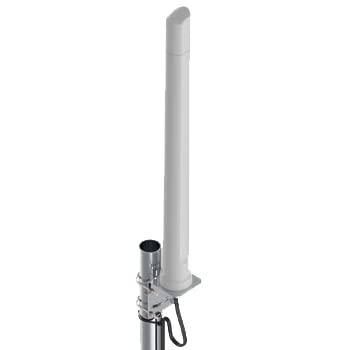

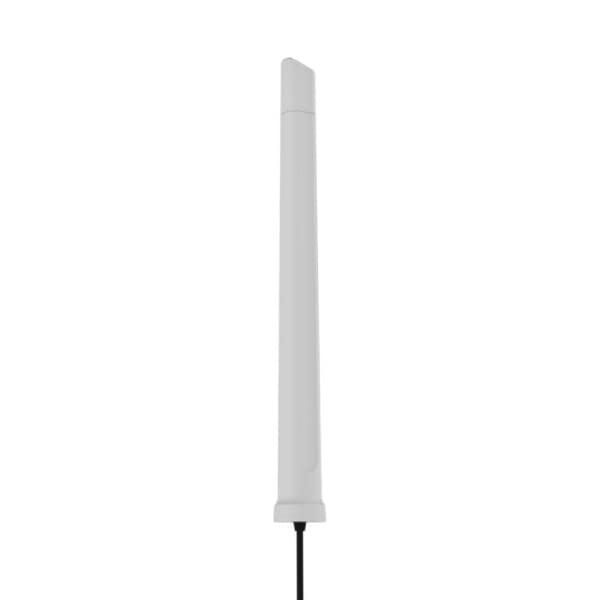

The OMNI-600 is a unique new design with improved 2x2 MIMO electrical performance. The ultra-wide band covers all contemporary operating frequencies with excellent balanced gain across all frequencies. Higher frequencies are not compromised, and the antenna design allows Poynting to have superior pattern control over the entire frequency range, making the OMNI-600 a true high performance omni-directional antenna. The OMNI-600 guarantees signal reception almost everywhere, making it usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future proof as it covers the 450 MHz frequency and 3.5 GHz CBRS band which is gaining popularity in various regions and countries. Product Box Contents Antenna: A-OMNI-0600-V1-02, Mounting bracket: For Pole up to 50mm diameter Wall and pole mount stainless steel bracket
