Description
- Used by a variety of metal and vinyl framed sliding patio door manufacturers
- 1/4-20 Threaded mounting hole on the back end and an optional use #10-32 threaded hole on the top of the housing
- 1-1/4 inch tandem concave ball bearing rollers
- Stamped steel housing and rollers
- Plain back
- Rear adjusting screw
- A Phillips head screwdriver is required for installation

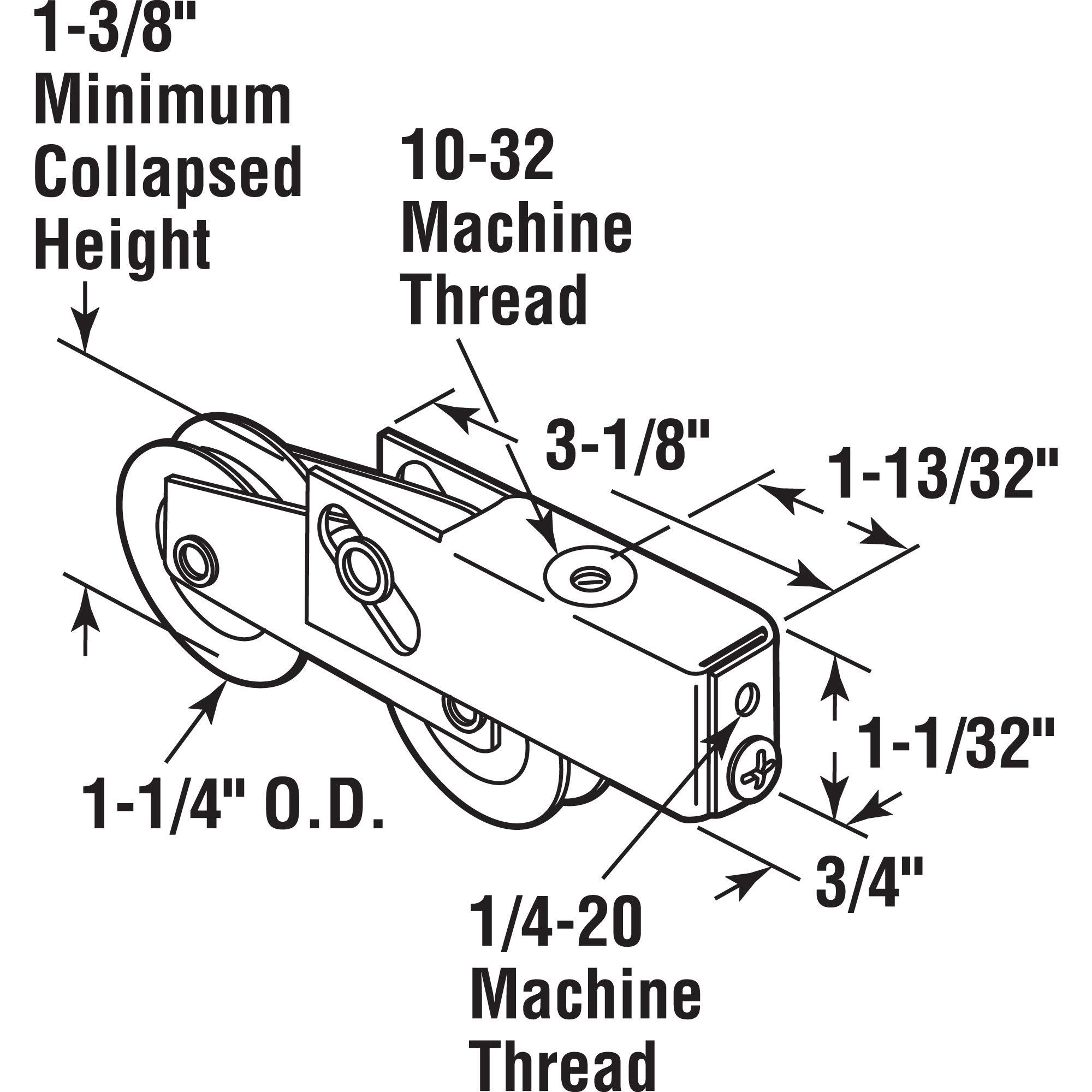

- Please refer to the line art drawing for dimensions and compare with your needs before ordering
Product Description

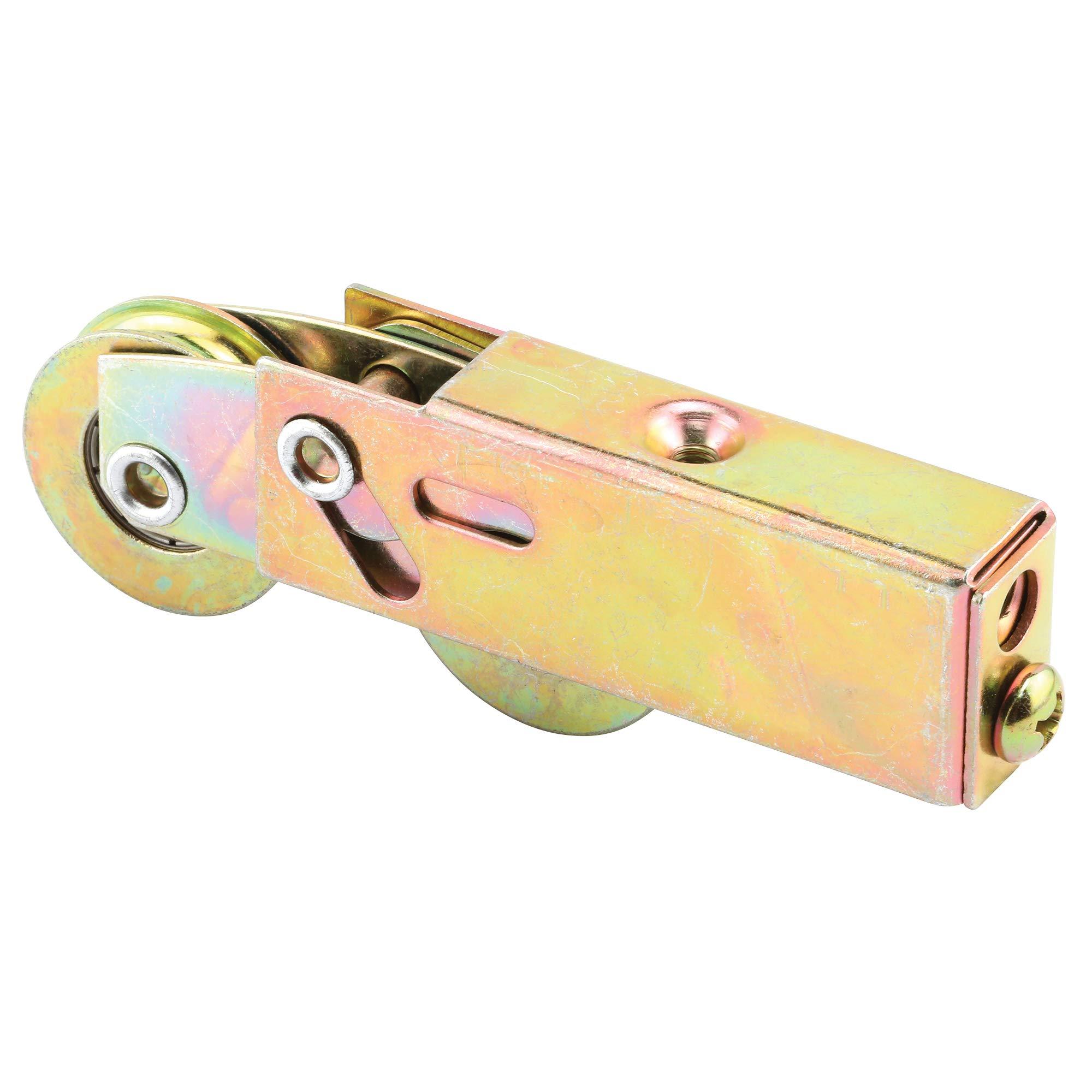

This is a plain back tandem roller assembly used by a variety of sliding patio door manufacturers of metal or vinyl framed patio doors. It has an in-line tandem inner housing with 1-1/4 inch concave steel ball bearing rollers set in a stamped steel outer housing with rear adjustment. The housing is a plain back style that is 1-1/32 inch tall and 3/4 inch wide with a 1/4-20 threaded mounting hole on the back end and an optional use #10-32 threaded hole on the top.
From the Manufacturer
This sliding door tandem roller assembly is constructed from steel. It features a ball bearing roller and comes attached to an adjustable steel housing. This style roller is used by several patio door manufacturers.
