Description

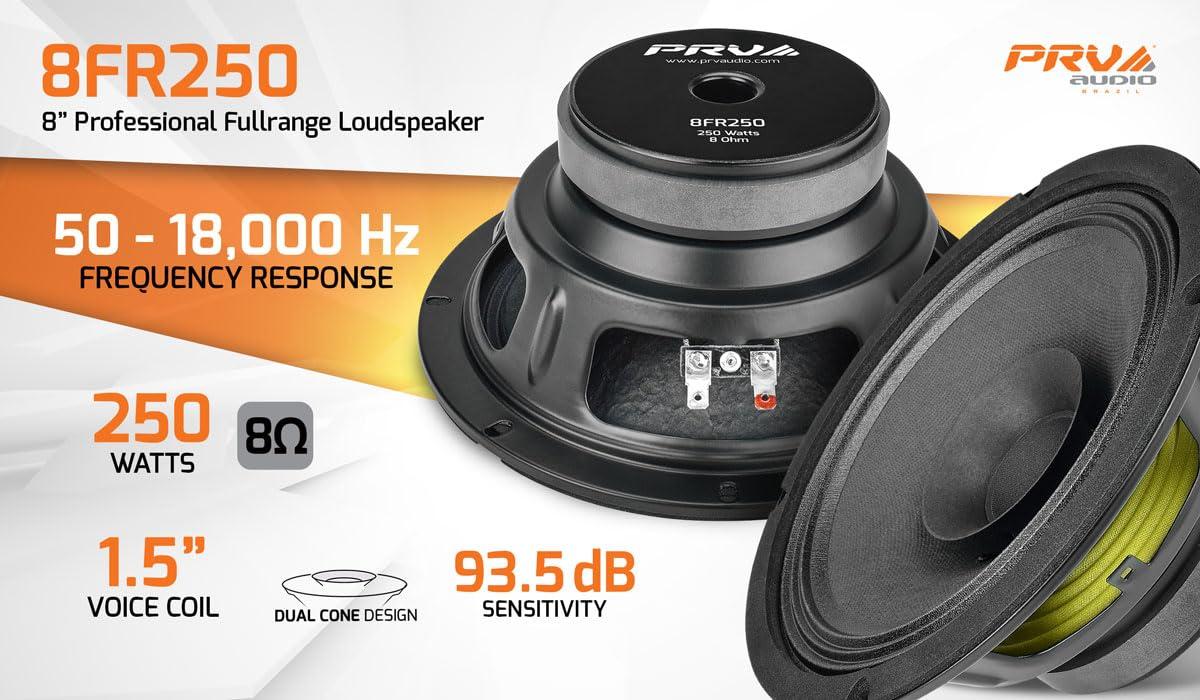

- HANDLES IT ALL: The 8FR250 full-range driver is an excellent choice when space is at an absolute minimum, eliminating the need for a tweeter
- DESIGNED FOR EFFICIENCY: This loudspeaker has a dual cone design, the primary cone handles low to midrange frequencies while the smaller secondary cone increases high-frequency response from 50 Hz to 18,000 Hz.
- SOLID STRUCTURE: The combination of a low-distortion motor system with a copper ring and a unique woven-cloth dust cap provides exceptional clarity, detail, and dynamics at an impressive 93.5 dB of sensitivity.
- POWER YOU CAN RELY ON: This driver has an impressive 250 Watts of program power and 125 Watts of RMS power at 8 Ohms, enough to handle a full range of audio.
- UPGRADE TODAY. HEAR THE DIFFERENCE: The PRV Audio FR Series sets a new standard of value in high-performance Full Range drivers.
The PRV Audio FR Series sets a new standard of value in high-performance Full Range drivers. The 8FR250 full-range driver is an excellent choice when space is at an absolute minimum, eliminating the need for a tweeter.
This loudspeaker has a dual cone design, the primary cone handles low to midrange frequencies while the smaller secondary cone increases high-frequency response from 50 Hz to 18,000 Hz.
The combination of a low-distortion motor system with a copper ring and a unique woven-cloth dust cap provides exceptional clarity, detail, and dynamics at an impressive 93.5 dB of sensitivity.
Nominal Diameter: 8 (203 mm)
Nominal impedance: 8 Ohms
Rated AES Power Handling (RMS): 125 Watts
Program Power: 250 Watts

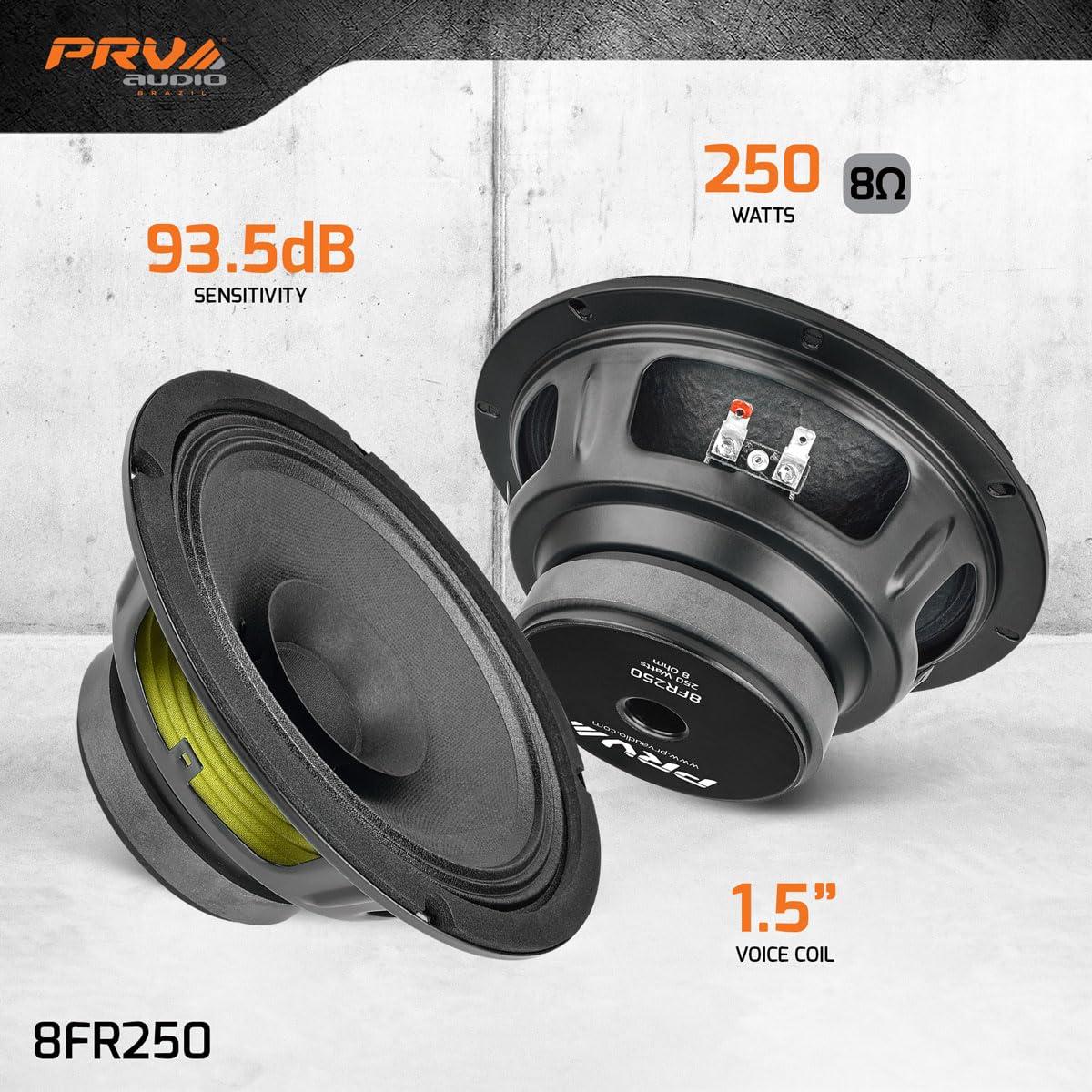

Sensitivity 2.83V at 1m: 93.5 dB
Recommended Hi Pass Crossover*: 75 Hz**
*For Full Power Handling **12db Per Octave Crossover
Frequency Response at -10dB: 50 18,000 Hz
Voice Coil Diameter: 1.5 (38 mm)
Voice Coil Wire: CCAW
Voice Coil Winding Depth: 10.0 mm
Former Material: Kapton
Magnetic Gap Depth: 6.0 mm
Frame Material: Stamped Steel

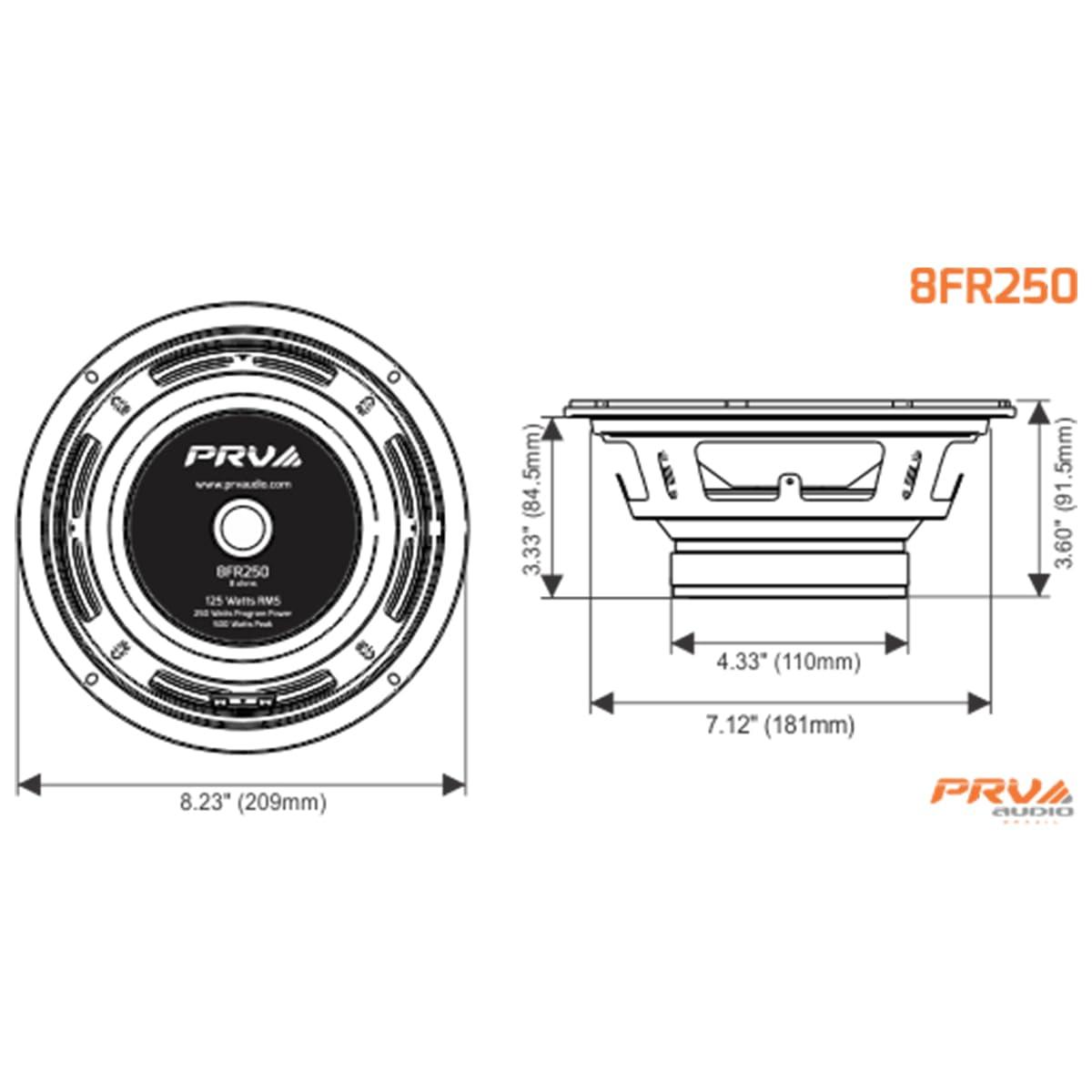

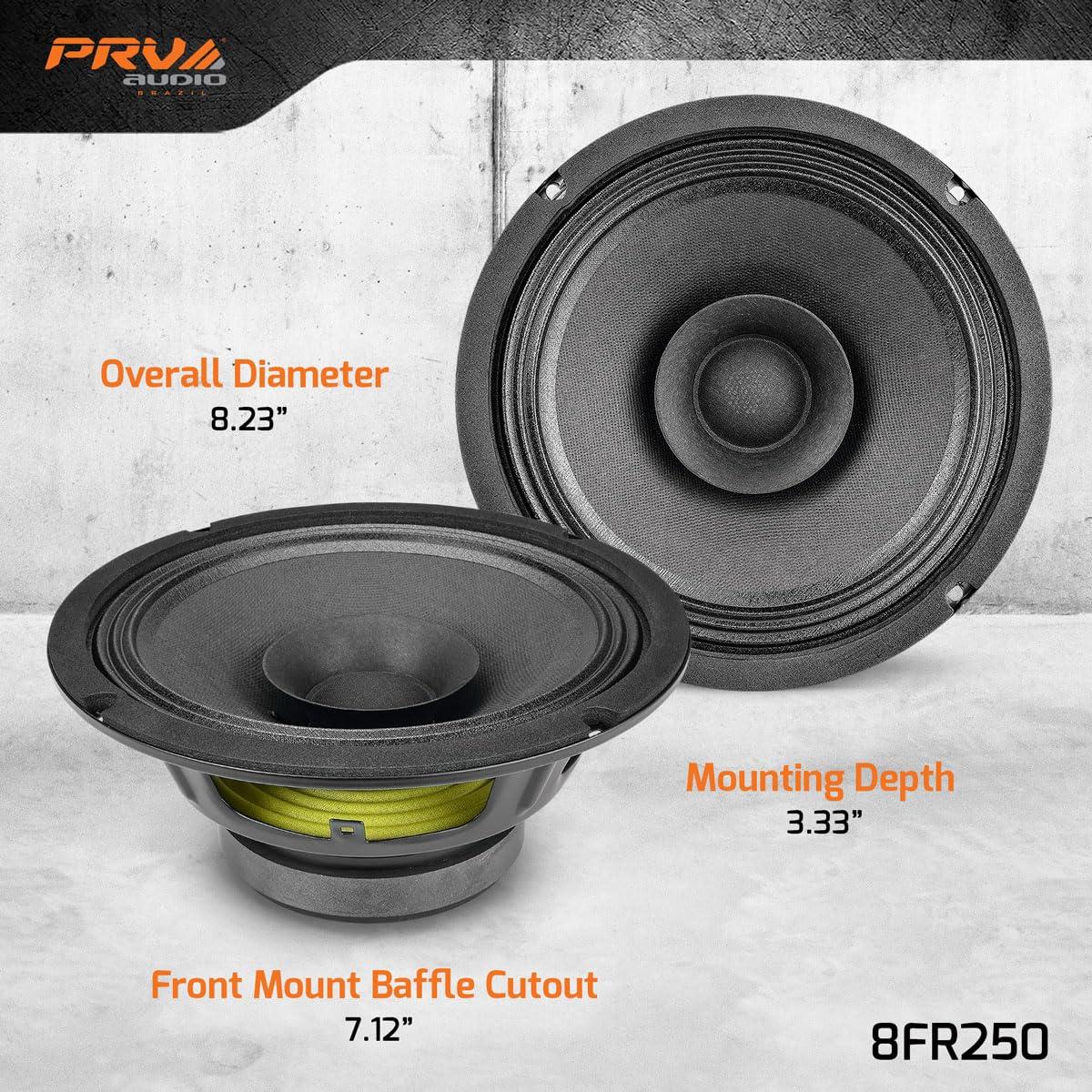

Overall Diameter: 8.23 (209 mm)
Front Mount Baffle Cutout: 7.12 (181 mm)
Mounting Depth: 3.33 (84.5 mm)
Overall Depth: 3.60 (91.5 mm)
