Description
- IDEAL HELPER: This controller keyboard is good addition to your cctv security system. All the input and output communication interfaces are easy to match with your equipment!
- VARIOUS USAGE PLACES: The pan tilt camera controller can be widely used in various important places, such as public security, surveillance, government and telecommunications departments, procuratorates, courts, banks, education, taxation, etc.
- STANDARD NETWORK MONITORING PROTOCOL: PTZ camera controller supports standard network monitoring protocol. Good compatibility, strong scalability, simple operation, and control of network dome cameras can be achieved in just a few steps.
- COMPATIBILITY: The PTZ camera controller is based on for Linux and is compatible with most dome security and monitoring IP cameras. the controller can be paired with some limited cameras, set preset mode and AB scanning.
- EASY TO OPERATE: This controller with a joystick and a LCD display is easy to operate, ensuring an accurate and stable
1. STANDARD NETWORK MONITORING PROTOCOL: PTZ camera controller supports standard network monitoring protocol. Good compatibility, strong scalability, simple operation, and perfect control of network dome cameras can be achieved in just a few steps.
2. COMPATIBILITY: The PTZ camera controller is based on for Linux and is compatible with most dome security and monitoring IP cameras. the controller can be paired with some limited cameras, set preset patrol mode and AB scanning.
3. VARIOUS USAGE PLACES: The pan tilt camera controller can be widely used in various important places, such as public security, surveillance, government and telecommunications departments, procuratorates, courts, banks, education, taxation, etc.
4. EASY TO OPERATE: This controller with a joystick and a LCD display is easy to operate, ensuring an accurate and stable operation.
5. IDEAL HELPER: This controller keyboard is good addition to your cctv security system. All the input and output communication interfaces are easy to match with your equipment!
Specification:
Item Type: PTZ Camera Joystick Controller
Material: ABS
Input Voltage: DC12V 500mA
Power Consumption: Less than 5W
Communication Interface: RS485 bus
Communication Distance: Approx. 1500m / 4921.3ft (0.5mm twisted pair)
Communication Protocols: For PELCO D, for PELCO P, for SAMSUNG, for AD
Baud: 1200, 2400, 4800, 9600, 19200
Communication Parameters: 8 data bits, 1 stop bit, no verification

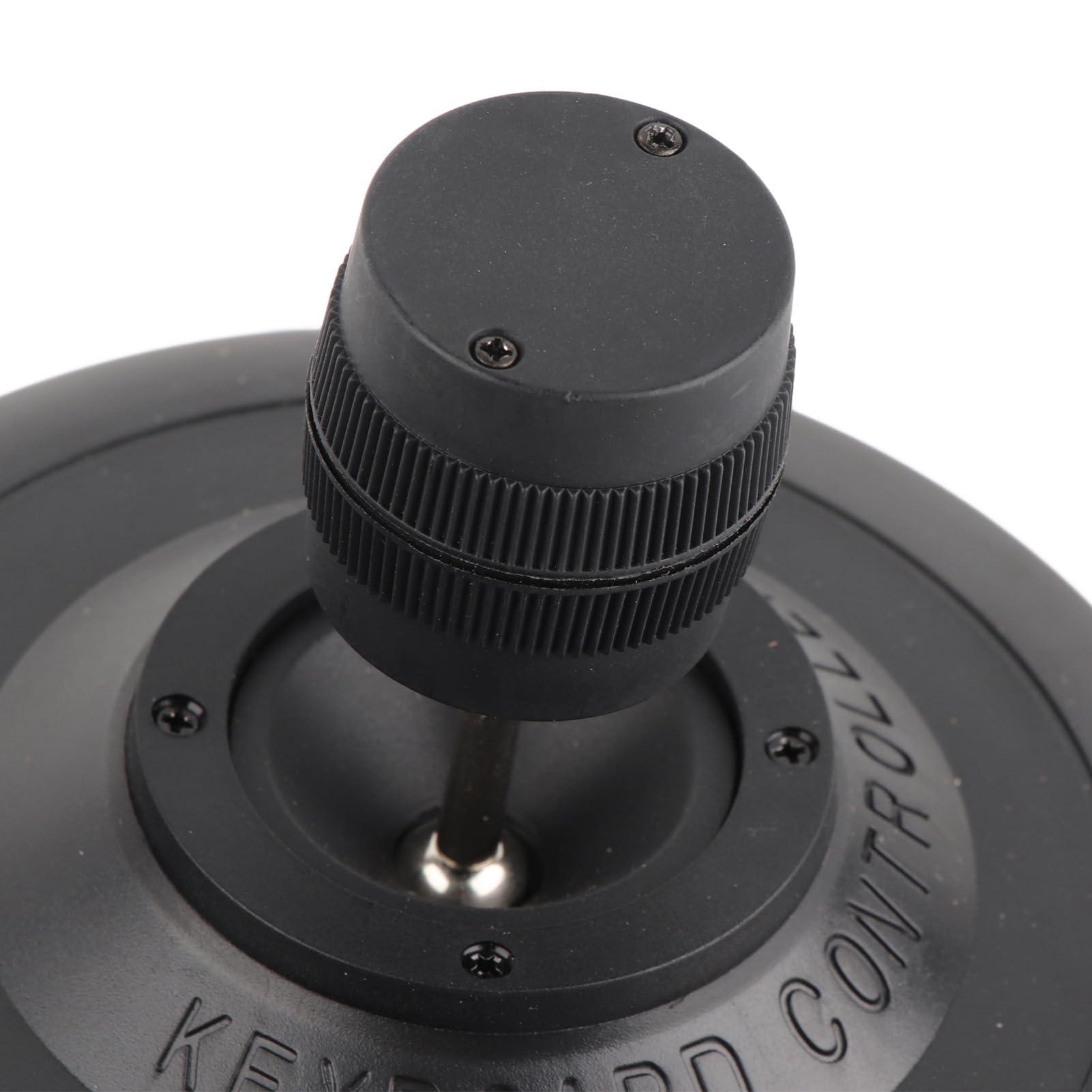

Joystick: 3D (the joystick controls the ball machine up, down, left, right, and can be zoomed by twisting the joystick)
Display: LCD
Voltage: 100-240V
How to Use:
Follow the instructions.
PackageList:

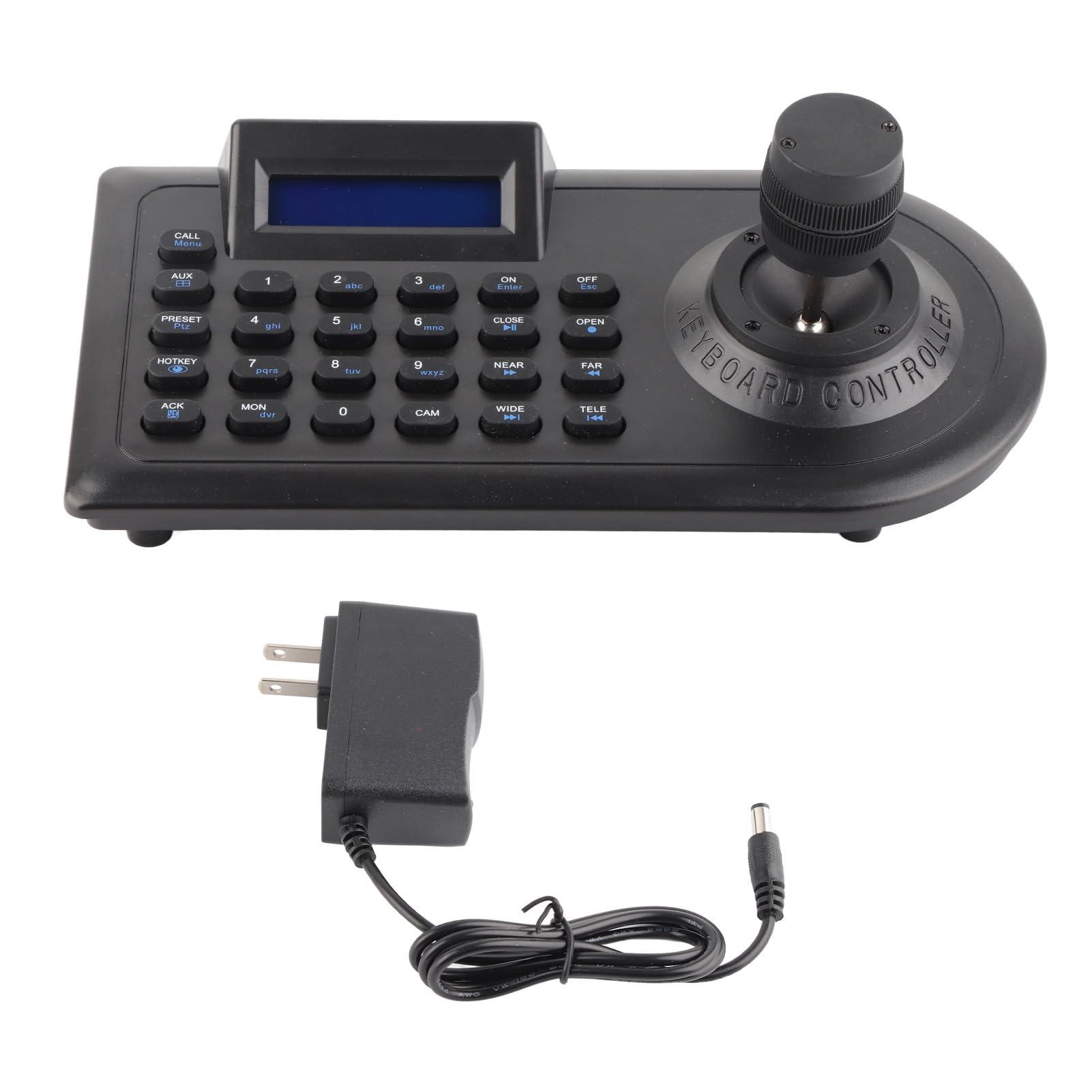

1 x Keyboard
1 x Power Plug
1 x Manual
