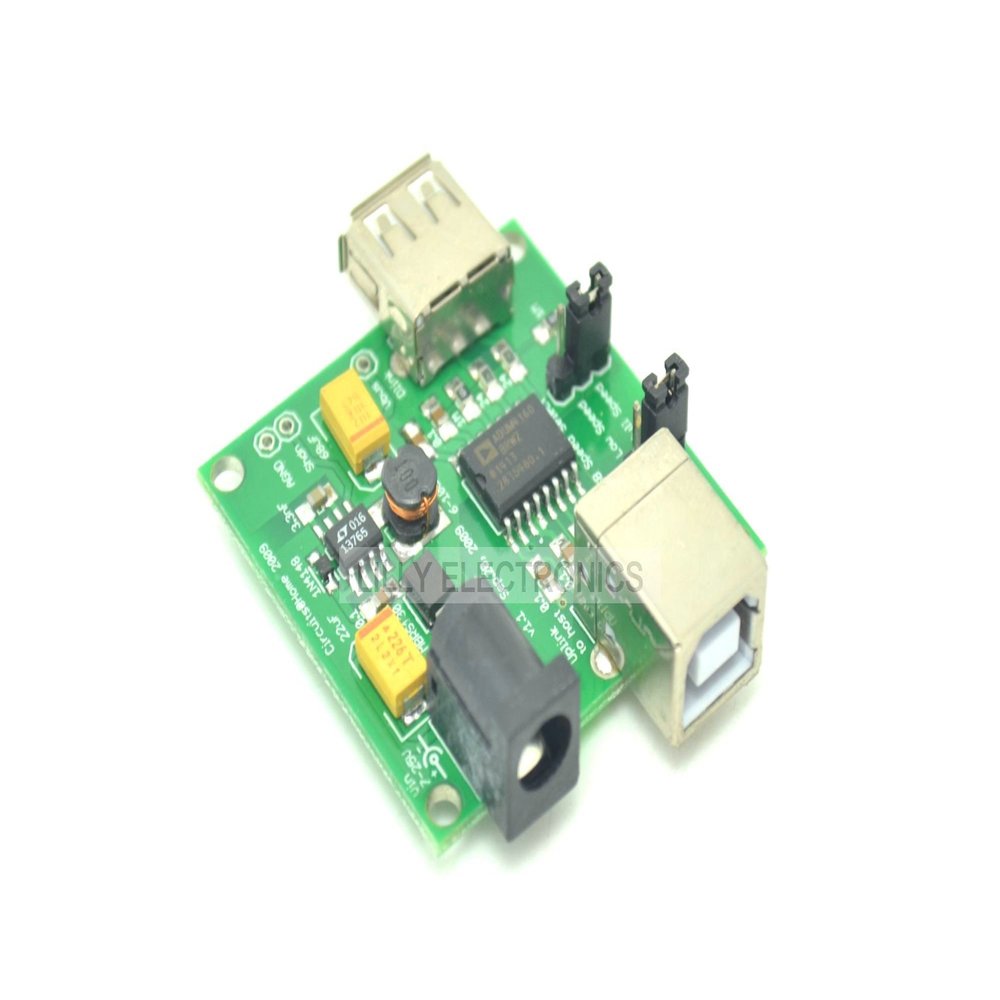

Q-BAIHE ADUM4160 USB Isolator Board/USB Port Isolator Protection

Description

• ADuM4160 is a USB port isolation using ADI's iCoupler technology
• It can be used on either end of the 3.0 V to 5.5 V supply voltage
• Isolation chip supports USB speed Low Speed and Full Speed, can not be used as USB2.0 high-speed use

Feature:
ADuM4160 is a USB port isolation using ADI's iCoupler technology, it will combine high-speed CMOS and monolithic air core transformer technology, can provide excellent performance, and is easy to integrate with low-speed and full-speed USB-compatible peripherals .
ADuM4160 will be based on the iCoupler technology with the internal logic of the edge detector used in combination, can achieve transparent, easy to configure, in the face of the upstream port isolation.
The isolated upstream port has a simple circuit, power management, and robust operation several advantages.
Propagation delay of this isolator with standard hub and cable propagation delay considerable.
It can be used on either end of the 3.0 V to 5.5 V supply voltage, and internally the voltage regulator to the signal level, which is directly connected to the VBUS.
ADuM4160 isolated control the pull-up resistor, so that the peripheral to control connection timing. The current consumption of the device is in an idle state is very low, so there is no need to suspend state.

Application:
USB peripherals isolated.
Isolated USB hub
Repeater

Special note:
Isolation chip supports USB speed Low Speed and Full Speed, can not be used as USB2.0 high-speed use, so please note that buyers use requirements.
Equipment has been tested:
U disk, digital cameras and other high-capacity storage devices;
STM32, ARM debug;
AVR debugging USBasp;
PIC debugging with ICD2;
The Infineon debug with miniwiggler;
Ti DSP debugging using XDS100.

Package:
1 x ADUM4160 USB Isolator Board
