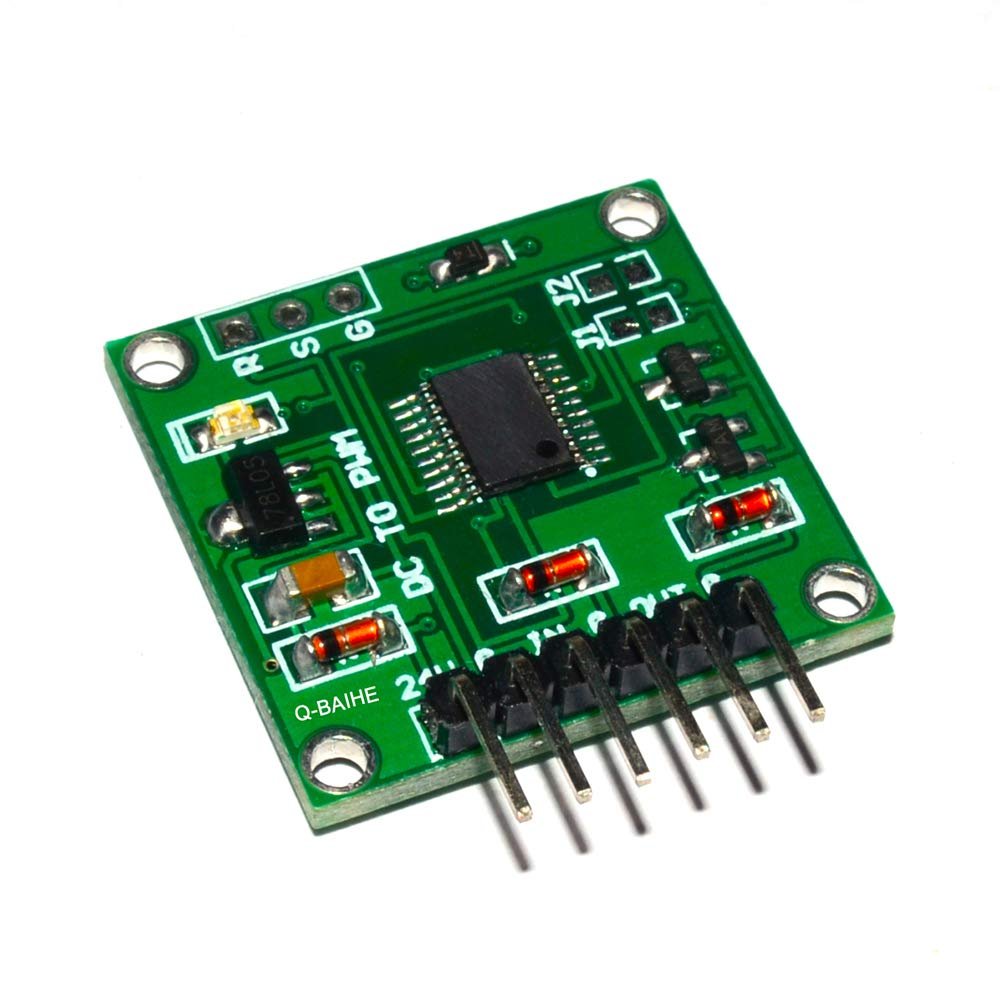

Q-BAIHE Voltage to PWM 0-5v 0-10v to PWM Duty Cycle Linear Conversion Transmitter Module

Description

• Supply voltage: 9V to 24V
• Input voltage range: 0.00V to 5.00V / 0.00V to 10.00V
• Signal output frequency range: 1KHz / 8KHz
• Signal output duty cycle range: 0~100%
• Size:26mm x 23mm x 10mm

Specifications:
1. Supply voltage: 9V to 24V
2. Input voltage range: 0.00V to 5.00V / 0.00V to 10.00V
3. Signal output frequency range: 1KHz / 8KHz
4. Signal output duty cycle range: 0~100%
5. Input method: J1 pad on the circuit board: open circuit (0 ~5V); short connection (0~10V) is open circuit by default.
6. Output mode: S1 pad on the circuit board: open circuit (1KHz); short circuit (8KHz), the default is open circuit.
7. Driving mode: open collector NPN drive, maximum current 200MA, external voltage range 1~30V.
8. Application: remote data acquisition and control equipment;
9. Size:26mm x 23mm x 10mm

10. Module interface:
24V: positive power connector (9V to 24V).
G: Power ground interface.
IN: Signal input positive connector.
G: Signal input negative connector.
OUT: Signal output interface (1KHz / 8KHz).
G: Power ground interface.

Input voltage selection: J1 pad
Open circuit: Input (0.00V~5.00V) output pulse signal with corresponding duty ratio of 0 to 100%.
Short circuit: input (0.00V~10.00V) output pulse signal with corresponding duty ratio of 0~100%.
Output frequency selection: S1 pad
Open circuit: Output 1KHz pulse signal.
Short circuit: output 8KHz pulse signal.

Package: 1 * Voltage to PWM Module
