Description
- QSC AcousticDesign AD-S10T 10 " 2-Way Surface Mount Loudspeaker - X-Mount Mounting System - Euroblock Connector - Input Panel Cover - QSC 3 Year Limited Warranty
- Effective frequency range: 50 Hz - 19 kHz
- Rated noise power / voltage: 250 watts / 45 volts (rms)
- Broad-band sensitivity: 92 dB SPL
- Coverage angle (-6 dB): 90deg.

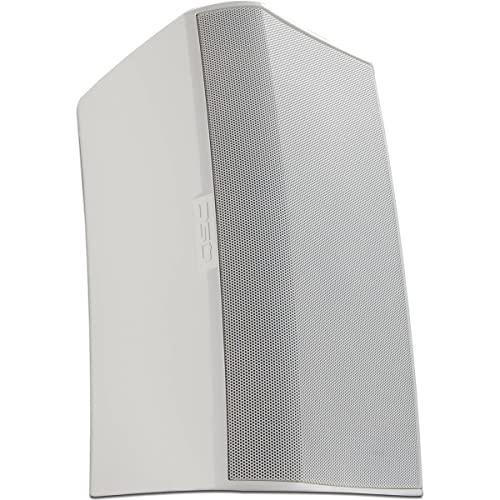

The QSC AcousticDesign AD-S10T 10" 2-Way Surface Mount White Loudspeaker is ideally suited for a wide variety of foreground and background sound reinforcement applications. The AD-S10T features a high quality 10" weather treated paper cone woofer on a 2.5" voice coil. A carefully selected 1" exit, 1.4" compression driver perfectly matches the sensitivity and performance of the woofer for outstanding full-range reproduction. Consistent and even 90deg. axisymmetric (conical) coverage is achieved through DMT (Directivity Matched Transition), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response. The even, accurate frequency response of the AD-S10T is aided by a 100-watt low-loss, low-saturation transformer with selectable taps, including an 8 Ohms bypass. To preserve weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet. With rugged ABS enclosures, sealed input panel covers and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance. Installers will appreciate the award-winning X-Mount system included with each full- range AcousticDesign model. This ingenious mounting solution achieves unprecedented ease-of-installation in horizontal, v
