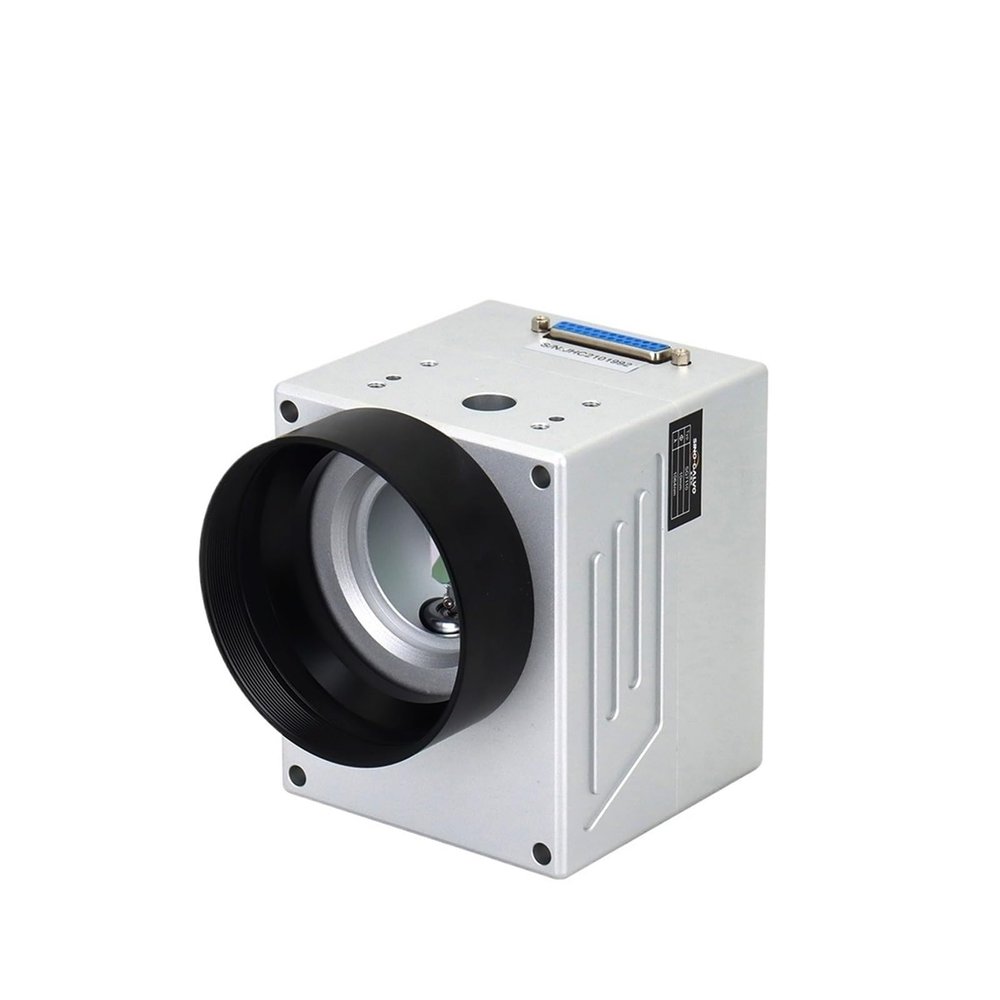

QXCIVR 1064nm Fiber Lasering Scanning Head RC7110 SG7110 with Red Pointer 0-100W Input Aperture 10mm for Metal Marking Machine(SG7110With Red Light)

Description

• 1.Good degree of Linearityhigh resolution small drift, precise repetitive .
• 2.High speed scanning, stable performance, small zero drift,strong anti-interference.
• 3.Extensive application: Lasering deflection and two-dimensional localization,etc.
• 4.Red light focus, more efficient marking focal length

Model Number : SG7110/RC7110
Head Power : 0-100W
Name : Fiber Lasering Scanning Head
Setting Time : 0.5ms
Interface Signals : XY2-100
Input Voltage : 15VDC
Packing List : Head+ Switch Power Supply+ DB25 Cable
Frequency : 800ms
Marking Speed : 8000mm/s
Application : Q-pluse / MOPA Lasering machine
Working Temperature : 0-45
Linearity : 99.90%
Scale Drift : 40PPM/
<;15Rad./
RMS Current : 2.0A
Peak Current : 15A(MAX)
Input Aperture : 10.0mm
Beam Displacement : 13.4mm
Maximum Scan Angle : 15
