RANGEFUL PL259 to SMA Extension Cable 20m Waterproof PL to SMA Male Jumper Low Loss HF-240 Coax Cable (LMR 240 Equivalent)

$ 69.77
Pseudo Checkbox Icon
Order within 0 hours and 0 minutes to get between -
Buying Bulk?
Delivery Truck IconTracked Shipping on All Orders Secure Payments
Headphones Icon 24/7 Customer SupportReturn Product Arrow Icon14-Day Returns
Description
  • Indoor/Outdoor use PL 259 to SMA extension cable 20m UV-resistant, Waterproof and Frostproof with black PVC jacket.
  • Solid Copper Conductor Copper conductor and tinned copper braid shield provide best-in-class data transmission with minimal attenuation.
  • Waterproof Waterproof extension lead with PL 259 clamp type connector mounted. The plugs are soldered with silver added solder to ensure optimum contact and a long service life.
  • Assembled in EU The connectors are soldered with silver-added solder for best contact and long life. Each cable is tested before shipment.


SMA Male to PL259 UHF Low Loss Indoor/Outdoor HF240 Semi-flexible Coaxial Cable
Double Shielded with Black PVC Jacket
Length: 20 meters (65.6 ft) Application
Widely used with CB radio, HAM radio Antennas, Walkie Talkie, FM radio, Amateur radio, FRS GMRS MURS radio, Public radio scanner, various RF devices, SWR meters and Testing equipment. etc. Features
Indoor/Outdoor use. UV-protected and Waterproof black PVC Jacket.
Solid Copper Conductor and Tinned Copper Braided Shield best-in-class data transmission with minimal attenuation.
Double-wall shrink tubing with adhesive layer for better protection of connectors from external environment.
Assembled in EU, fully tested and packed. Full compliance with European standards CE, RoHS, REACH, UL 94.
Package includes

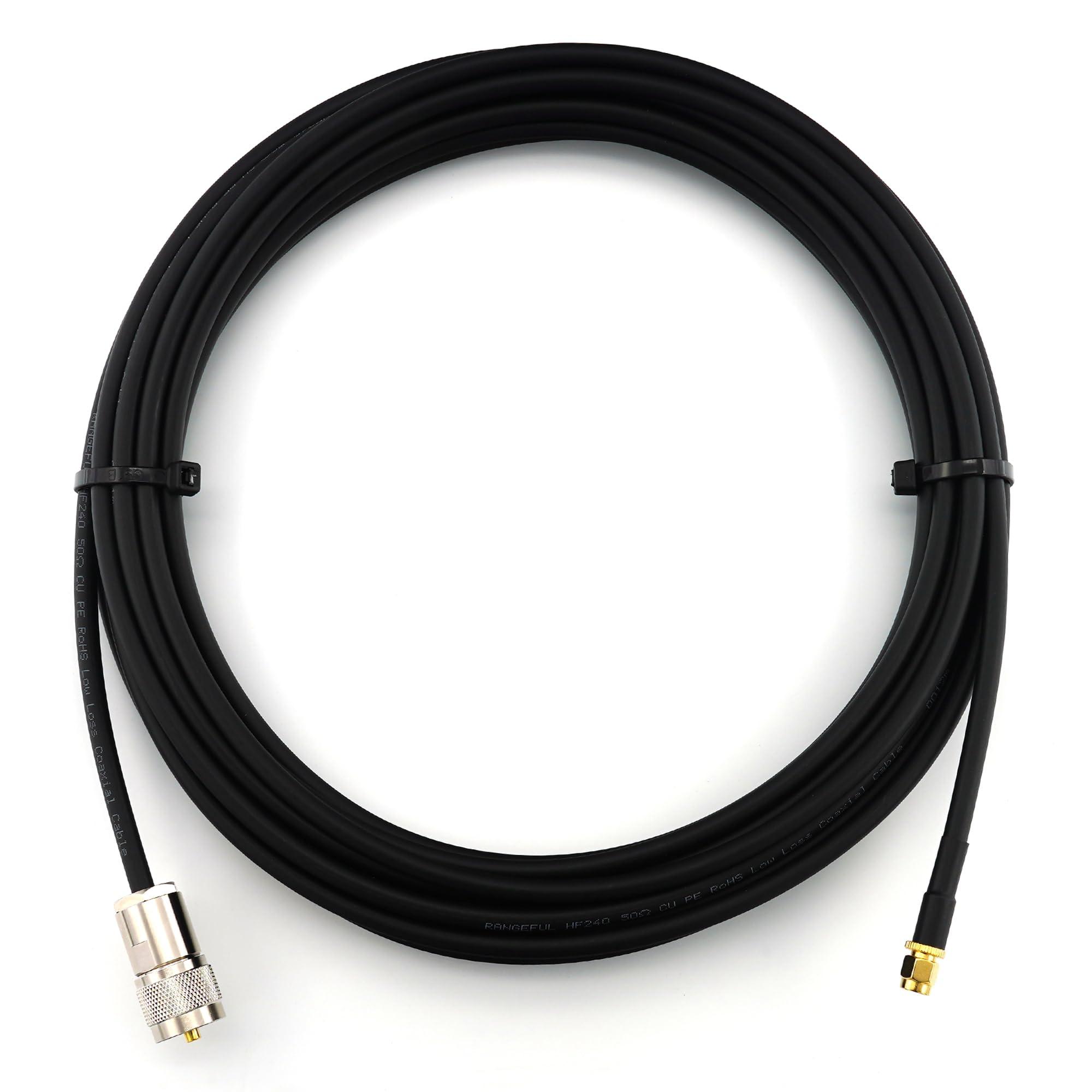

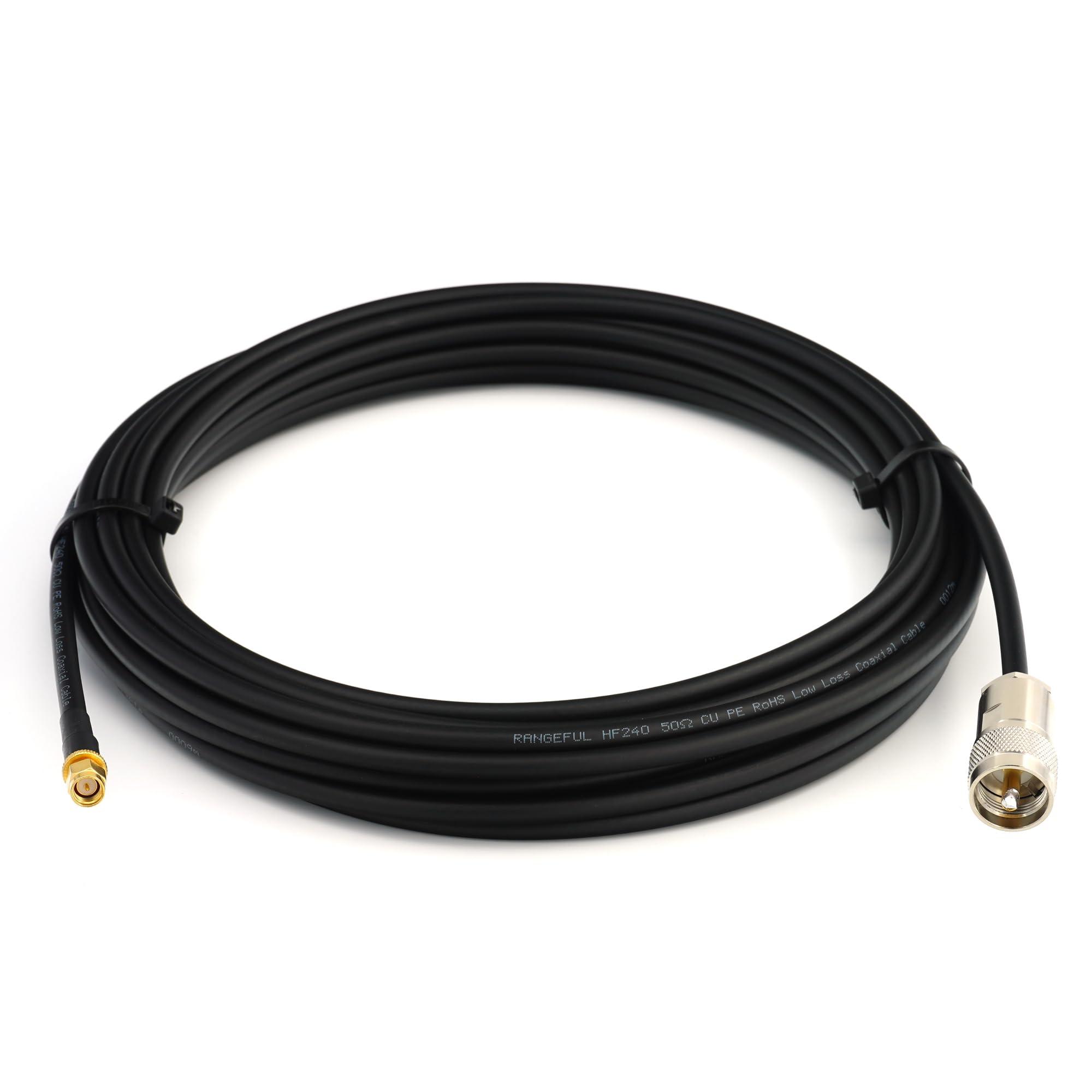

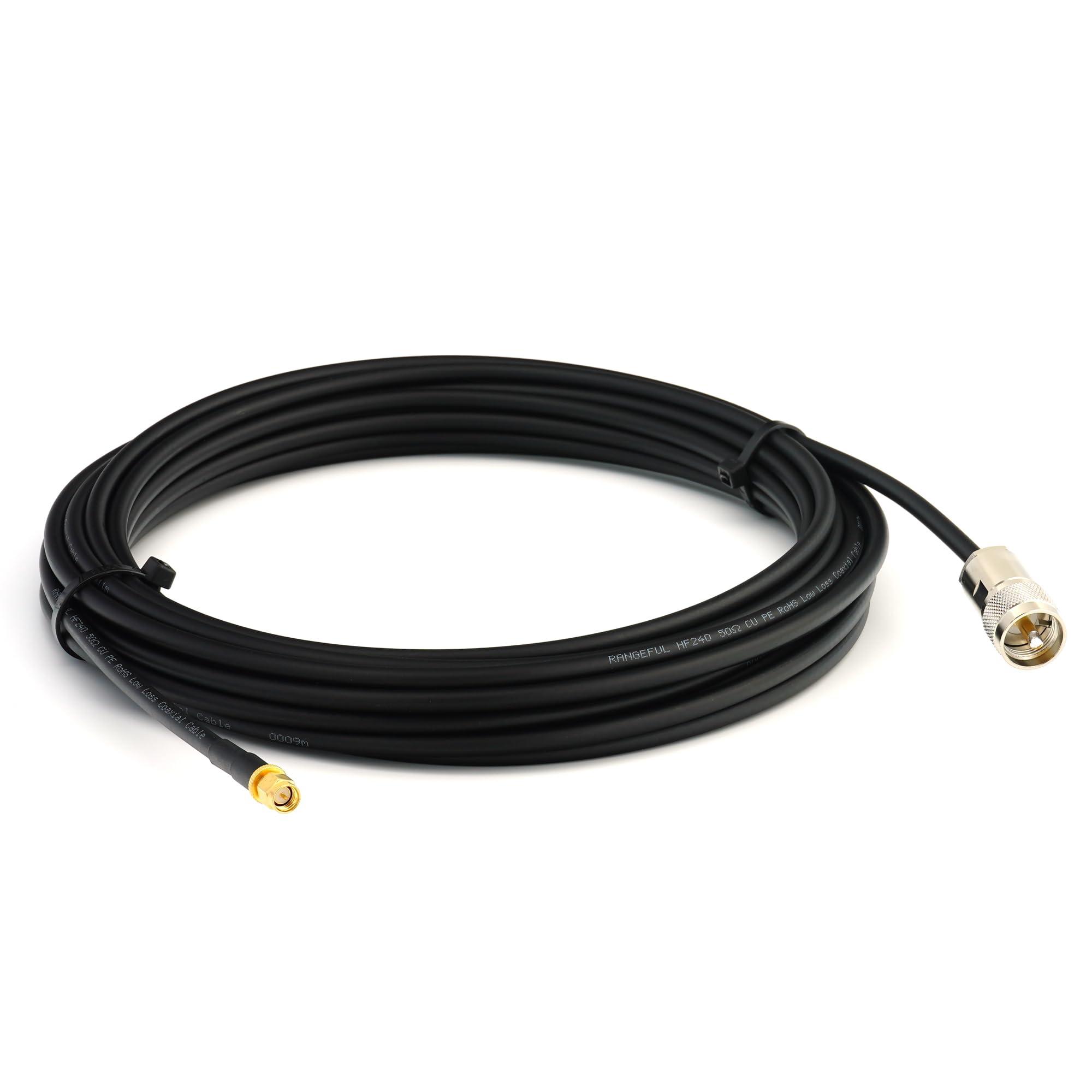

1 piece of 20m (65,6ft) SMA-Male to PL-259 Extension Cable

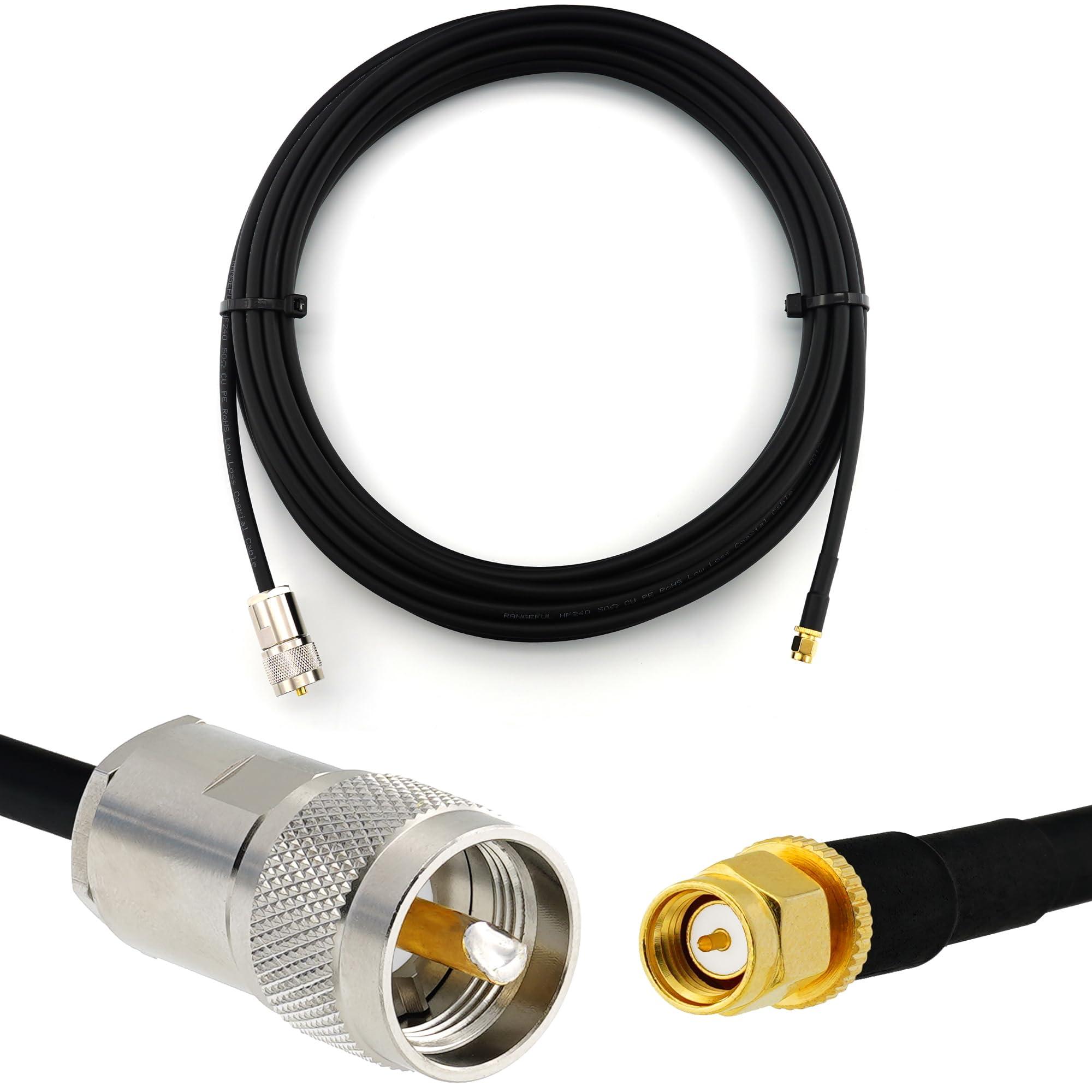

Connector 1: SMA-Male
Connector 2: PL-259

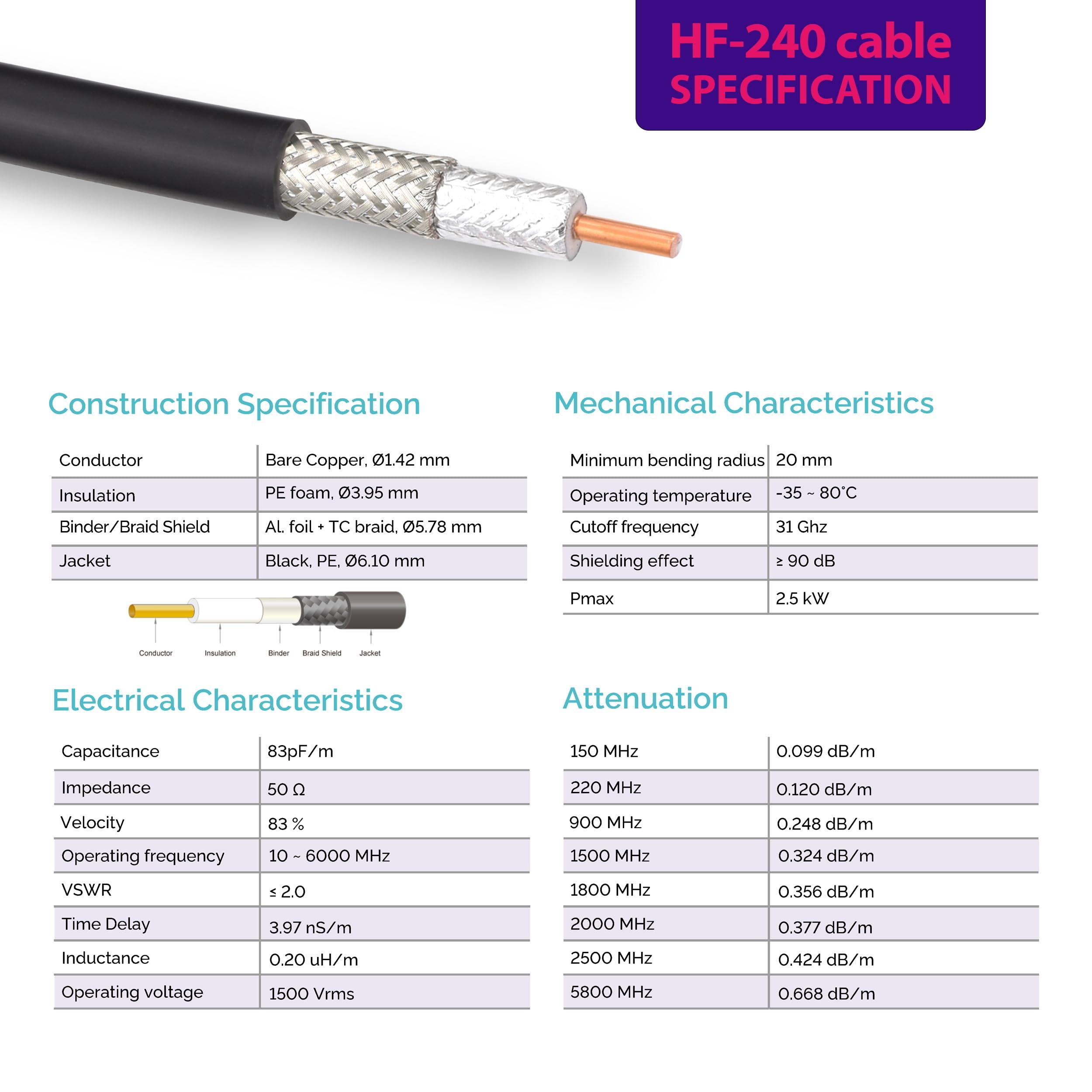

Specifications
Cable Type: HF240 Bare Copper with PVC Jacket
Center Conductor Type: Solid Copper (1 Strand)
Impedance: 50 Ohm
Frequency Range: DC - 6GHz
Cutoff Frequency: 31 Ghz
V.S.W.R: 2
Operating voltage: 1500Vrms
Input Power (Peak): 2.5 KW
Shielding Effectiveness: >90dB
Capacitance: 83 pF/m
Dielectric Type: PE
Jacket Material: PVC
No. of Shields: 2 (Aluminium foil + Tinned Copper Braid)
Operating Temperature: -35 to +80 deg C
Mechanical Specifications
Diameter: 6.10mm
Inner Conductor: 1.42mm
Dielectric: 2.90mm
Second Shield: 3.95mm
Bending Radius: 20mm

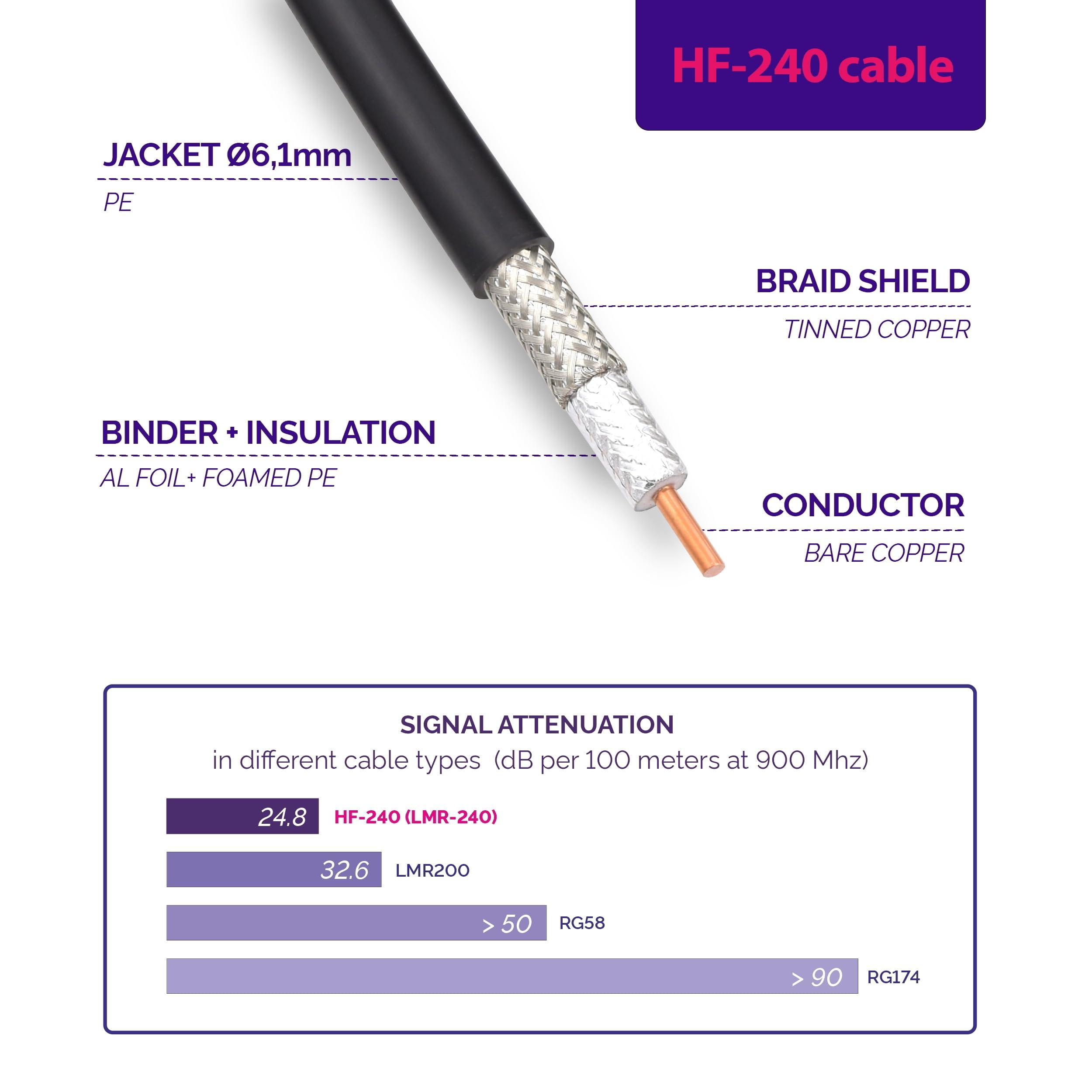

Attenuation dB/100m:
900Mhz: 24.8
1800Mhz: 35.6
2500Mhz: 42.4
5800Mhz: 66.8
