Description
- Compute Module 4 IO Board is a base board officially released by Raspberry Pi that can be used with Raspberry Pi Compute Module 4.
- Can be used as a development system for Compute Module 4 and integrated into end products as an embedded circuit board
- You can use off-the-shelf components (such as Raspberry Pi expansion board and PCIe module) to quickly create a system
- Applies to all versions of Compute Module 4
- Real-time clock, dual MIPI DSI display interface, dual MIPI CSI camera interface, USB interface, SD card slot, Gigabit Ethernet interface

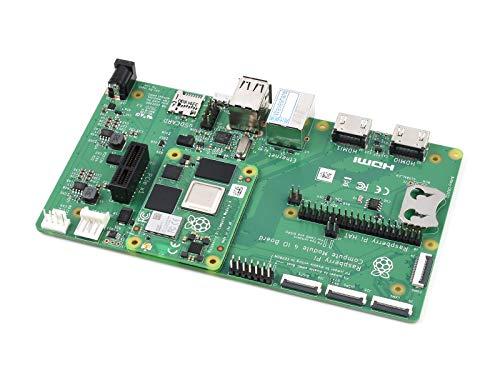

Raspberry Pi Compute Module 4 IO Board, A Development Platform and Reference Base-Board Design for CM4
Features
The Compute Module 4 IO Board is a companion board for Raspberry Pi Compute Module 4 (supplied separately). It is designed for use both as a development system for Compute Module 4 and as an embedded board integrated into end products.
The IO board is designed to allow you to create systems quickly using off-theshelf parts such as HATs and PCIe cards, which might include NVMe, SATA, networking, or USB. The major user connectors are located along one side to make enclosures simple.
Compute Module 4 IO Board also provides an excellent way to prototype systems using the Compute Module 4.
Specifications
CM4 SOCKET: suitable for all variants of Compute Module 4
CONNECTORS: Standard Raspberry Pi HAT connectors with PoE supportStandard PCIe Gen 2 x1 socketVarious jumpers to disable specific features, e.g. wireless connectivity, EEPROM writing
RTC: Real-time clock with battery socket and ability to wake Compute Module 4
VIDEO: 2 x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable)
CAMERA: 2 x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable)
USB: 2 x USB 2.0 connectorsMicro USB socket for updating Compute Module 4
ETHERNET: Gigabit Ethernet RJ45 with PoE support
STORAGE SOCKET: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
FAN: Standard fan connector
POWER INPUT: 12V / 5V
DIMENSIONS: 160 90mm
PACKAGE CONTENT
Compute Module 4 IO Board x1
