Description
- RCWL-0516 is a Doppler radar microwave motion sensor module using the RCWL-9196 IC which can be used as an alternative to a PIR motion sensor such as the HC-SR501 or HY-SRF05
- Uses microwave Doppler radar to detect human bodies and moving objects rather than infrared detection
- High sensitivity, 5-7 meter sensing distance, wide sensing angle, high reliability, wide range of operating voltages (4V - 28V)
- Widely used in human body sensing, auto-on lighting systems and anti-theft alarm systems
- Unlike traditional infrared PIR detectors, it can detect through glass, some walls and other objects
The RCWL-0516 is a Doppler radar microwave motion sensor module using the RCWL-9196 IC which can be used as an alternative to a PIR motion sensor such as the HC-SR501 or HY-SRF05. Instead of sensing changes in infrared emitted by a moving person, this sensor uses microwave Doppler radar to detect moving objects.

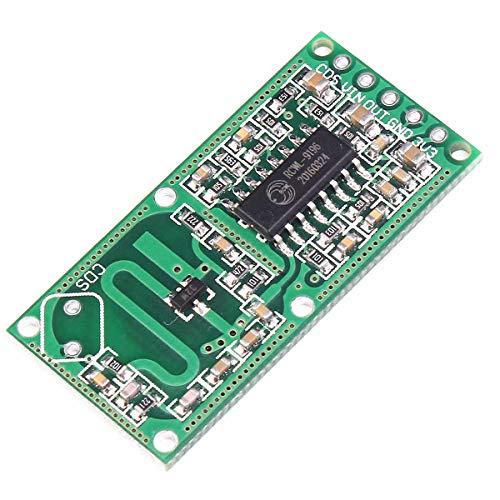

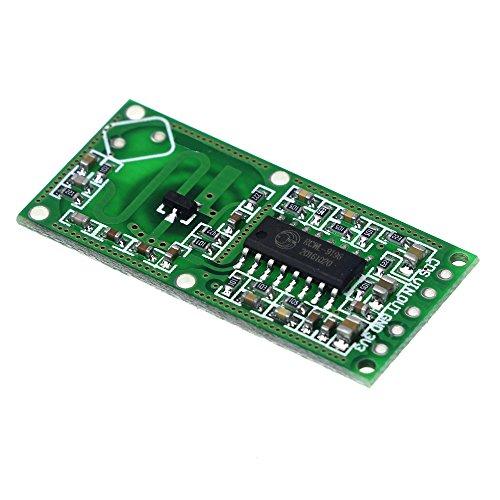

This mini radar motion sensor module is equipped with an RCWL-9196 IC based on the Doppler microwave induction technology. When triggered its trigger output pin will switch from (LOW) 0V to high (3.3V) for ~2 to 3 seconds before returning to its LOW state. It has a maximum 7 meter (~21 feet) detection distance with adjustable delay time and sensitivity. The detector is not affected by its surroundings, and can operate through glass and other obstructions, providing better performance than traditional infrared (PIR) detectors. It is perfect for DIY microwave motion sensor light switch, security systems, human sensor toys, etc.

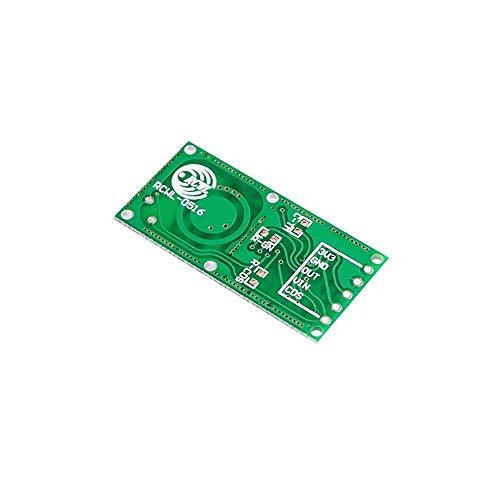

The component side of the board is the main detection side and should face the detection area for maximum sensitivity, however, it will also detect from the back side at lower sensitivity. Do not place metal objects within 1 cm of the antenna.
Specifications Operating Voltage: 4V - 28V, 5V - 12V recommended Operating Current: 2.8mA (typical); 3mA (max) Maximum Detection Distance: ~7m Transmitting Power: 20mW (typical); 30mW (max) Output Control Low Level: 0V Output Control High Level: 3.3V Operating Temperature: -20~80 C Storage Temperature: -40~100 C Dimensions: 35mm x 17mm x 3mm
Package Includes:
1x RCWL-0516 Microwave Doppler Radar Sensor Motion Detector Module Board
Header connectors
Printed operating instructions
