Description
- Bundle includes: 2 Rockford Fosgate P1S4-12 12 Subwoofers- SVC (4-Ohm), 250 Watts Rms, 500 Watts Peak, and 2 Rockford Fosgate P1G-12 12 Stamped Mesh Grille Inserts
- P1S4-12 - Linear spider with embedded 16 AWG tinsel leads
- P1S4-12 - High-temp voice coil with spun-laced Nomex re-inforcement collar
- P1G-12 - Inserts snugly into Gen-3 P1 trim rings.
- P1G-12 - Protects against surround and cone damage.

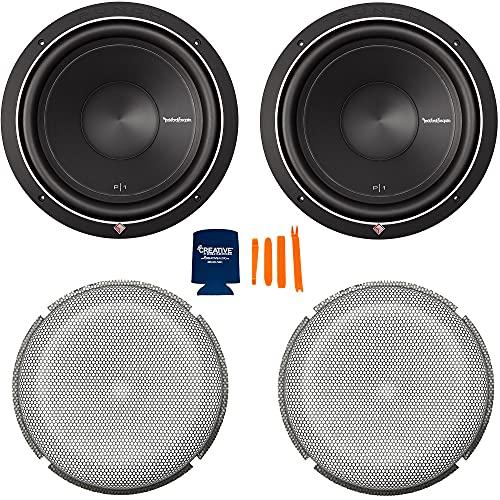

Rockford Fosgate 2 P1S4-12 Punch P1 12" 4-Ohm Subwoofers and 2 P1G-12 Stamped Grille Insert - This bundle includes 2 Rockford Fosgate P1S4-12 12 Subwoofer- SVC (4-Ohm), 250 Watts Rms, 500 Watts Peak, 2 Rockford Fosgate P1G-12 12 Stamped Mesh Grille Insert, a pry kit, and a Creative Audio coozy.
Rockford Fosgate P1S4-12 12 Subwoofer- SVC (4-Ohm), 250 Watts Rms, 500 Watts Peak
Specifications
Size: 12"
Subwoofer Type: Standard
Nominal Impedance: 4-Ohm
Power Handling (Watts RMS)250 Watts RMS, 500 Watts Max
Magnet Weight (oz): 45 oz. (1.28 kg.)
Voice Coil Diameter: 2.0" (51.6 mm)
Speaker Connector: Dual 10 AWG compression
Voice Coil Type: Single Voice Coil
Le (mH): 3.01
Fs (Hz): 25
Qts: 0.55
Qes: 0.56
Qms: 3.40
Xmax (mm): 9.0
Vas (Liters): 88.3
Re (Ohms): 3.6
Sd (cm2): 548
SPL (dB @ 1w/1m): 86
SPL (dB @ 2.8v/1m): 89
Cutout Diameter: 11.22 in. (285 mm)
Mounting Depth: 6.0 in. (152.4 mm)
Woofer Displacement: 0.081 cu. ft. (2.3 Liters)
Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
Shipping Weight: 11.7 Lbs. (5.3 kg)
Rockford Fosgate P1G-12 12 Stamped Mesh Grille Insert
Stamped steel grille insert for select Rockford Fosgate 12" Punch P1 subwoofers. Requires trim ring originally included with subwoofer to hold grille in place. Made from stamped metal, this black grille will protect your 12" P1 subwoofers from the brutal environment of your trunk. Keeps your golf clubs, softball bats, hockey sticks or even baby strollers away from your prized Rockford Fosgate subwoofers. Simply remove the existing trim ring from your woofer, insert the mesh grille, and re-secure the trim ring.
Features:
Inserts snugly into Gen-3 P1 trim rings.
Protects against surround and cone damage.
Sized to fit Gen-3 P1 woofers.
Stamped mesh grille insert
