Description
- 24mm focal length; maximum aperture f/3.5
- angle of view: 83.5 degrees on full frame and 59.9 degrees on APS-C
- Construction: 16 elements in 11 groups with 2 aspherical lenses
- Maximum tilt amount of 8.5, Maximum shift amount of 12mm; 90 right and left mount rotation with click stops for each 30 step; Manual focus
- Constructed for full frame cameras but can also work on APS-C; Takes 82mm Filter Size

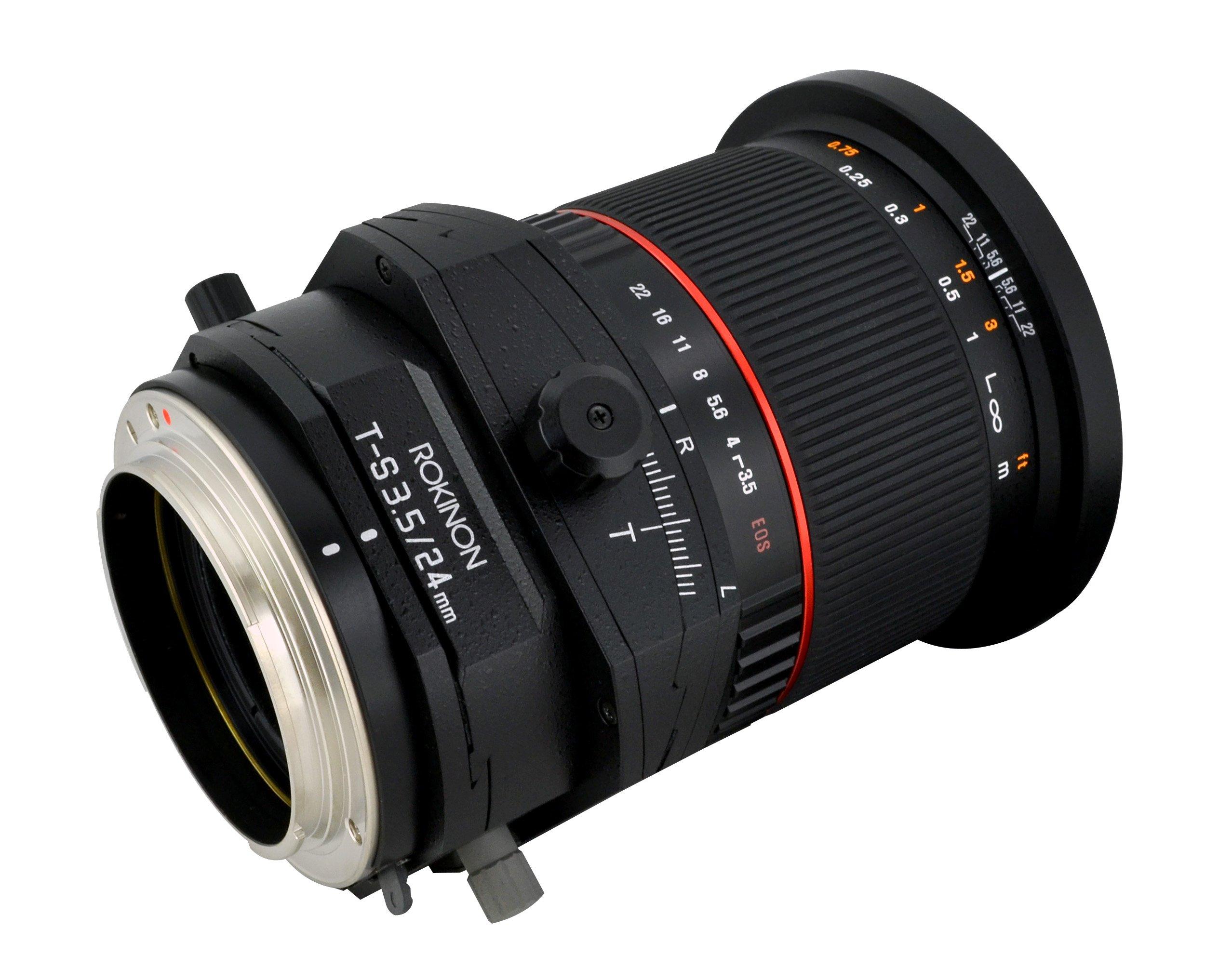

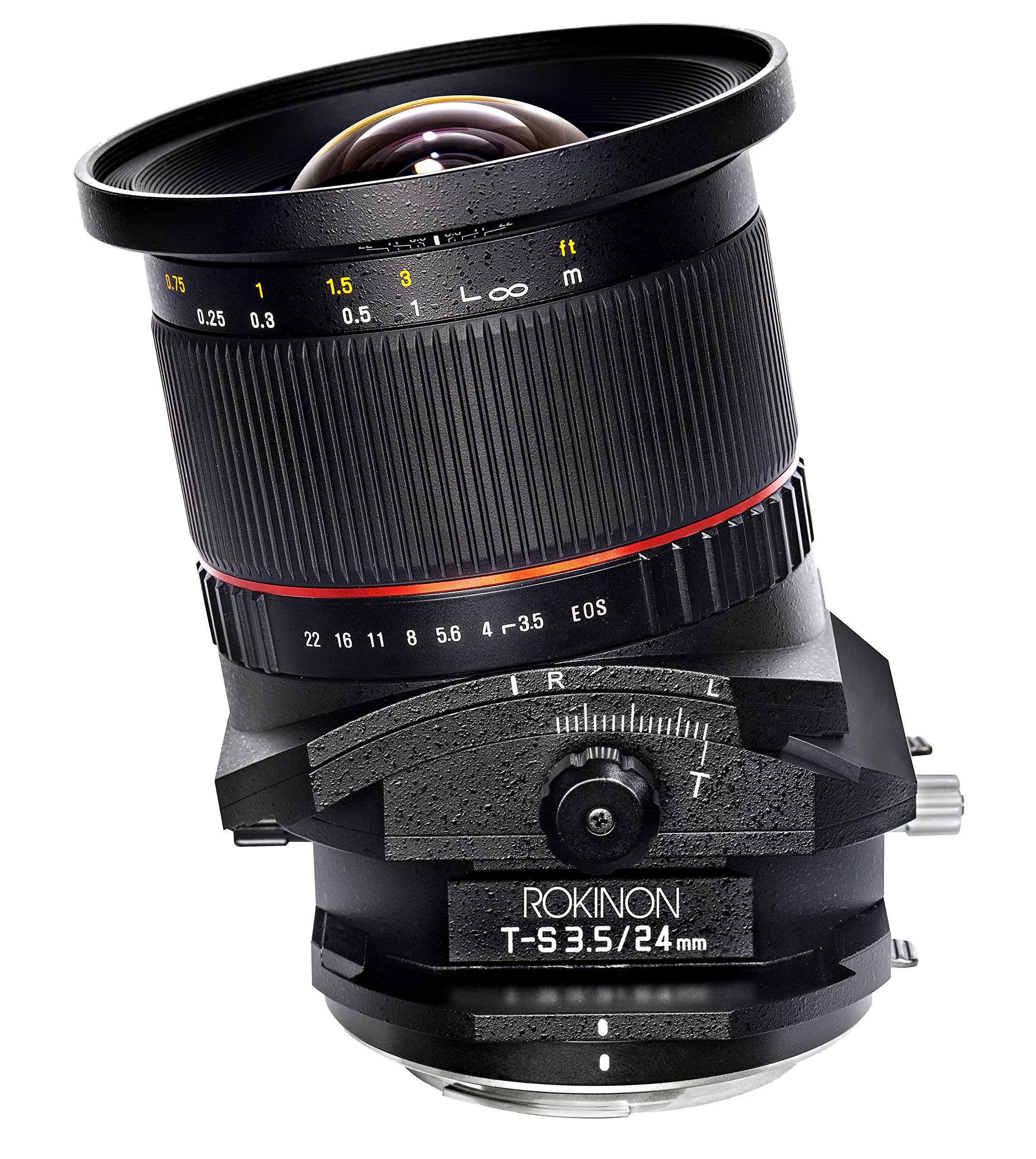

The Rokinon TSL 24mm F3.5 ED AS UMC is a wide-angle, full-frame lens fitted with the perspective control and tilt-shift functions. Similar to the tilt and swing movements of a view camera, a tilt-shift lens allows the user to control perspective and correct convergence of lines within the frame, which can be especially useful in architecture, landscape and product photography. The optical tilt mechanisms enable precise control of depth of field along with perspective control. It is compatible with both digital and film formats with an angle of view of 83.5 and on an APS-C size sensor has an angle of view of 59.9 and focal length equivalent of 36mm (Canon APS-C: 38.4mm/ 56.9). The tilt-shift function on the 24mm f/3.5 lens allows adjustment of the focal plane by an angle of +/-8.5 and enables parallel shift of the optical axis by +/-12mm. The Mount Rotation Lever enables the Tilt and Shift Sections as a combined unit to be rotated RIGHT up to 90 degrees (with 30 degree adjustment). The Tilt Rotation Lever enables the Tilt section to independently rotate LEFT by 90 degrees (with 30 degree adjustment). The lens is comprised of 16 elements in 11 groups, including two Aspherical elements and two Extra Low Dispersion (ED) elements, which reduce aberrations and provide sharp details and accurate color separation. Multi-layered, anti-reflective UMC coating on each lens element provides even light transmission while minimizing flares and ghosting.
