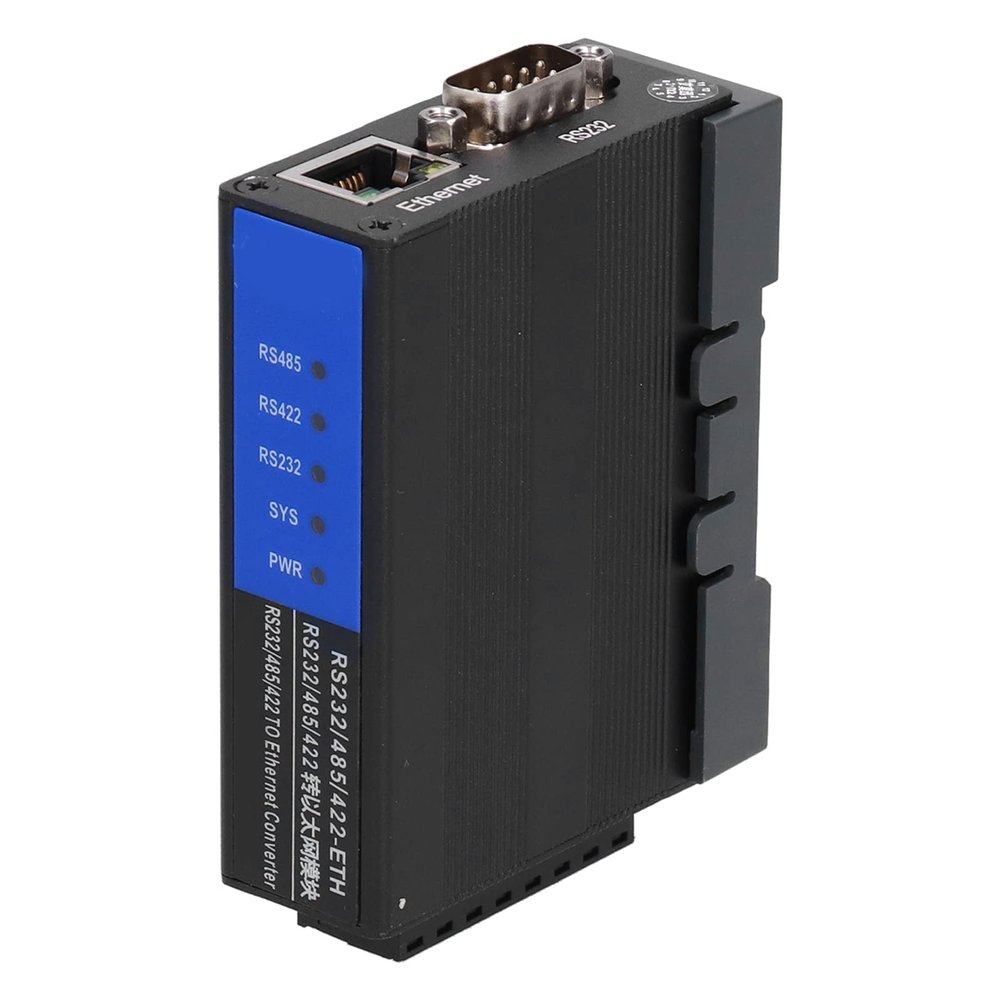

RS232 RS485 RS422 to Ethernet Serial Device Server Industrial Module for Data Communication, Supports Transmission and Web Configuration, DC 9V to 24V Operating Voltage

Description

• Protocol Conversion: This industrial module facilitates data communication between RS232 RS485 RS422 interfaces and Ethernet networks to bridge serial devices.
• Transmission: Features independent to RS485 transparent transmission where the module functions as a server for streamlined data exchange.
• Web Based Management: Communication parameters are adjustable through a web interface to ensure the device meets specific network and system requirements.
• Hardware Interface: Equipped with five LED indicators and integrated wiring terminals for monitoring and can be used to replace old or damaged relay modules.
• Industrial Applications: The small and light weight unit operates on DC 9V to 24V for use in building automation, traffic control, and railway infrastructure.

Item Type: RS232/485/422 to Ethernet Serial Device Server
Material: Aluminum alloy
Purpose: Building automation, security, traffic control, electricity, factories, mines, railways
COM1 (RS485 communication parameters)
Support Function:
485 port and network port transparent transmission
Interface Type: RS485, screw terminal
Baud Rate: 9600-115200 (default baud rate is 9600)
Communication Format: 8-bit data, 1-bit stop, no parity (configurable)
Transmission Distance: Approx. 1200m / 3937ft
COM2 (RS422 communication parameters)
Support Function: to RS422 transparent transmission
Interface Type: RS485, screw terminal
Baud Rate: 9600-115200 (default baud rate is 9600)
Communication Format: Default: 8-bit data, 1-bit stop, no parity (configurable)
Transmission Distance: Approx. 1200m / 3937ft, when the baud rate is 9600
COM3 (RS232 communication parameters)
Support Function: to RS232 transparent transmission
Interface Type: RS232, DB9 terminal male
Baud Rate: 9600-115200 (default baud rate is 9600)
Communication Format: 8-bit data, 1-bit stop, no parity (configurable)
Ethernet Interface Parameters:
Interface Form: RJ45
Communication Protocol: ; HTTP;
Speed: 10Mbps; full duplex
P Parameters:
Default IP: 192.168.1.15
Default Port: 502
Power Parameters:
Working Voltage: DC 9V-24V; with anti-reverse connection protection
Power Consumption: 0.5W-2W
Working Environment:
Working Temperature: -20-70
Storage Temperature: -40-85
Installation Method: Rail

Package List
1 x

RS232/485/422 to Ethernet Serial Device Server
Note:
1. Do not place the product in an environment that is too corrosive, humid and high temperature!
2. Please supply power according to the operating voltage, using other voltages may cause fire and product damage!
