Description
- SATA (Serial ATA): A standard interface for connecting storage devices like hard drives and SSDs to a computer's motherboard. SATA offers relatively high-speed data transfer, commonly used in most consumer-grade hardware.
- M.2 SATA SSDs use the SATA interface and provide speeds similar to traditional 2.5-inch SATA SSDs.
- M.2 PCIe/NVMe SSDs use the PCI Express interface, offering significantly faster data transfer rates compared to SATA-based drives.
- Mini SAS SFF-8643: This is a compact connector for Serial Attached SCSI (SAS) cables, used in enterprise environments for high-performance storage solutions.
- Micro SATA Cables PN# SFF-1016-M2

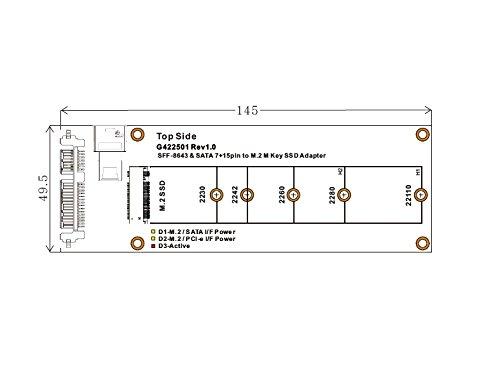

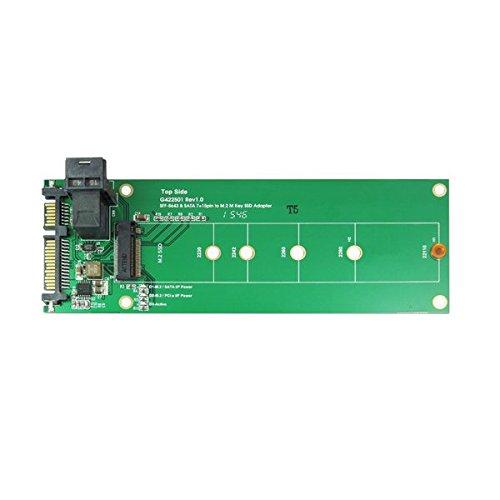

SATA and Mini SAS SFF-8643 to M.2 SATA PCI-e SSD Adapter Product Description: M.2 (PCIe Interface) to Mini SAS HD(SFF-8643)PCI-e convert M.2 (SATA Interface) to SATA III/6Gbps convert Build in Mini SAS HD(SFF-8643) Female connector Build in SATA 7+15pin connector Build in M.2 (NGFF) M-key Female connector D1 on indicates M.2 / SATA III device power ready D2 on indicates M.2 / PCI-e 4 Lanes device power ready D3 indicates M.2 SSD active status Specifications: NVM ExpressTM 1.0 Support SATA Reversion 3.2 PCI Express M.2 Spec. Revision 0.9, Version 1.0 PCI Express Base Specification Rev 3.0 PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0 SFF-8643 Specification Rev 3.5 Power: PWM synchronous buck converter Power IC for M.2 SSD 4A maximum output current Output overcurrent protection (OCP) Over/Under Voltage Protection Under voltage lock out protection (UVLO) Thermal Shutdown Supports M.2 Form Factor: Type 22110-D2-B-M 110mm(L) X 22mm(W) Type 2280D2-B-M : 80mm(L) X 22mm(W) Type 2260D2-B-M : 60mm(L) X 22mm(W) Type 2242D2-B-M : 42mm(L) X 22mm(W) Type 2230D2-B-M : 30mm(L) X 22mm(W) Micro SATA Cables PN # SFF-1016-M2
