Description
- Interface Standard: SATA III is the third generation of the SATA interface, capable of transferring data at speeds up to 6 Gbps (600 MB/s).
- Form Factor: A smaller form of the SATA interface designed primarily for SSDs.
- Connection: mSATA drives connect directly to the motherboard via a mini PCIe slot.
- Interface Options: M.2 can support SATA III, PCIe (NVMe), or both. The speed can vary significantly depending on whether it's using SATA III (up to 6 Gbps) or PCIe (up to 32 Gbps with PCIe 3.0 x4).
- Micro SATA Cables PN# S3-1331-CA

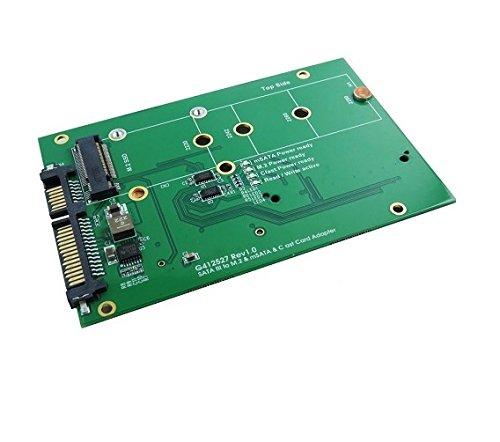

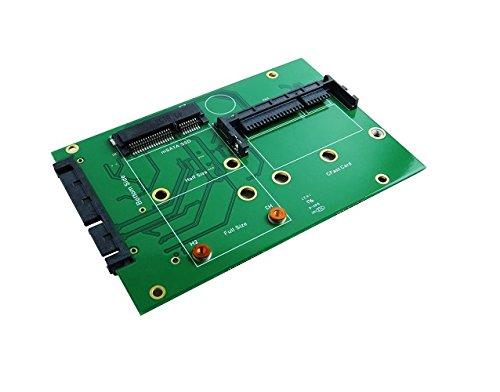

SATA III to mSATA & M.2 SSD & CFast Card Adapter Specifications : M.2 SATA to SATA convert mSATA to SATA convert CFast to SATA convert Build in M.2 B-key connector Build in Mini PCIe connector Build in CFast connector PWM synchronous buck converter Power IC 4A maximum output current Short circuit protection In-rush current suppression Thermal shutdown protection ESD HBM (Human Body Mode)/2KV LED1 Green LED on indicates mSATA power ready LED2 Green LED on indicates M.2 SATA power ready LED3 Green LED on indicates CFast power ready LED2 RED LED Blinking indicates M.2 or mSATA SSD active status M.2 SSD Form Factor Support : Supports M.2 Socket SSD type 2230, type 2242, type 2260, type 2280 Micro SATA Cables PN # S3-1331-CA
