Description
- WS-6960 is a DVB-S/S2 and MPEG-2/4 H.265(8 Bit) compliant handheld satellite meter. With its compact size, light weight, intuitive users interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service to residential homes or multi-dwelling units.
- WS-6960 has 4.3 Inch High Definition TFT LCD Screen, Fully DVB-S/DVB-S2, MPEG-2/MPEG4 compliant,Support H.265(8 Bit) Hardware decoding
- Digital meter for signal strength and quality, Supports scan of Auto,Blind,Manual or NIT, Sound and Light Alarm for Locking Signal
- Auto Calculate Angle of AZ ,EL; Supports DISEQC 1.0/1.1/1.2, 0/22khz Tone; Speaker Integrated; Support both AV out and AV in; LNB short protect
- 7.4V/3000mAh Li-ion Battery Included; Software upgrade via USB port; Easy to carry
Feature
4.3 Inch High Definition TFT LCD Screen
Fully DVB-S/DVB-S2, MPEG-2/MPEG4 compliant
MPEG-2 / H.264 Hardware decoding
Input Frequency 950~2150MHz
Input Signal Level -65~ -25dBm
Input Impedance 75
Constellation analyzer
Measurement Type: signal strength,quality; BER; S/N;PWR;MER
Search Mode: Auto,Blind,Manual,NIT
Sound and Light Alarm for Locking Signal
Auto Calculate Angle of AZ ,EL
Support DISEQC 1.0,1.1,1.2 and 22khz Tone
LNB Power Supply:18/13V(IMax 400mA)
Support both AV out and AV in
Speaker Integrated
7.4V/3000mAh Li-Ion Battery Included
Max Operating Time:2 hours
12V/1.5A DC Adapter
Specification:
Transmission Standards: Fully DVB-S/DVB-S2
Satellite Input/ Demodulation
Connector Type: F Type
Input Frequency: 950MHz to 2150 MHz
Signal Input Level: -65dBm ~ 25dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, Imax 400mA
Demodulation Type: QPSK,8PSK
Symbol Type: 2

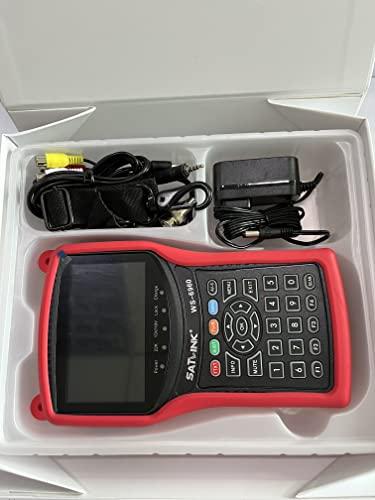

Size (W x D x H): 125 x 205 x 45mm Net Weight: 0.66 KG Package included:
1 x WS-6960 Digital Satellite Meter
1 x AV cable
1 x Power Adapter
1 x Car charger cable
1 x Silicone case
1 x User Manual (CD)
