Description
- Please send me the demand note and deliver the goods according to your requirements.
Features:

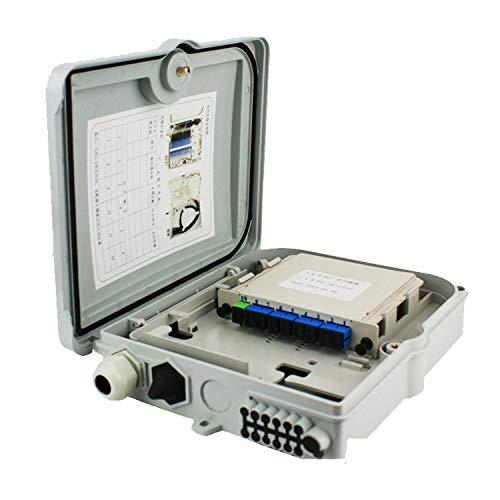

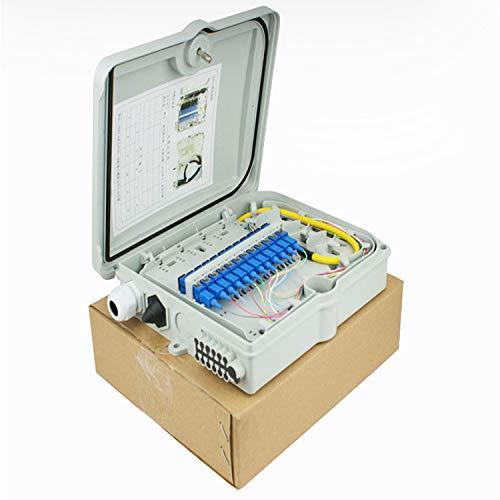

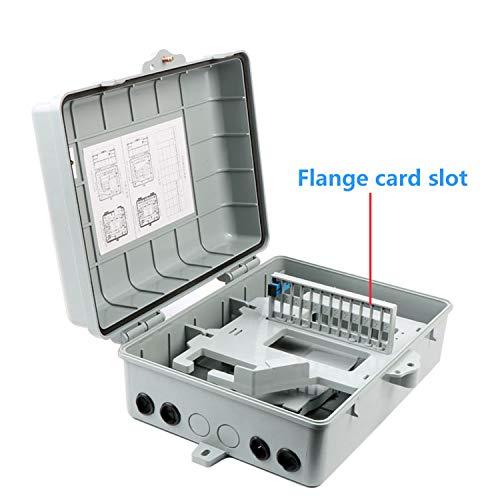

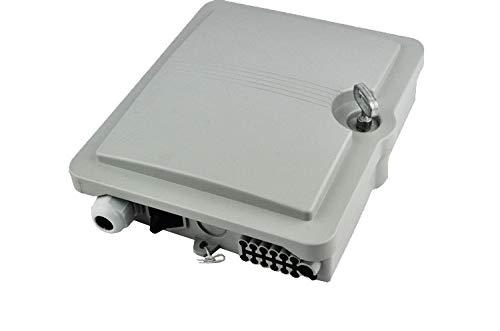

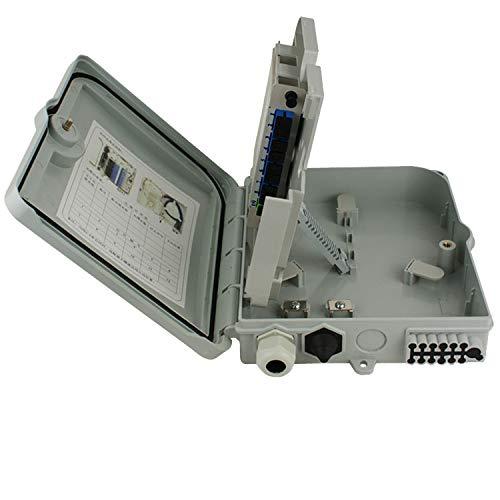

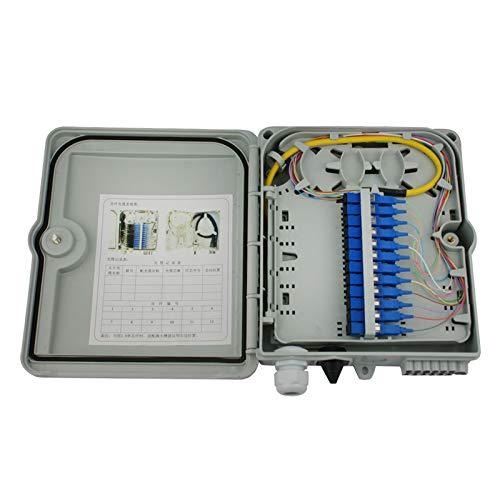

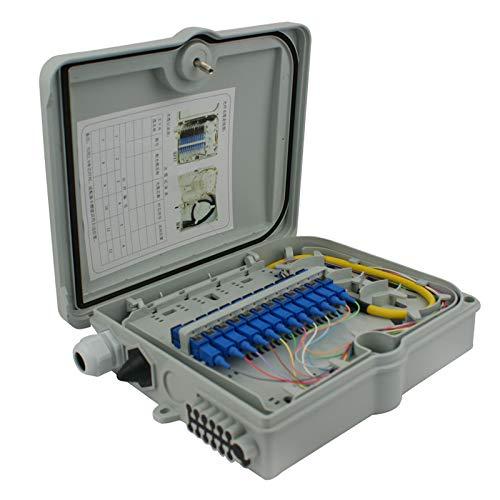

1. Cold-rolled steel made, electrostatic spraying, durable, fine appearance;
2. Installed with one 1x48 or two 2x24 PLC splitter cassette;
3. FTTH mini fiber optical distribution case, including 2 pcs tray with 12 pcs of heat shrinkable protection sleeves, totally 48 sleeves, with SC or LC adaptor panel, max up to 4 panels;
4. with 7 let/out fiber ports,with wall mounting bracket.
5. Outdoor box can be open 180, free operation space;
6. Resonable fiber path, clear sign;
7. Good cable fixing grounding device and indoor covered wire points;
8. Capacity is optional from 4 cores to 48 cores;
8. Outlet ports leading fiber optic cable spliced with pigtail or PLC splitter, outlet ports lead covered wires connect with quick connector.
Application:
FTTH access network
CATV Networks
Telecommunication Networks
Data communications Networks
Operation conditions:
Temperatures:-40 -- 60
Humidity:93% at 40
Air Pressure:62kPa 101kPa
