Description
- Lock status sensor allows for monitoring whether the lock is engaged
- Door status sensor allows for monitoring whether the door is closed completely
- Compatible with existing keypads or readers
- 220-lb (100kg) Holding force
- Low current draw: 69mA@12/24 VDC (standby)/165mA@12/24 VDC (active)

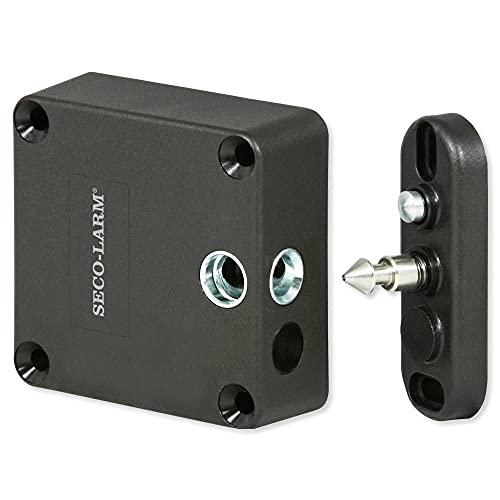

Seco-Larm CL-210M-U3BQ Motorized Cabinet Lock; Electronically Secure Lockers, Cabinets, Cases, and Drawers; Fail-secure Operation, Various Mounting Positions; 12~28 VAC/VDC Operating Voltage
The CL-210M-U3BQ from Seco-Larm is a motorized cabinet lock provides security for lockers, cabinets, cases, and drawers. The built and door status sensors and fail-secure operation additional security. The Motorized Cabinet Lock's small size and compatibility with existing keypads or readers allow for various installations.
Key Features
- Electronically secure lockers, cabinets, cases, and drawers
- Lock status sensor allows for monitoring whether the lock is engaged
- Door status sensor allows for monitoring whether the door is closed completely
- Compatible with existing keypads or readers
- Spring feature gently pushes door open
- Fail-secure operation
- Various mounting positions
- 12~28 VAC/VDC Operating voltage
- Low current draw: 69mA@12/24 VDC (standby)/165mA@12/24 VDC (active)
- 220-lb (100kg) Holding force
- Two locking orientations
Specifications
- Operation: Fail-Secure
- Operating voltage: 12~28 VAC/VDC
- Current draw: Standby 69mA@12/24 VDC; Active 165mA@12/24 VDC
- Lock status output: 1A@125VAC
- Door status output: 1A@125VAC
- Holding force: 220-lb (100kg)
- Relock time delay: 2~5 seconds
- Case: Polyamide
- Operating humidity: 0~95% non-condensing
- Operating temperature: 14~113F (-10~45C)
- Dimensions: Lock body 2-3/8"x2-3/8"x7/8" (60x60x22 mm)/Rosette 13/16"x2-3/8"x1-1/16" (20x60x27 mm)
- Weight: 3-oz (93g)
