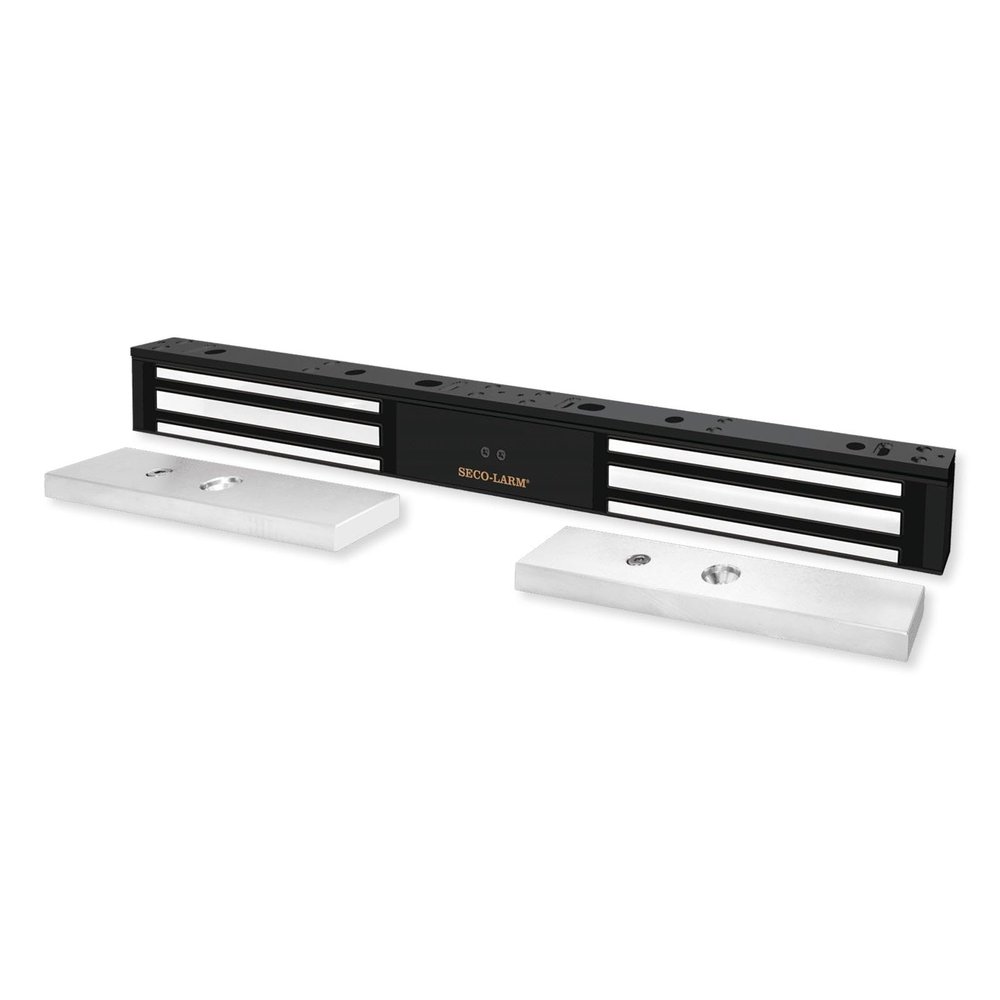

Seco-Larm E-941DB-600PQ Enforcer Double Door Electromagnetic Lock with Bond Sensor, 600 Lbs.

Description

• Secures a door with 600 pounds (272kg) of holding force
• Built-in status LEDs and bond sensor with 3A@12VDC dry relay output
• Reliable security with MOV surge protection
• Easy wiring with detachable faceplate and no residual magnetism once deactivated
• All mounting hardware included and powered by 12 or 24 VDC

Secure your door from forceful openings with the Seco-Larm Enforcer Double Door Electromagnetic Lock with Bond Sensor, 600 Lbs, Black. This electromagnetic lock uses 600 pounds (272kg) of holding force to safely keep double doors in place within a standard indoor application. This 600-lb magnetic door lock is housed in anodized aluminum (black finish) and comes with various features to monitor the status of the door including a built-in bond sensor with 3A dry relay output and built-in color status LEDs. It also features MOV surge protection to ensure long-term reliability and includes a detachable faceplate, an adjustable mounting bracket, and all the mounting hardware needed to make installation quick and easy. Secures a door with 600 pounds (272kg) of holding force Built-in status LEDs and bond sensor with 3A@12VDC dry relay output Reliable security with MOV surge protection Easy wiring with detachable faceplate and no residual magnetism once deactivated All mounting hardware included and powered by 12 or 24 VDC
The Seco-Larm Enforcer Electromagnetic Lock for double doors uses 600 pounds (for each door) of holding force to secure a door against unauthorized entry. An extremely strong magnetic field is created every time power is applied to the electromagnetic lock, which is attracted to the steel armature plate that's mounted on the secure door. The only way to open the secure door and allow it to function normally is to deactivate the lock.

Contents
Electromagnet Mounting Plate (2) Door Spacer (4) Steel Washers (2) Rubber Washer (8) Long Self-Tapping Screws (4) Short Self-Tapping Screws (2) Sexnut Bolt (4) Guide Pins (2) Door Spacer (4) Hex-head Mounting Screws (4) Tamper Caps Hex Wrench (2) Armature Plate (2) Armature Screw Manual

Technical Details
Manufacturer Part #: E-941DB-600PQ UPC: 676544021971 Color: Black Holding Force: 600-lb (272kg) Operating Voltage: 12/24 VDC (selectable) Current Draw: 500mA@12VDC, 250mA@24VDC Bond Sensor Relay: Yes Status LED: Yes Operating Temperature: 32~120 F (0~49 C) Electromagnetic Dimensions: 19-11/16"x1-5/8"x1-1/16" (185x38x12 mm) Armature Dimensions: 7-1/4"x1-1/2"x1/2" (185x38x12 mm) Destructive Attack: Level I Line Security: Level I Standby Power: Level I Endurance: Level IV Weight: 9-lb 6-oz (2kg) Certifications: UL294 Access Control System Units USA UL10C Positive Pressure Fire Test USA UL10B Fire Test of Door Assemblies USA ULC-S104 Fire Test of Door Assemblies Canada Warranty: Limited Lifetime
