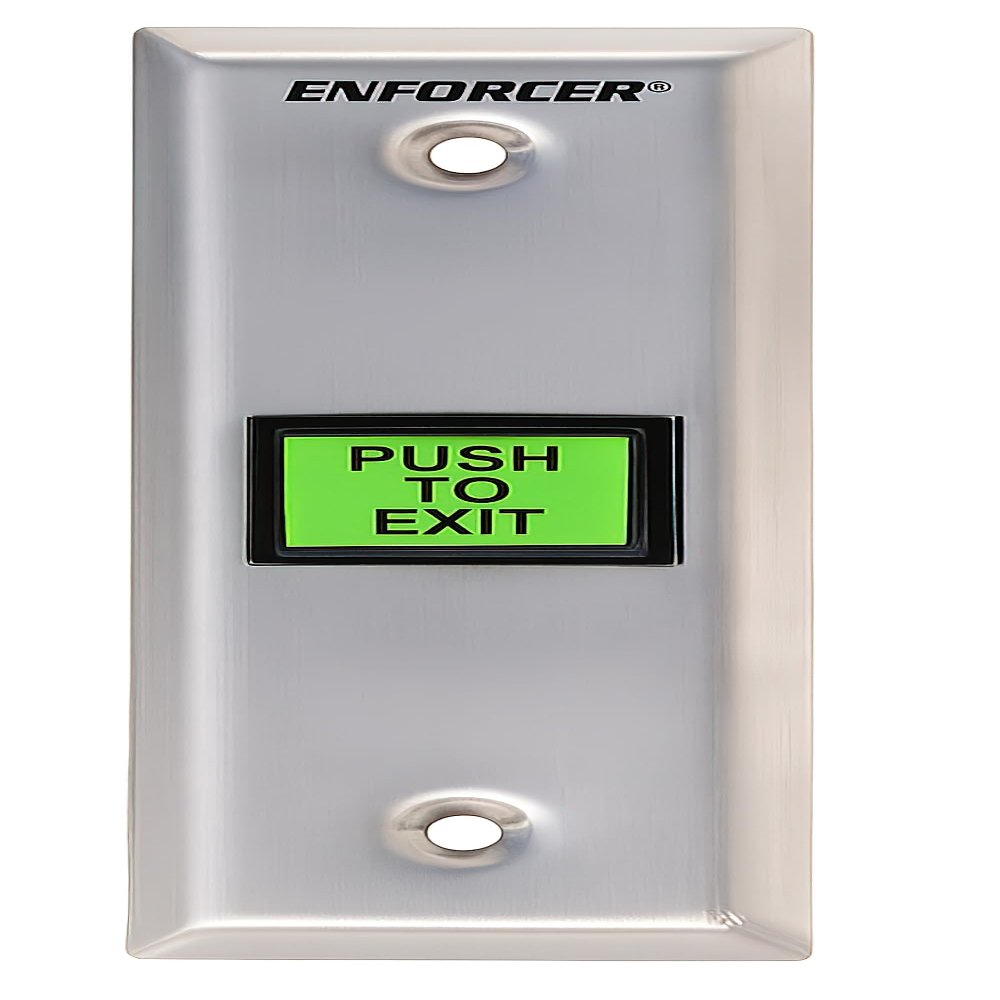

Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated with Timer (SD-7103GC-PTQ)

Description

• Built-in timer, 1 to 180 seconds with buzzer output for audio status
• Both English and Spanish messages included: "PUSH TO EXIT," "PRESIONE PARA SALIR"
• Long-life green LED momentary button
• Rubber-sealed switch to prevent liquid penetration
• Installation hardware included

The Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated with Built-In Timer Plate is illuminated with a "PUSH TO EXIT" caption that can be easily changed to "PRESIONE PARA SALIR" in the field. It includes a built-in timer that allows you to extend activation time up to 180 seconds. The slimline plate features a narrow design for easy installation on tight wall panels. Built-in timer, 1 to 180 seconds with buzzer output for audio status Both English and Spanish messages included Long-life green LED momentary button Rubber-sealed switch to prevent liquid penetration Plastic terminal protector for dividing individual terminals

Contents
"PUSH TO EXIT" and "PRESIONE PARA SALIR" message plates (6) Wire leads with easy-to-attach spade lugs for fast installation Stainless-steel slimline plate 680 ohm resistor

Technical Details
Manufacturer Part #: SD-7103GC-PTQ UPC: 676544013198 Color: Green Wire Leads: 12-inch, AWG 18, color-coded Mechanical Lifetime: 2,000,000 operations Unit Dimensions: 4-1/2 x 2-3/4 x 1-3/4 inches (114 x 70 x 45mm) Button: N.O./N.C. contacts rated, DPST, 3 Amps at 24VDC Button Dimensions: 15/16 x 11/16 inches LED: 12/24 VAC/VDC, approx. 35,000-hour life Resistor: 680 ohms, 0.5W Plug-In Terminals: 6 Approved: CE and UL Warranty: 1 Year
